Display Waveform Data
Setting Input Parameters
Use the vertical controls to select waveforms, adjust the waveform vertical position and scale, and set input parameters.

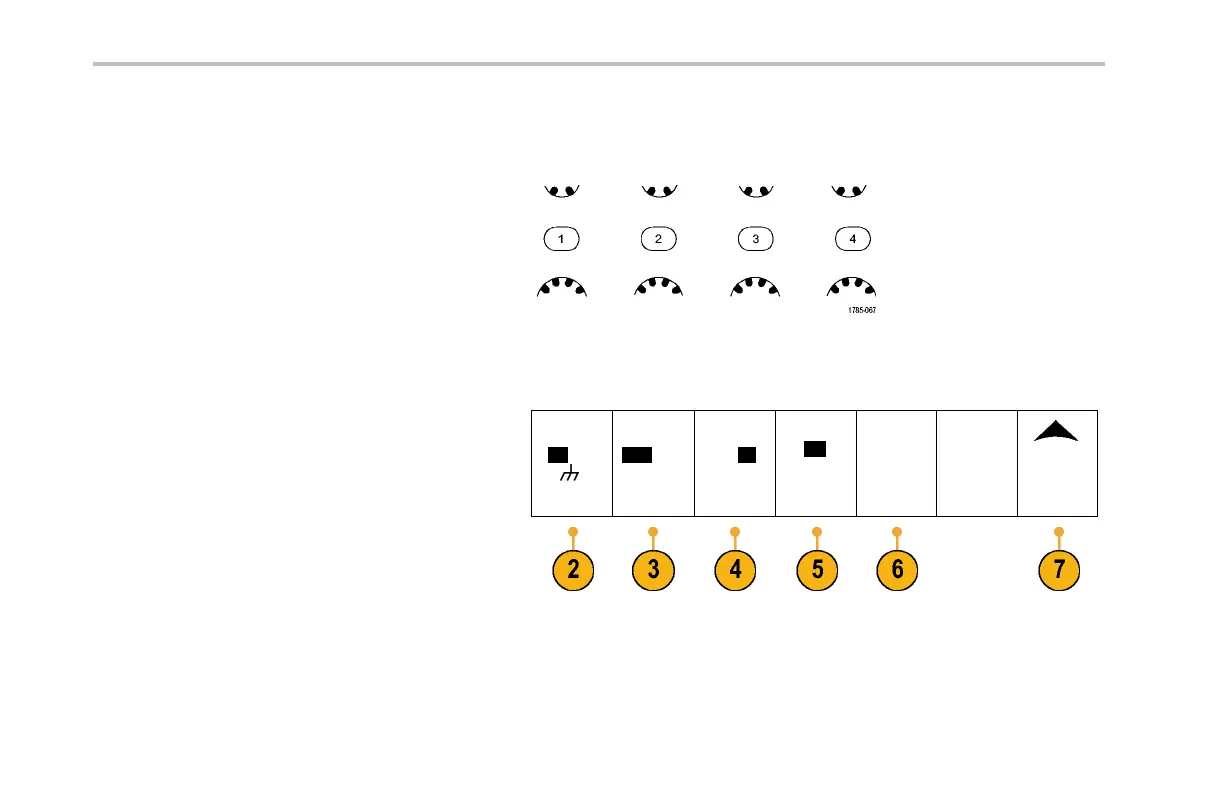

1. Push a channel menu button 1, 2, 3,or4 to
bring up the vertical menu for the designated
waveform. The vertical menu only affects the
selected waveform.
Pushing a channel button will also select or
cancel that waveform selection.
2. Push Coupling repeatedly to select the
coupling to use.
Use DC coupling to pass both AC a nd DC
components.
Coupling
DC|AC
Impedance
1MΩ|50Ω
Invert
On |
Off
Bandwidth
Full
(1) Label
More
Use AC coupling to block the DC component
and show only the AC signal.
Use Ground (GND) to d isp lay the reference
potential.
172 MSO4000 and DPO4000 Series Oscilloscopes User Manual
