Save and Recall In format ion
MTH for a math waveform
RF1, RF2, RF3, or RF4 for reference memory waveforms
ALL fo r a single spreadsheet file containing multiple channels when you select Save All Waveforms
NOTE. Only analog channels and wavefo rms derived from analog channels (such as math and reference) can be saved to an ISF
file. When saving all channels in ISF format, a grou p of files will be saved. Each will have the same value for XXXX, b ut the YYY
values will be set to the different channels that were turned on when the Save All Waveforms was performed.
For example, the first time you save a file, that file is named tek00000. The next time y ou save the same type of file, the file will
be named tek00001.
Editing file, directory, reference waveform, or instrument setup names. Give files descriptive names that you can
recognize at a later date. To edit fi le names, directory names, reference waveform and instrument setup labels:

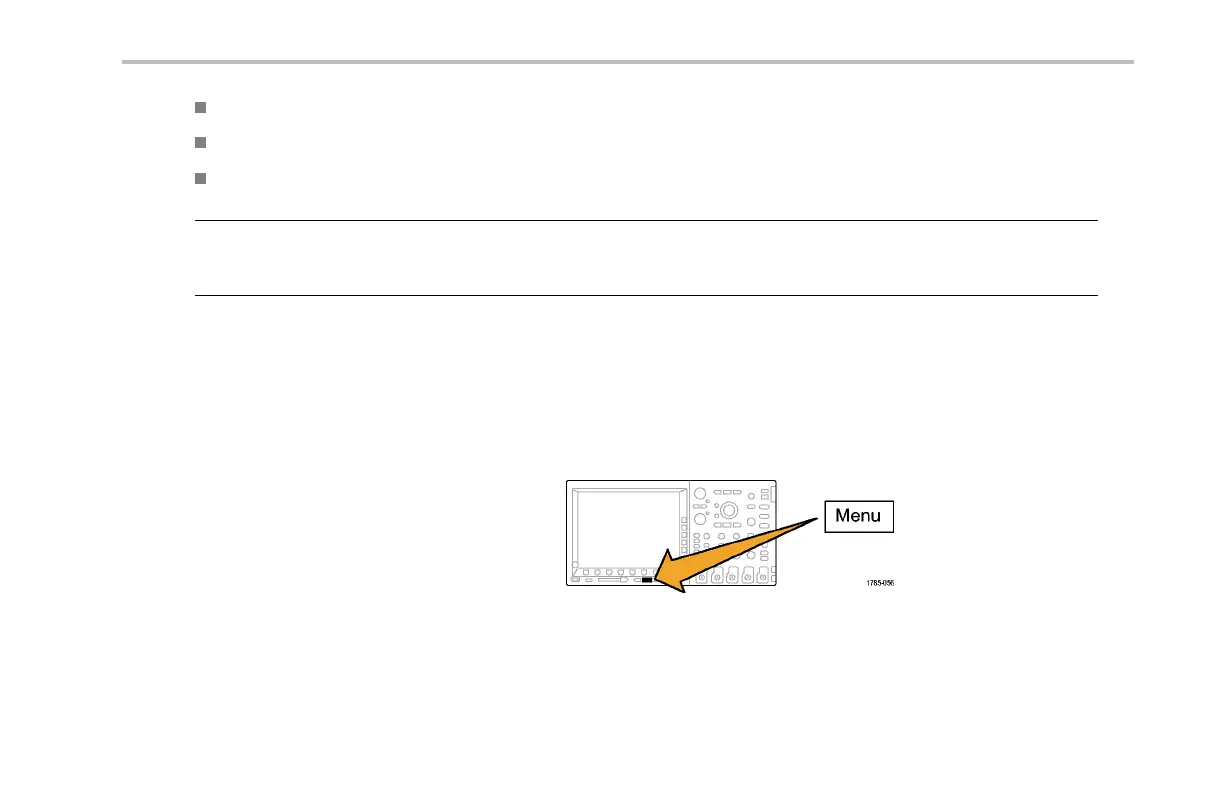

1. Push Save / Recall Menu.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 237
