Analyzing wavef
orms
Using math waveforms
Create math waveforms to support the analysis of your channel and reference waveforms. By combining and transforming
source waveforms and other data into math w aveforms, you can derive the data view that your application requires.
Use the following procedure for predefined math equations.

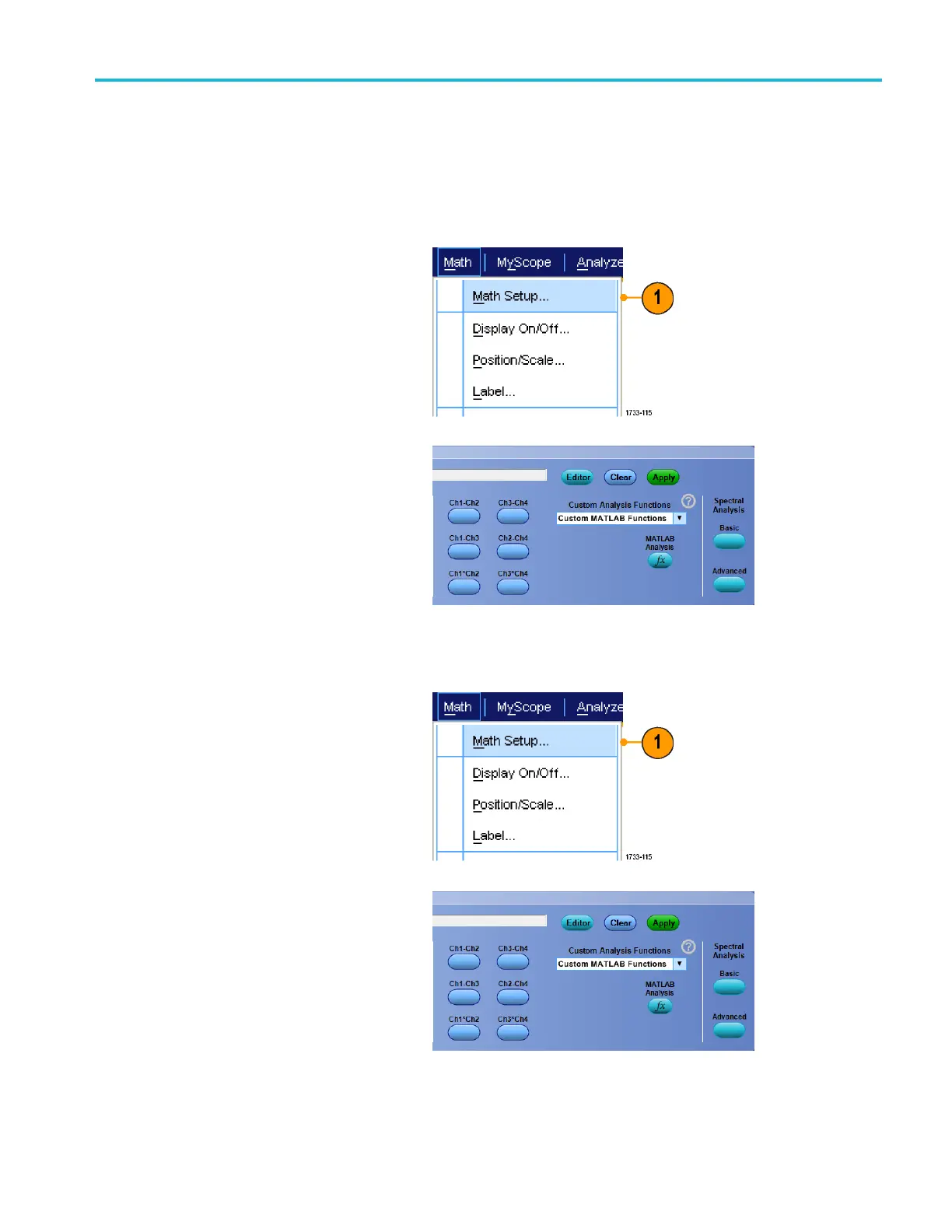

1. Select Math > Math Setup....
2. Choose one of the predefined math
equations.
Use the following procedure to build an advanced math waveform expression.
1. Select Math > Math Setup....
2. Click Editor.
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 129
To Next Page
