Analyzing Wavef
orms
Quick Tips
Use the Cursor Track Mode to set the cursors to move in tandem. Use the Cursor Independent mode to move the
cursors separately.
If you use the zoom graticule, you c an place a cursor directly on a specific waveform point to take precision
measurements.
You can also move cursors by clicking and dragging them to a new position.
You can also move cursors to the center of the display by pressing Move Cursors to Center.
You can select solid or dashed cursors.
Vertical cursors measure the time from the trigger point to the vertical cursor.

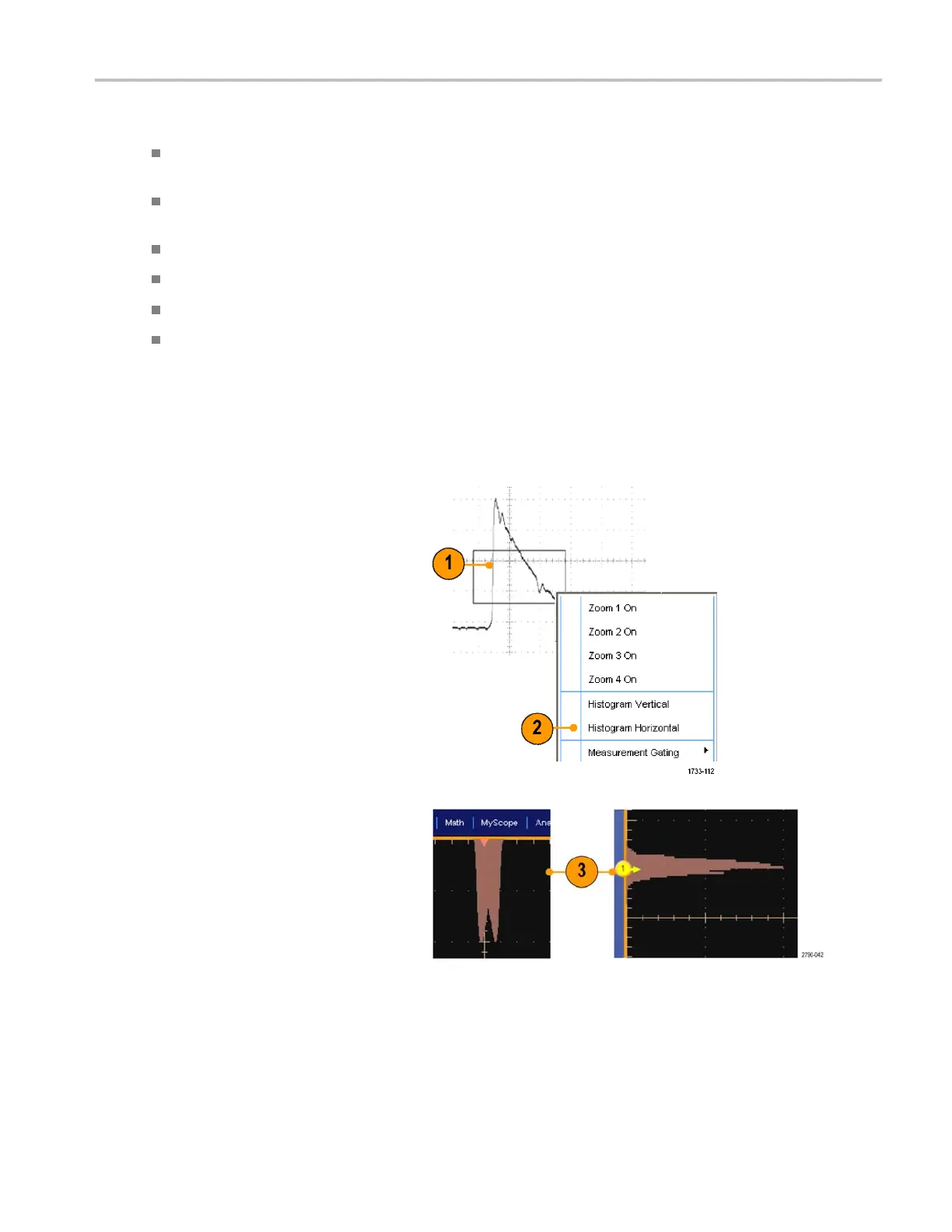

SettingUpaHistogram
You c an display either a vertical (voltage) or horizontal (time) histogram. Use histogram measurements to g et statistical
measurement data for a section of a waveform along one axis.
1. Click and
drag the pointer across the
segment of the waveform that you want
the histogram to cover. For example,
make the b
ox for a horizontal histogram
wider than it is tall.
2. Select Histogram Vertical or Histogram
Horizontal from the shortcut menu.
3. View t
he histogram at the top (for
horizontal histograms) or the left edge
(for vertical histograms) of the graticule.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 123
