Appendix
Optional Accessories
The following accessories can be ordered for your probe.
Accessory Tektronix part number
Ground Lead, Clip-on, 6 in
196-3198-xx
Ground Lead, Alligator, 12 in
196-3512-xx
MicroCKT Test Tip
206-0569-xx
Circuit Board Test Point/PCB Adapter
016-2016-xx
Compact Probe Tip Ckt Board Test Point
131-4210-xx
Wire, spool, 32 AWG
020-3045-xx
Replacing the Probe Tip
Order Tektronix part number 206-0610-xx for rigid tip replacement, or order part number 206-0611–xx for pogo pin
replacement.
Specifications

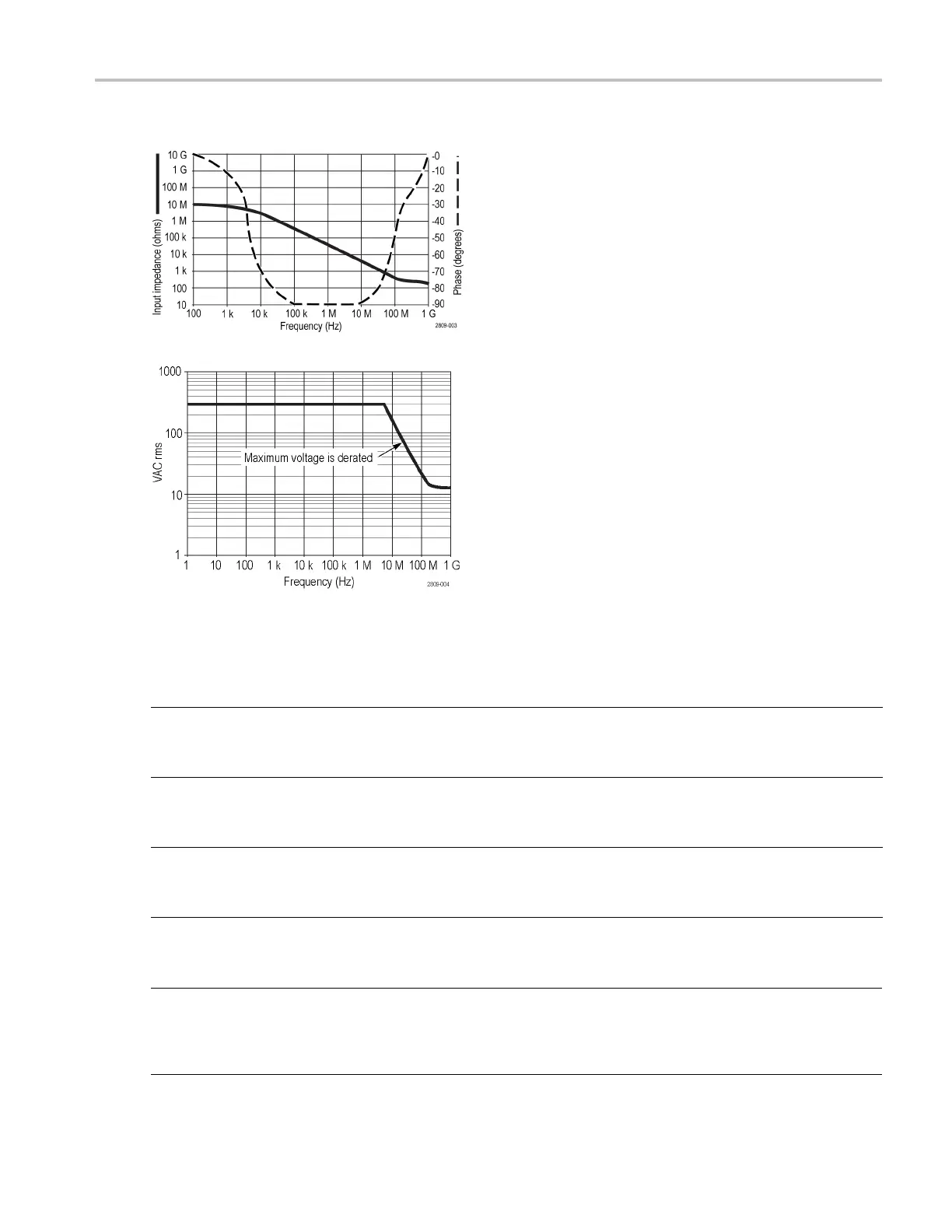

Table 1: Electrical and mechanical specifications
Characteristic TPP0500 TPP1000
Bandwidth (–3 dB)
500 MHz
1GHz
System rise time (typical)
<350 ps <700 ps
System input capacitance Rigid tip: 3.9 pF ±0.3 pf
Pogo pin tip: 5.1 pf ±0.5 pf
System attenuation accuracy 10:1 ±2.2%
Probe series resistance @DC 9.75 MΩ ±0.5%
System input resistance @ DC 10 MΩ ±2%
Propagation delay ~5.67 ns
Maximum input voltage
300 V
RMS
CAT II
Cable length
1.3m,±3cm
