Acquisition

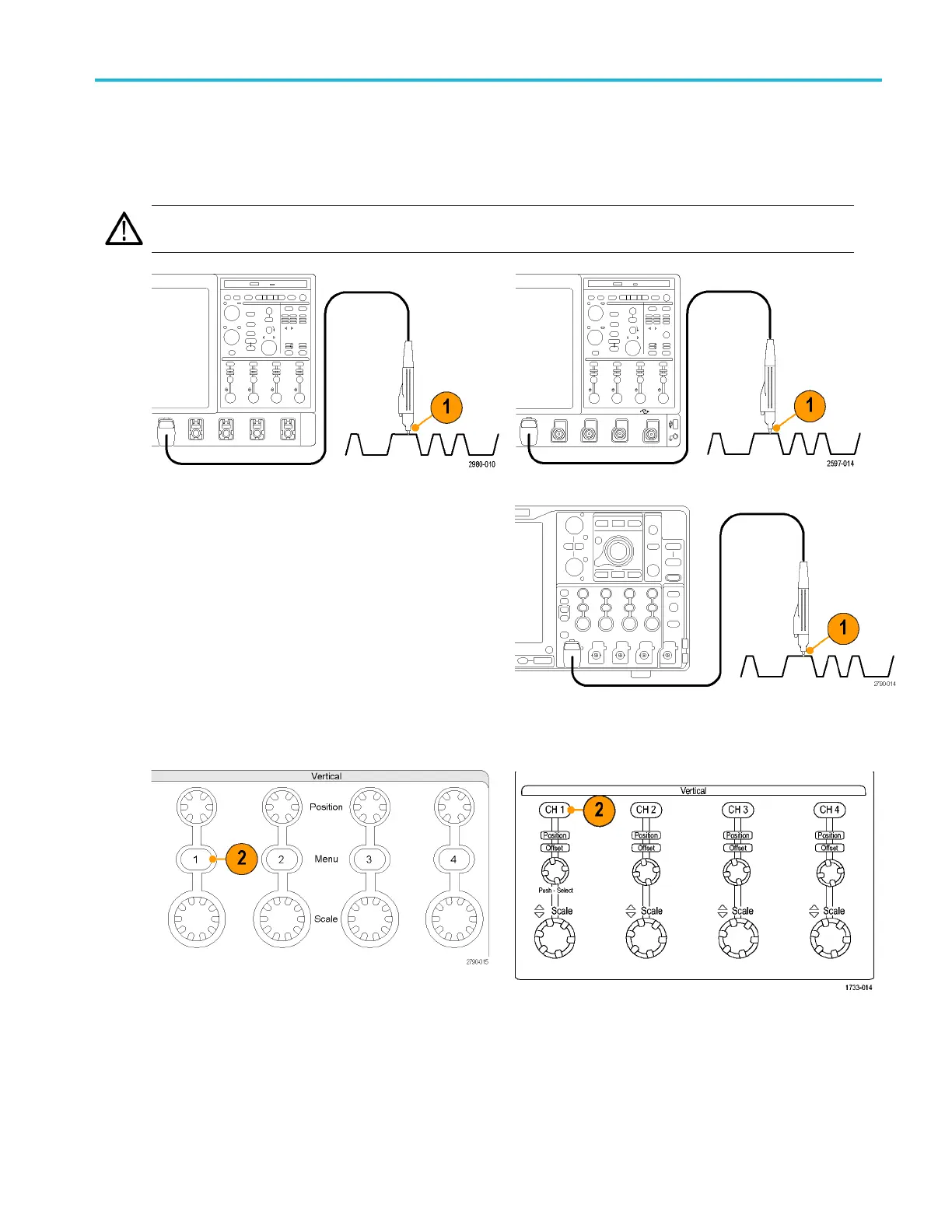

Setting u p analog signal input
Use front-panel buttons to set up your instrument to acquire the signal.
1. Connect the probe to the input signal source.
CAUTION. To prevent damage to the instrument, always wear an antistatic wrist strap w hen making connections to the
instrument and observe the maximum input voltage ratings for input connectors.
MSO/DPO70000DX and MSO/DPO7 0000C Series DPO7000C Series
MSO5000B and DPO5000B S eries
2. Select the input channel by pushing the front-panel buttons to toggle the channels on and off.
MSO5000B and DPO5000B Series
MSO/DPO70000DX, MSO/DPO70000C, and DPO7000C Series
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 33
