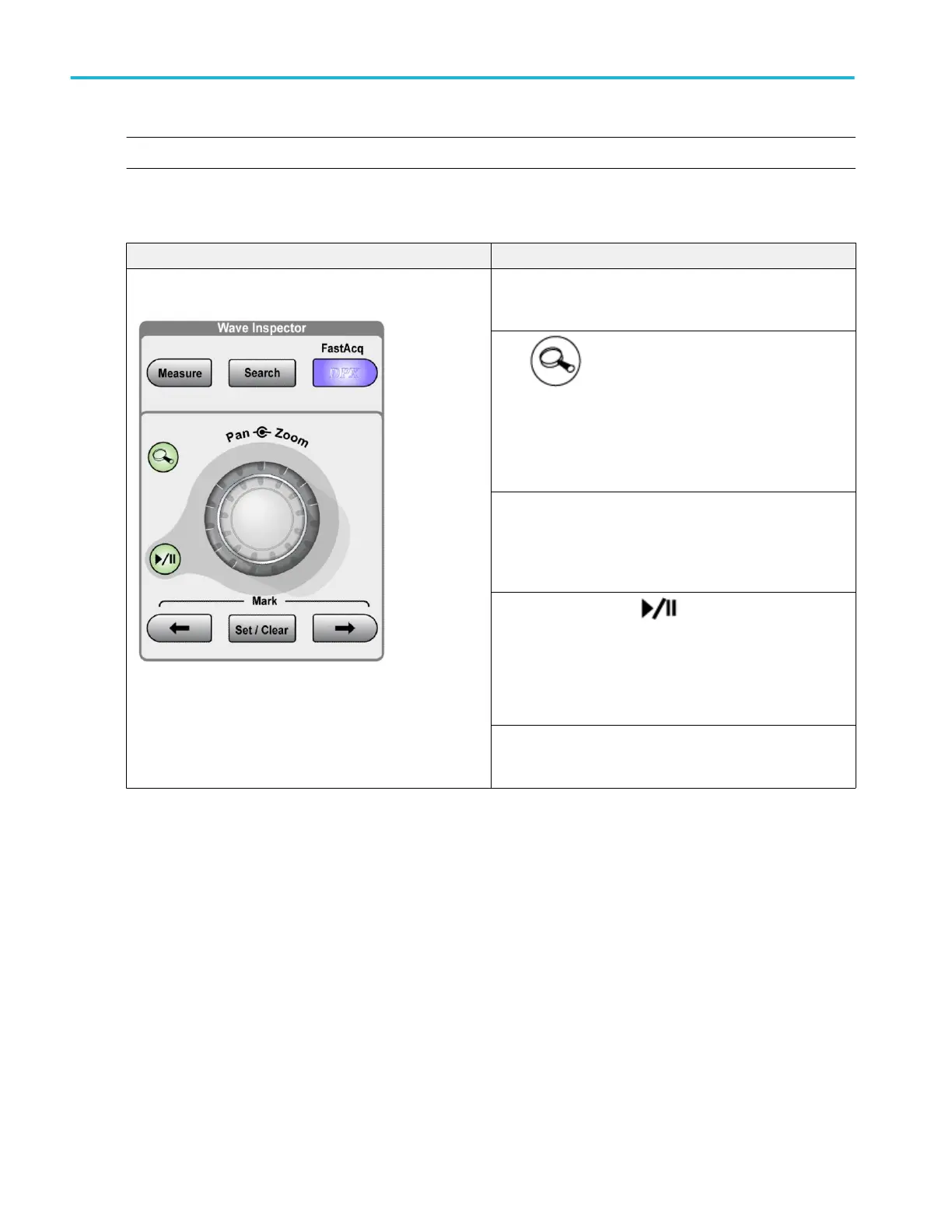

Wave inspector controls
NOTE. Wave Inspector Controls are available only on MSO/DPO5000B Series instruments.
The Wave Inspector controls (zoom/pan, play/pause, mark, and search) help you to efficiently work with long record length
waveforms.
Controls Description
Use Measure to perform automated measurements, Search to
search through an acquisition for user-defined events/criteria,
or DPX/FastAcq to start or stop fast acquisitions.
Push to turn on MultiView Zoom and add a magnified
graticule to the display.
Zooming a waveform: Enable or disable the zoom mode by
pushing the zoom button. Rotate the inner knob on the Pan-
Zoom control clockwise to zoom in on a selected part of the
waveform. Rotate the knob counterclockwise to zoom back out.
Use the Pan knob to scroll through a zoomed waveform.
Panning a waveform: Rotate the pan (outer) knob of the pan-
zoom controls to pan the waveform. Turn the knob clockwise to
pan forward. Turn it counterclockwise to pan backwards. The
further you turn the knob, the faster the zoom window pans.
Use the play-pause knob to automatically pan through a
waveform record.
Playing and Pausing a Waveform: Enable the play-pause mode
by pushing the play-pause button. Adjust the play speed by
turning the pan (outer) knob further. The further you turn it, the
faster it goes.
Use to search and mark waveforms, to establish or delete a
waveform mark, or to jump to the previous or next waveform
mark.
Vertical controls
Use the Vertical controls to adjust the vertical display parameters of live data channels connected to the vertical inputs. Each
input channel has identical controls.
Requires optional front panel accessory on DPO70000SX Series instruments.
Controls and connectors
74 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
