Acquire the Sign
al

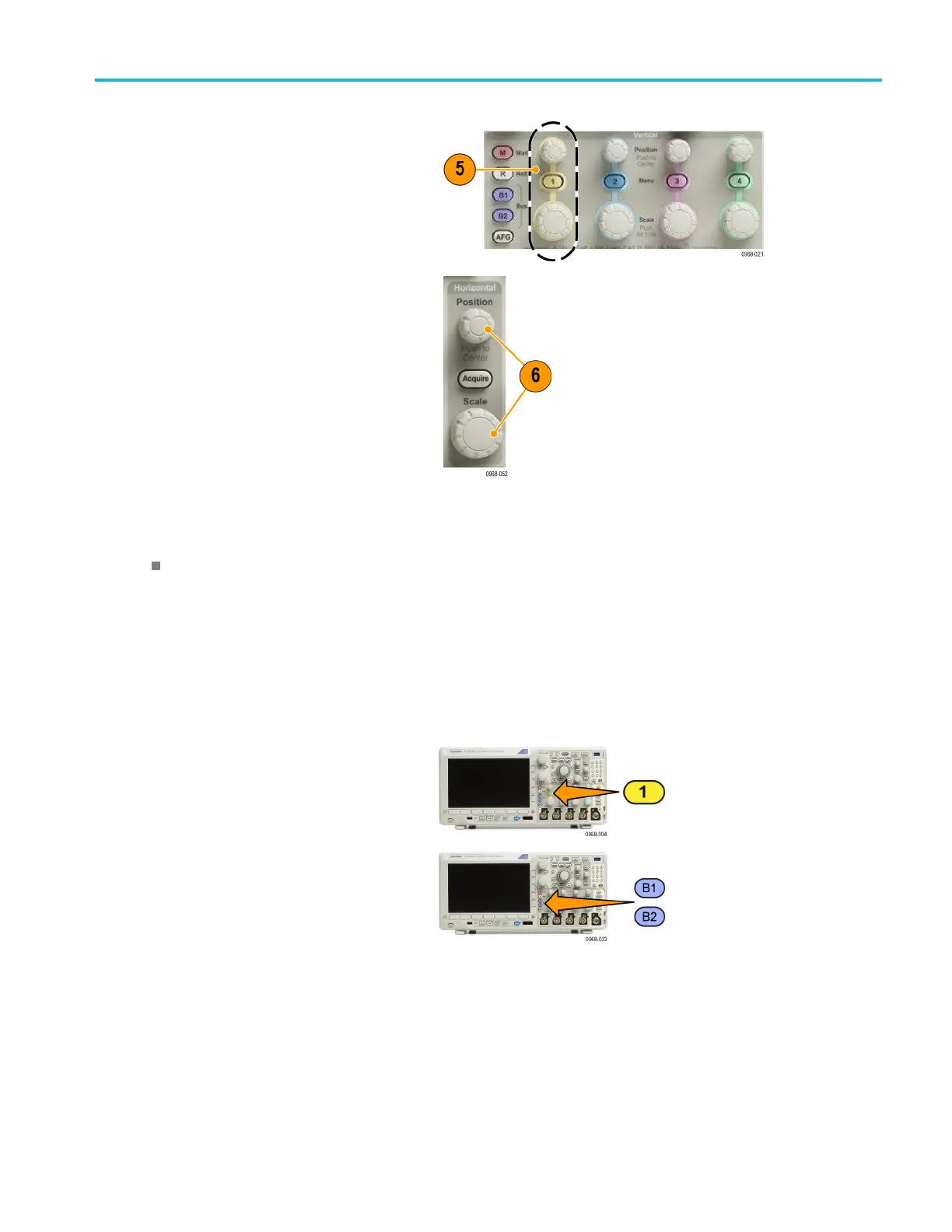

5. Push the desire
d channel button. Then
adjust the vertical position and scale.
6. Adjust the horizontal position and scale.
The horizont
al position determines the
number of pretrigger and posttrigger
samples.
The horizon
tal scale determines the size
of the acquisition window relative to the
waveform. You can scale the window to
contain a w
aveform edge, a cycle, several
cycles, or thousands of cycles.
Quick Tip
Use the zoom feature to see multiple cycles of your signal in the upper part, and a single c ycle in the lower part of the
display. (See page 149, Using Wave Inspector to Manage Long Record Length Waveforms.)
Labeling Channels and Buses
You can
add a label to the channels and buses shown on the display for easy identification. The label is placed on the
waveform baseline indicator in the left side of the screen. The label can have up to 32 c haracters.
To lab
el a channel, push a channel input button for an analog channel.
1. Push a front panel button for an input
chann
el or a bus.
MDO3000 Series Oscilloscopes User Manual 55

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
