Theory of operation
This chapter describes the electrical operation of the oscilloscope to the module level. The block diagram shows the oscilloscope module
interconnections.
Note: A removable Embedded OS drive comes standard on instruments with a serial number of B020000 and above or C040000
and above.

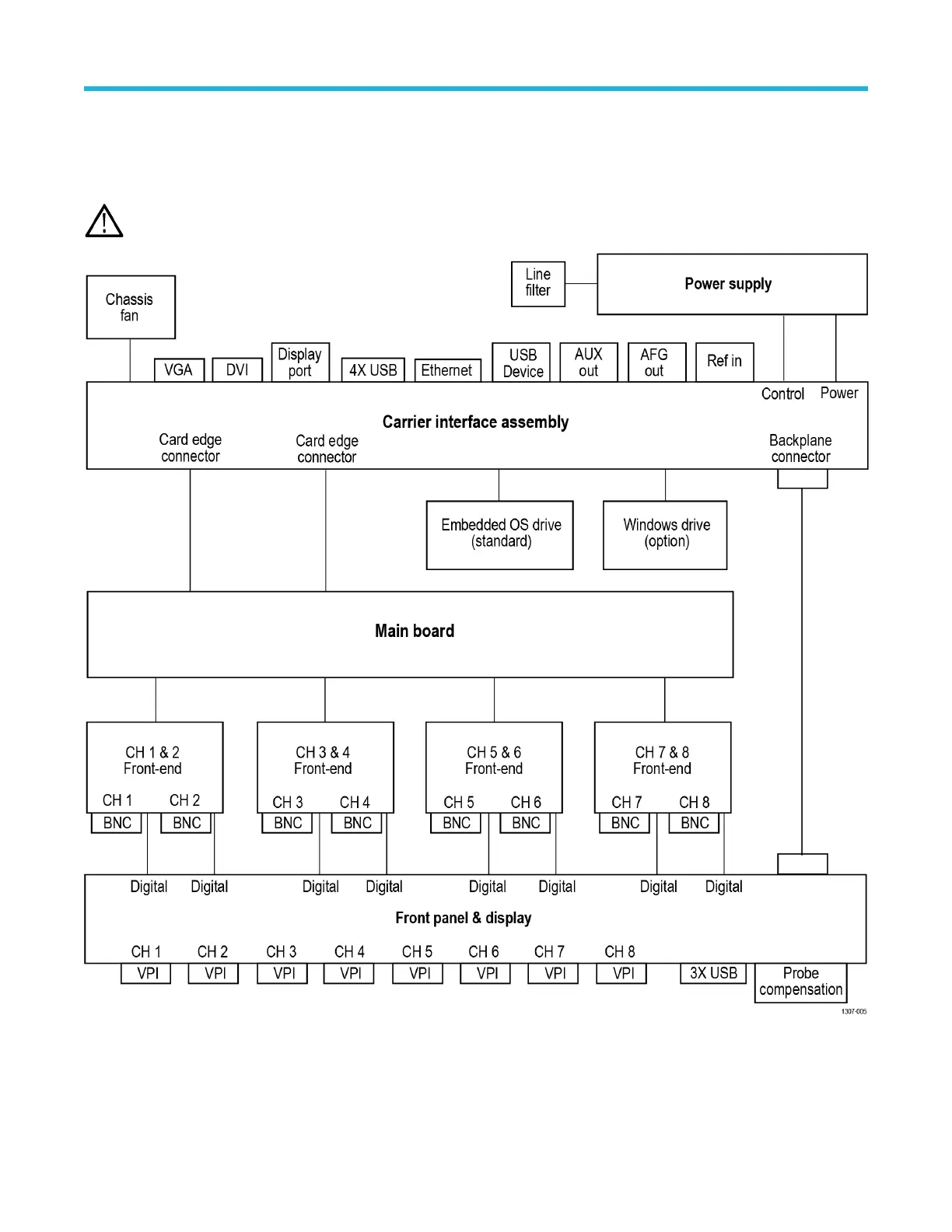

Figure 1: 5 Series MSO block diagram
Power supply
The Power Supply board converts AC line voltage to +12 V to power for all internal circuits.
Theory of operation
5 Series MSO Service Manual MSO54, MSO56, MSO58 12
