Tektronix MSO54B Service Manual

Baffle and power supply module

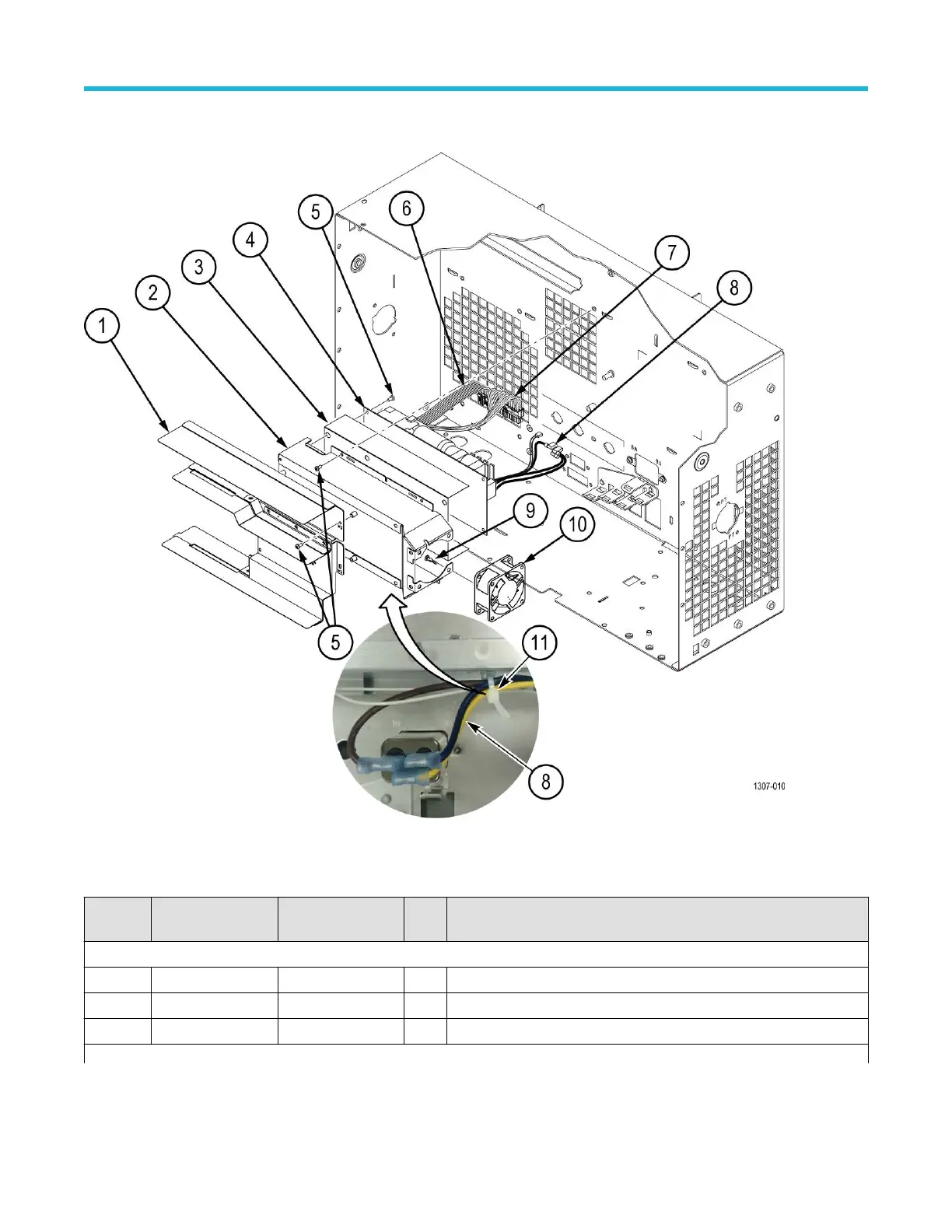

Figure 6: Rear chassis baffle and power supply exploded view
Table 8: Baffle and power supply module
Index
number
Tektronix part
number
Serial no. effective Qty Name & description
Figure 6 on page
42
-1 407-6080-XX 1 BRACKET, BAFFLE, SINGLE FAN, HYBRID
-2 407-5875-XX 1 BRACKET, POWER SUPPLY, 750W, SAFETY CONTROLLED
-3 337-4717-XX 1 SHIELD, MOUNT, POWER SUPPLY, SAFETY CONTROLLED
Table continued…
Replaceable parts
5 Series MSO Service Manual MSO54, MSO56, MSO58 42
