Tektronix P6021 User Manual

Service Information
P6021 Instruction Manual
11
Table 6: Mechanical characteristics
Characteristic Information
Probe Cable Length 5 ft or 9 ft 1.5 m or 2.75 m
Net Weight:
Probe and 5-foot cable 3.60 oz ≈103 gm
Probe and 9-foot cable 4.4 oz ≈125 gm
Termination 1.7 oz ≈48 gm
Termination L 3.47 in
W 1.10 in
H 0.86 in
88 mm
28 mm
22 mm
Probe Body L 7.9 in
W 0.63 in
H 1.25 in
200 mm
16 mm
32 mm
Maximum Conductor Diameter 0.141 in 3.58 mm
Termination at 2 mA
Termination at 10 mA
Frequency
-200
-150
-100
-50
0
50
100
100 MHz10 MHz1 MHz100 kHz10 kHz1 kHz100 Hz
Degrees

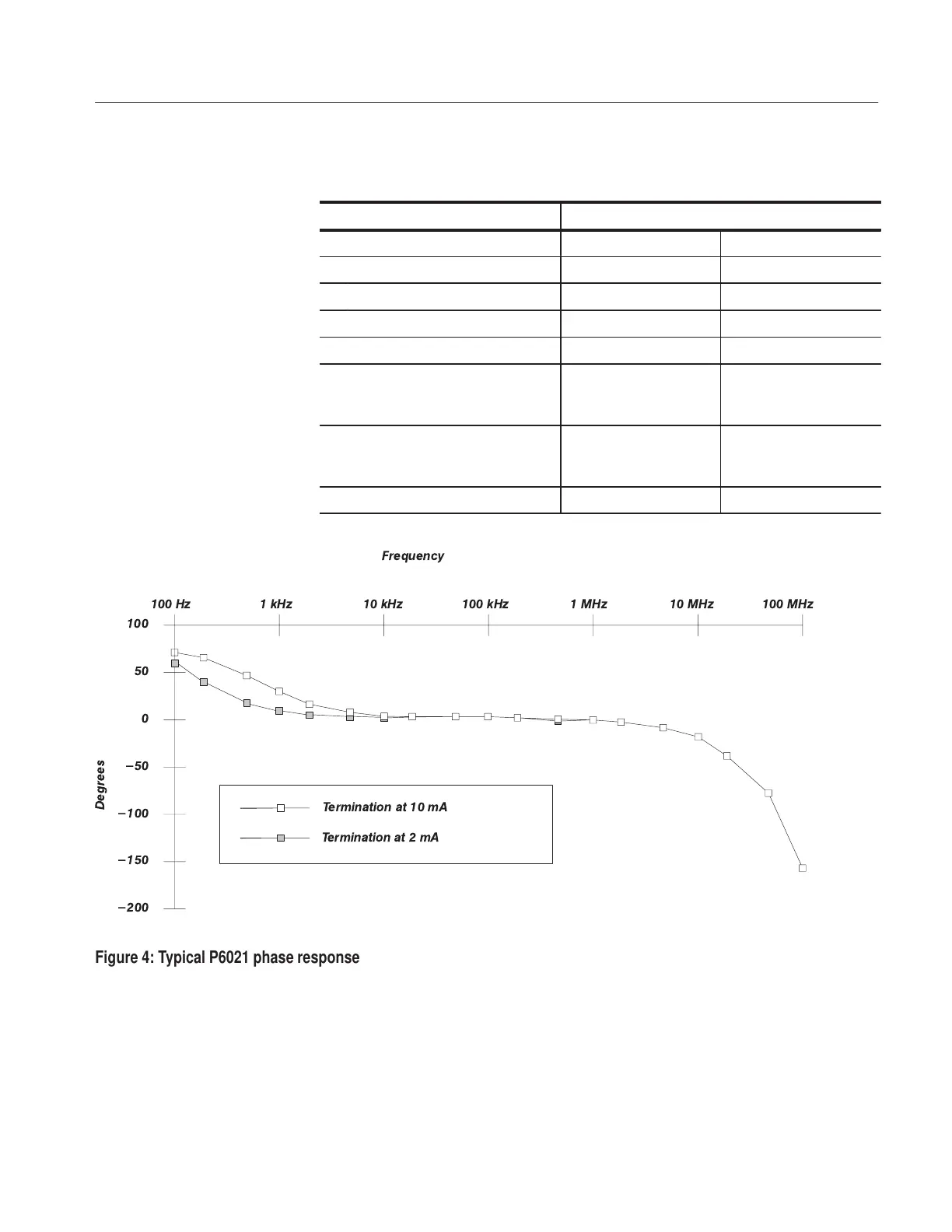

Figure 4: Typical P6021 phase response
