Key points
Cursor Movement. Use the multipurpose knob to move Cursor 1 or Cursor 2.
You can move the cursors only while the Cursor Menu is displayed. The active
cursor is represented by a solid line.

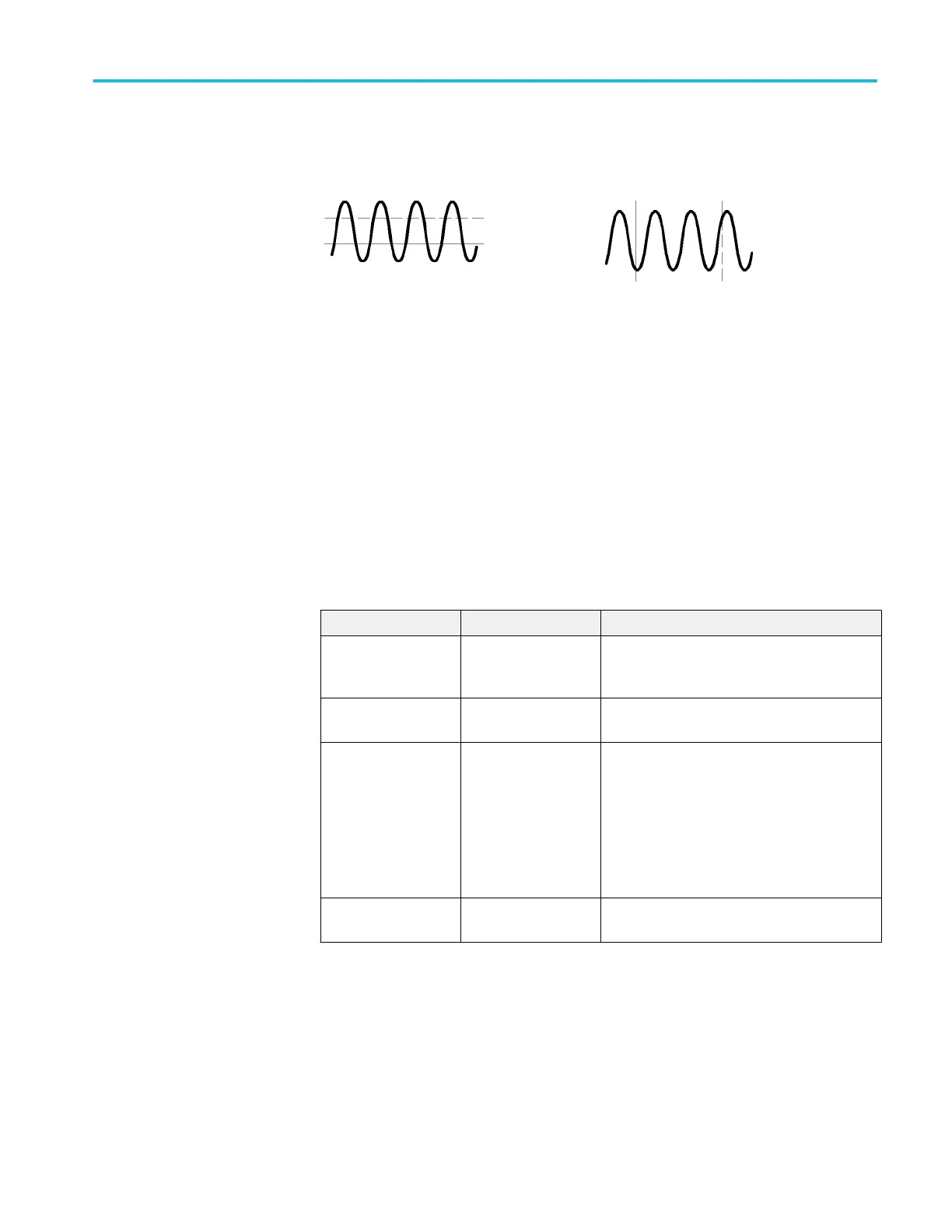

Amplitude cursors Time cursors
Default setup
Push the Default Setup button to recall most of the factory option and control
settings, but not all. Appendix D lists the default settings that will be recalled.
Display
Push the Utility button and Display side-menu selection to choose how
waveforms are presented and to change the appearance of the entire display.
Options Settings Comments
Type Vectors, Dots Vectors fill the space between adjacent sample
points in the display
Dots display only the sample points
Persist Off, 1 sec, 2 sec, 5 sec,
Infinite
Sets the length of time each displayed sample
point remains displayed
Format YT, XY YT format displays the vertical voltage in relation
to time (horizontal scale)
XY format displays a dot each time a sample is
acquired on channel 1 and channel 2
Channel 1 voltage or current determines the X
coordinate of the dot (horizontal) and the
channel 2 voltage or current determines the Y
coordinate (vertical)
Backlight 0 to 100% Use the Multipurpose knob to adjust the display
backlight.
Depending on the type, waveforms will be displayed in three different styles:
solid, dimmed, and broken.
Reference
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 85
