Operating Information
2-8
TDS 420A, TDS 430A & TDS 460A Service Manual
Position of Waveform
Record Relative to
the Screen and Display
General Purpose
Knob Readout
Waveform Reference
Symbols: Ground Levels
and Waveform Sources
Graticule and Waveforms
Side menu area.
Readouts for
measurements
move here when
CLEAR MENU
is pressed.
Main menu display area. Readouts in lower graticule
area move here when CLEAR MENU is pressed.
Vertical Scale, Horizontal
Scale, and Trigger Level
Readouts
Brief Status
Information

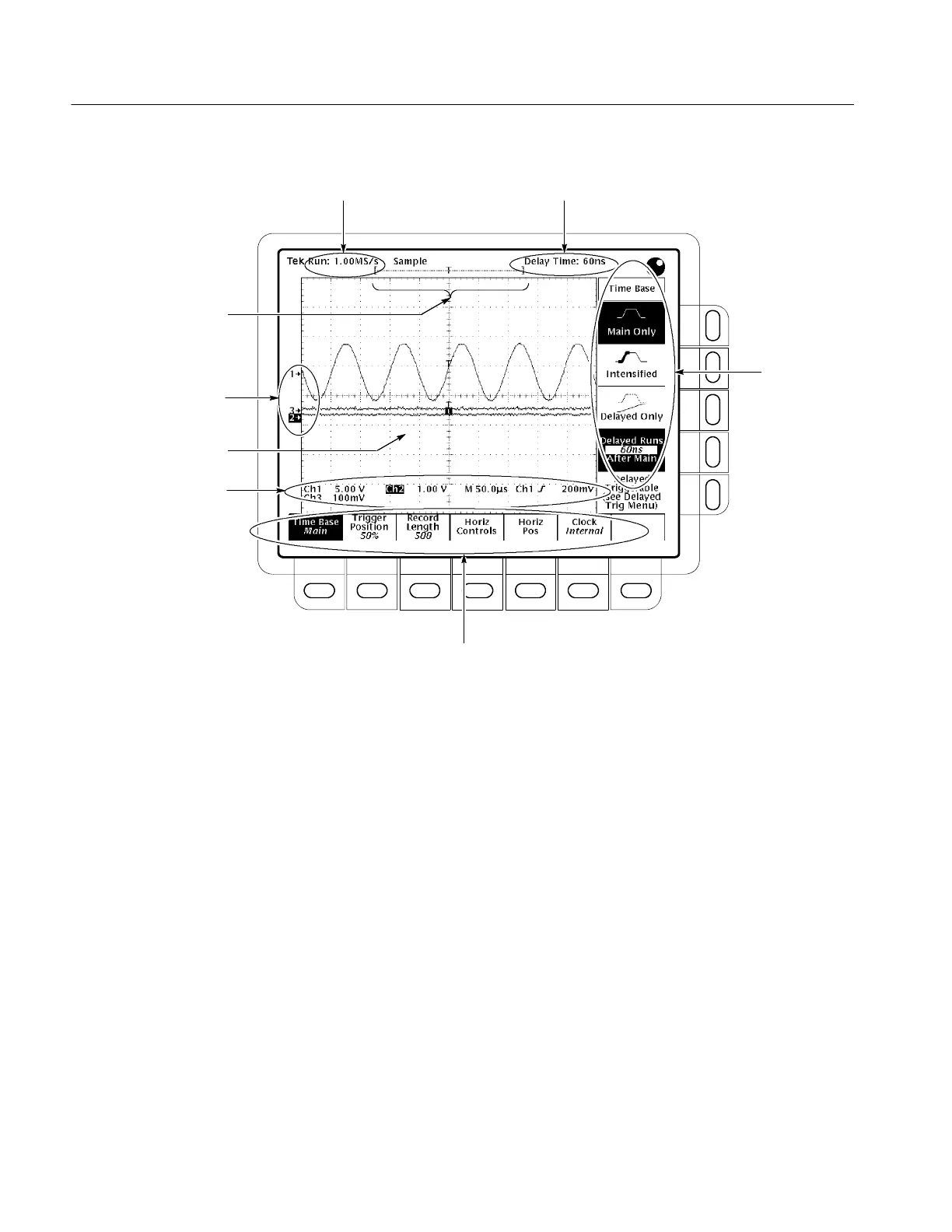

Figure 2- 1: Map of Display Functions
Push the HELP front-panel button to enter help mode. Front-panel knobs and
buttons now display information about their function when turned or pushed.
Push HELP again to exit help mode.
To get help information on a menu item, display the menu desired (if you are in
help mode, exit help first). Push HELP. Now the menu buttons display
information about their function when pushed.
Push the SHIFT button, and then press the STATUS front-panel button. Then
press the STATUS main-menu button to display the status menu. The messages
reflect the state of the acquisition system, whether it is running or stopped (and if
it is stopped, why), as well as setup-related information.
Using Help
Using the Status Menu
To Next Page
