Tektronix TDS200 Series User Manual

Operating Basics
TDS1000/2000-Series Digital Oscilloscope User Manual
35

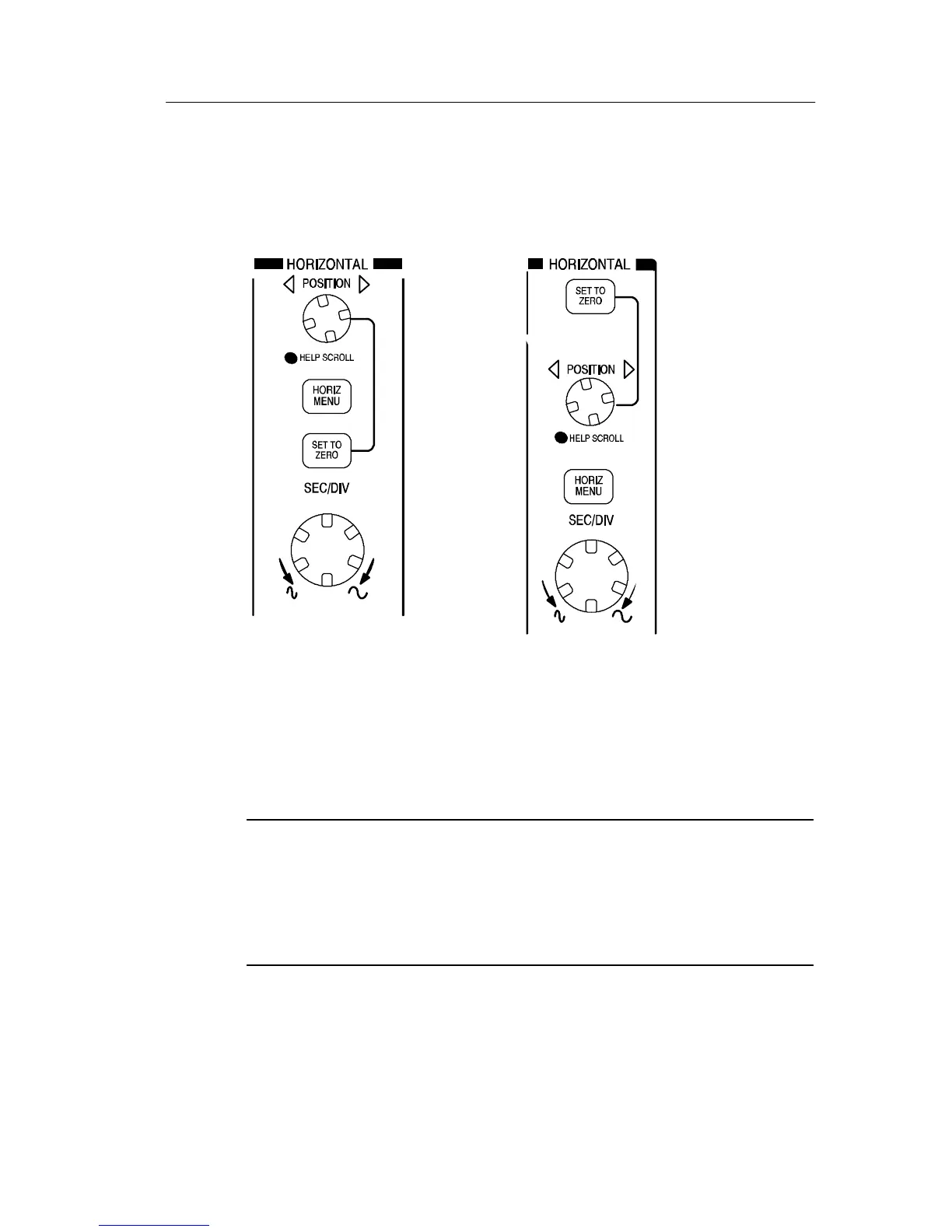

Horizontal Controls
2-channel models
4-channel models
POSITION. Adjusts the horizontal position of all channel and math
waveforms. The resolution of this control varies with the time base
setting. For information on windows, refer to page 92.
NOTE. To make a large adjustment to the horizontal position, turn the
SEC/DIV knob to a larger value, change the horizontal position, and
then turn the SEC/DIV knob back t o the previous value.
When you view he lp topics, you can use this knob to scroll through
links or index entries.

Tektronix TDS200 Series Specifications

General

Channels	2 or 4
Memory Depth/Record Length	2.5k points
Input Coupling	AC, DC, GND
Timebase Accuracy	50 ppm
Display	5.7-inch color LCD
Vertical Resolution	8 bits
Trigger Modes	Edge, Video, Pulse
Math Functions	Add, Subtract, Multiply, FFT
Maximum Input Voltage	300 Vrms
Power Requirements	100-240 VAC, 45-66 Hz
Bandwidth	100 MHz
Vertical Sensitivity	2 mV/div
Timebase Range	5 ns/div
Connectivity	USB
Input Impedance	1 MΩ
