Tektronix TDS200 Series User Manual

Application Examples
60
TDS1000/2000-Series Digital Oscilloscope User Manual

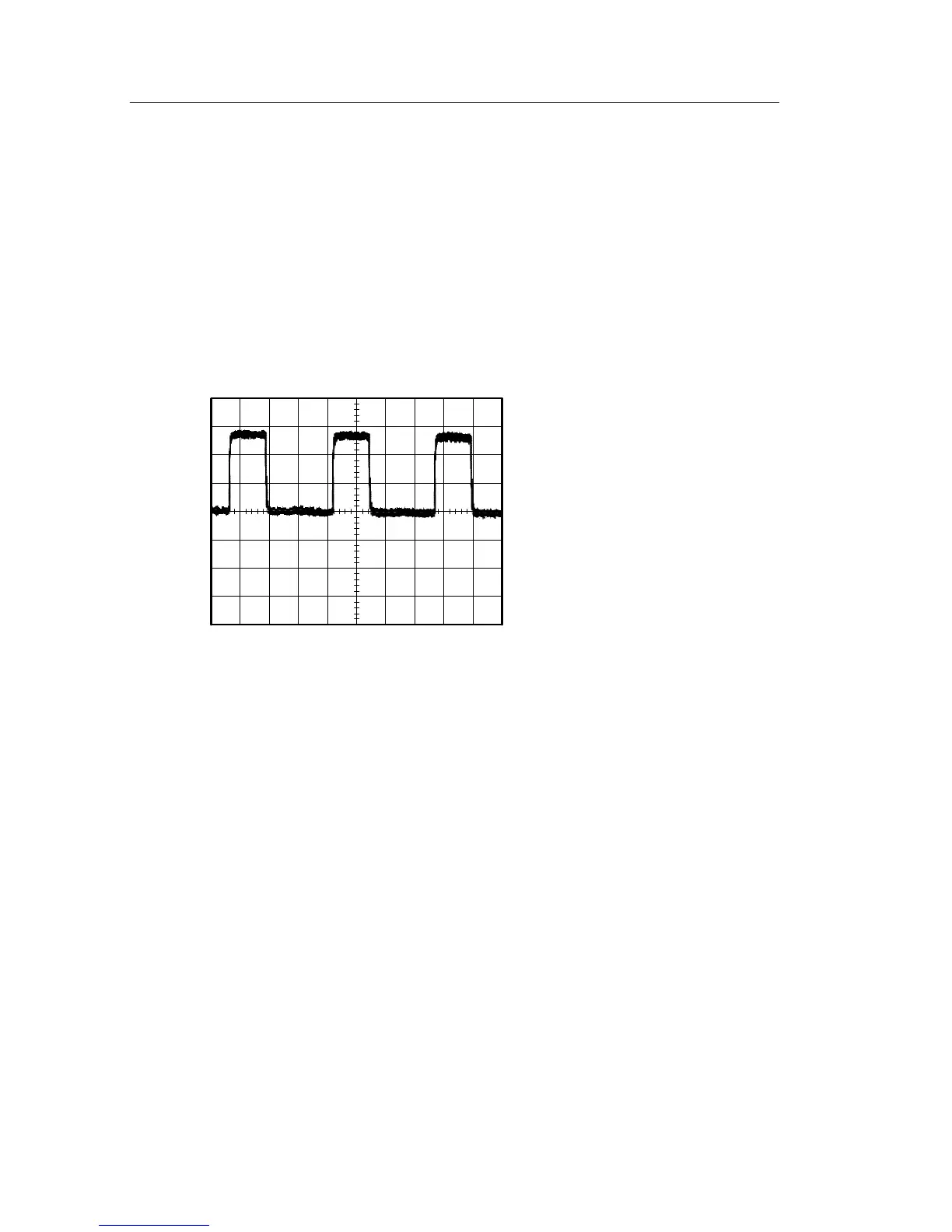

Triggering on a Specific Pulse Width
You are testing the pulse widths of a signal in a circuit. It is critical
that the pulses all be a specific width and you need to verify that they
are. Edge trigge ring shows that your signal is as specified, and the
pulse width measurement does not va ry from the specification.
However, you think there might be a problem.
To set up a test for pulse width aberrations, follow these steps:
1. Display the suspect signal on Ch 1. If Ch1 is not displayed, push
the CH1 MENU button.
2. Push the AUTOSET button to t rigger a stable display.
3. Push the Single Cycle option button i n the AUTOSET Menu to
view a single cycle of the signal, and to quickly take a Pulse
Width measurement.
4. Push the TRIG MENU button.
5. Push the Type option button to select Pulse.

Tektronix TDS200 Series Specifications

General

Channels	2 or 4
Memory Depth/Record Length	2.5k points
Input Coupling	AC, DC, GND
Timebase Accuracy	50 ppm
Display	5.7-inch color LCD
Vertical Resolution	8 bits
Trigger Modes	Edge, Video, Pulse
Math Functions	Add, Subtract, Multiply, FFT
Maximum Input Voltage	300 Vrms
Power Requirements	100-240 VAC, 45-66 Hz
Bandwidth	100 MHz
Vertical Sensitivity	2 mV/div
Timebase Range	5 ns/div
Connectivity	USB
Input Impedance	1 MΩ
