Tektronix TDS200 Series User Manual

Application Examples
TDS1000/2000-Series Digital Oscilloscope User Manual
67

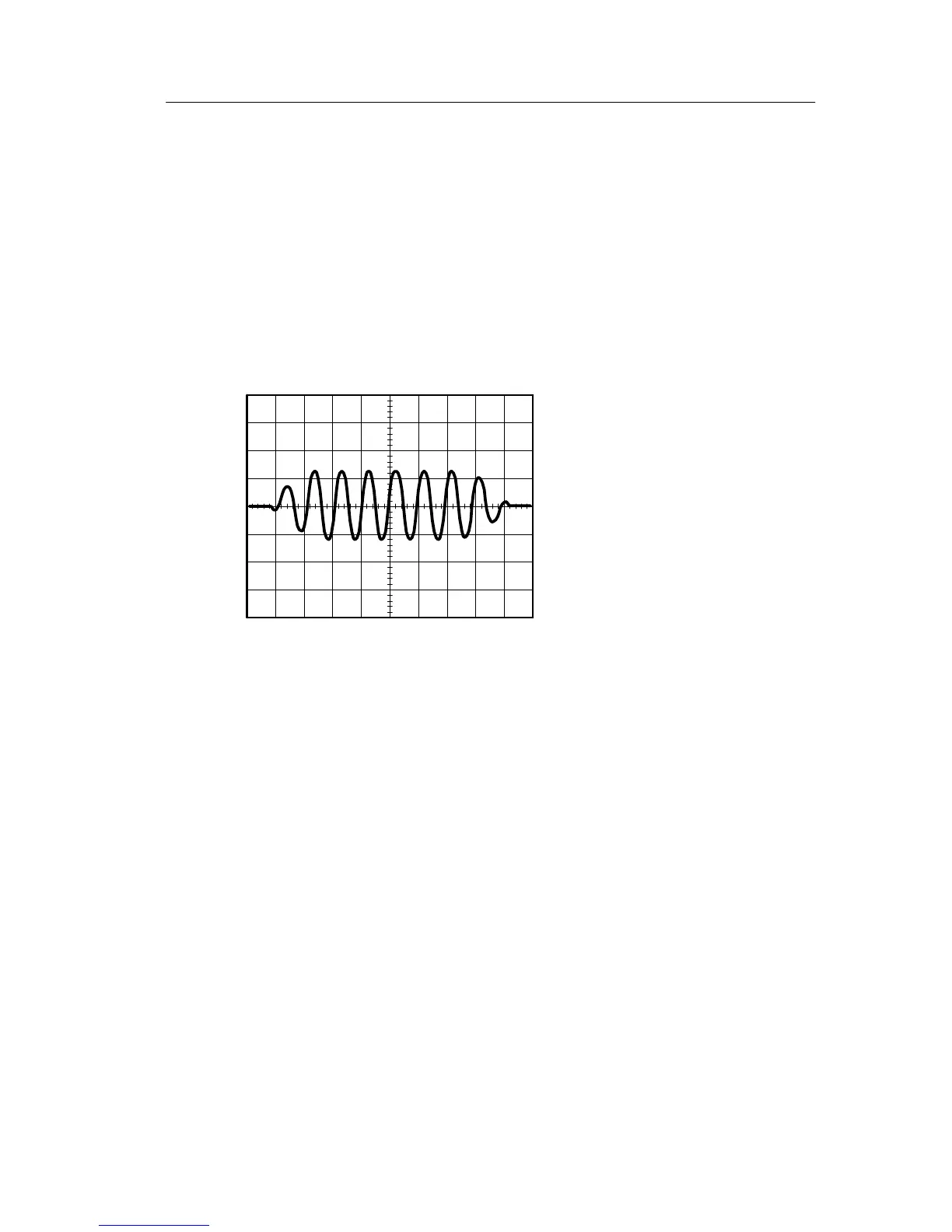

5. Push the Window option button to see the expanded portion of
the waveform.
6. Turn the SEC/DIV knob to optimize viewing the expanded
waveform.
To switch between t he Main and Window views, push the Main
or Window option button in the Horizontal Menu.

Tektronix TDS200 Series Specifications

General

Channels	2 or 4
Memory Depth/Record Length	2.5k points
Input Coupling	AC, DC, GND
Timebase Accuracy	50 ppm
Display	5.7-inch color LCD
Vertical Resolution	8 bits
Trigger Modes	Edge, Video, Pulse
Math Functions	Add, Subtract, Multiply, FFT
Maximum Input Voltage	300 Vrms
Power Requirements	100-240 VAC, 45-66 Hz
Bandwidth	100 MHz
Vertical Sensitivity	2 mV/div
Timebase Range	5 ns/div
Connectivity	USB
Input Impedance	1 MΩ
