Diagrams

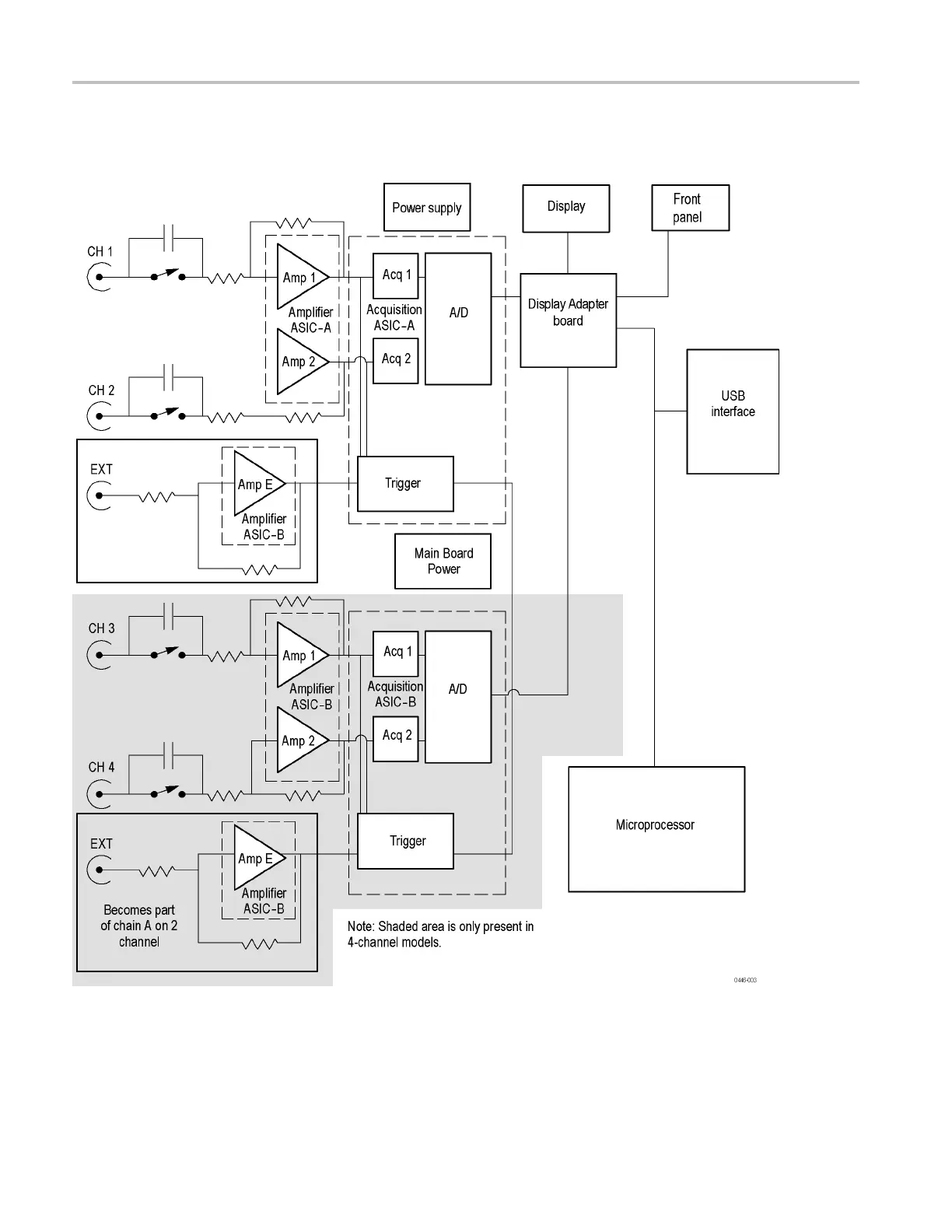

The shaded area
in the figure represents modules and circuits used only in
4-channel oscilloscopes.
Fi
gure 7-1: TDS2000C series block diagram
7–2 TDS2000C Series Oscilloscope Service Manual
