Tektronix TDS2002 User Manual

TDS2CMA Communications Module
148
TDS1000/2000-Series Digital Oscilloscope User Manual

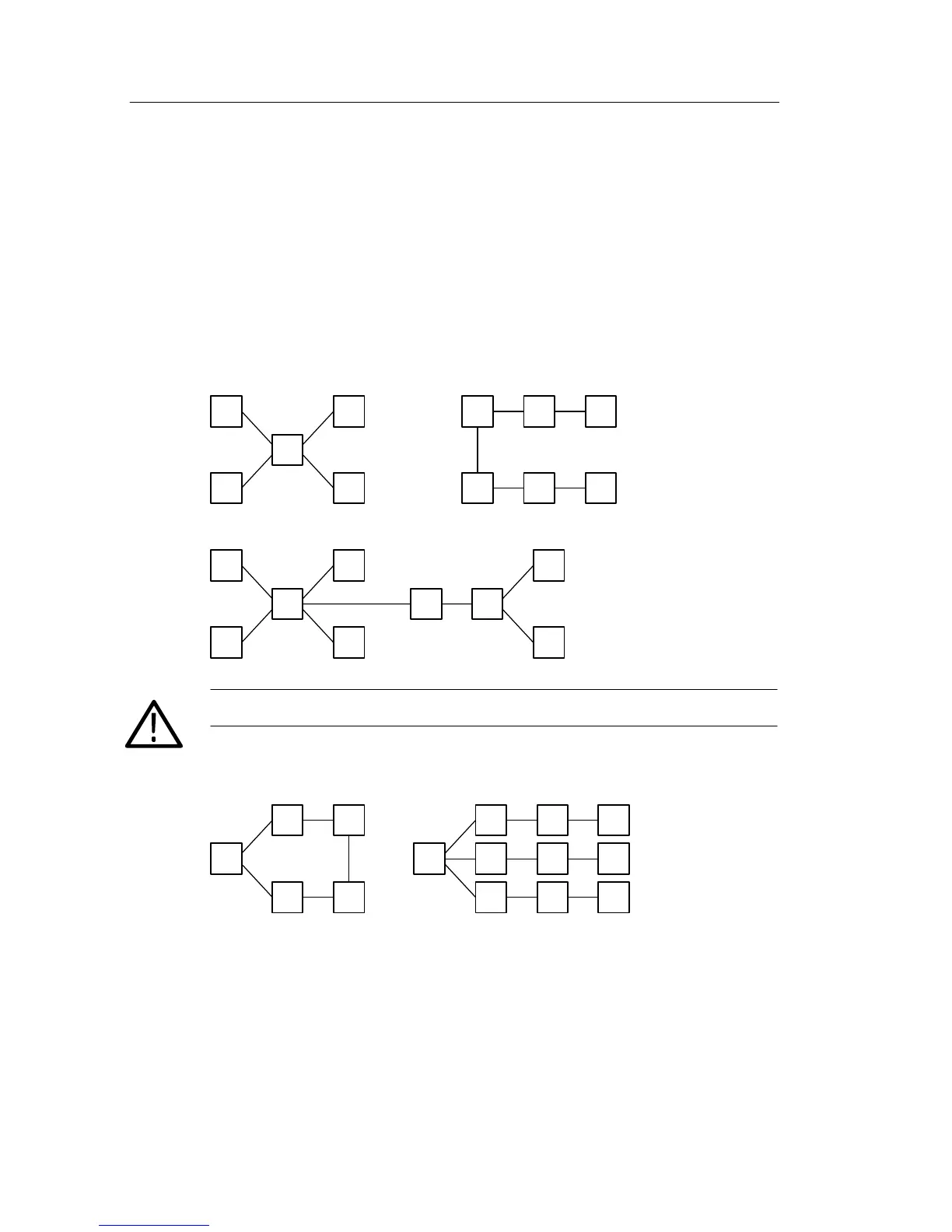

GPIB Network Conventions
To achieve a high data t ransfer rate, the physical distance between
devices and the number of devices on the bus are limited. When you
create the GPIB network, follow these guide lines:
H Connect the GPIB devices in a star, linear, or combina tion
star/linear network.
CAUTION. Do not use loop or parallel networks.

Tektronix TDS2002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5 kpoints
Timebase Range	5 ns/div to 50 s/div
Trigger Modes	Edge, Pulse, Video
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	LCD
Display Type	LCD
Display Size	5.7 in. (144 mm)
Power Supply	100 to 240 V ±10%, 45 to 440 Hz
Input Impedance	1 MΩ in parallel with 20 pF
