Tenda AC15 User Manual

59

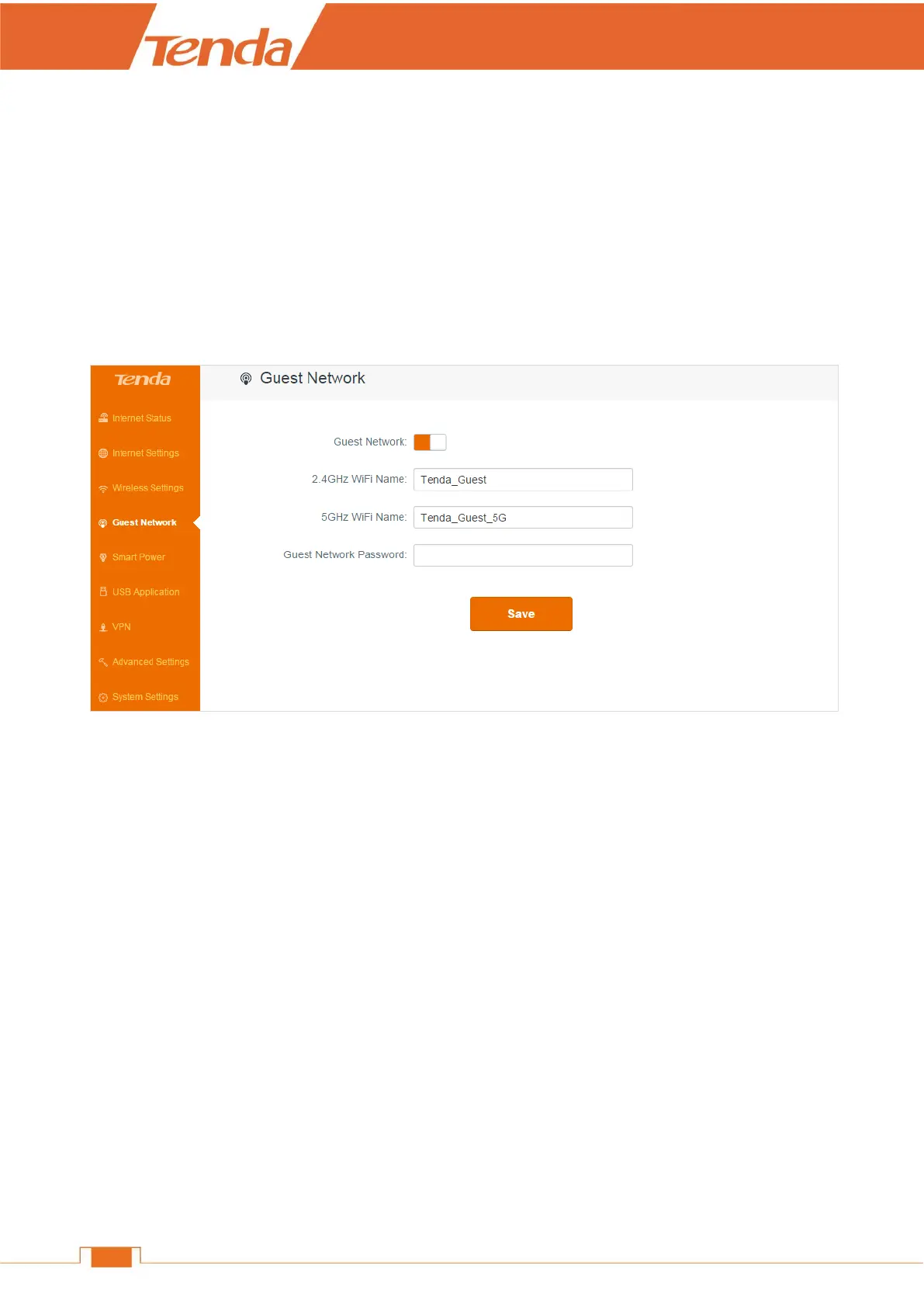

4 Guest Network
A guest network allows visitors at your home to use a separate SSIDs or networks without providing
access to your private network. You can create a guest network for each wireless network: 2.4GHz
and 5GHz.
To create a guest network:
Log in to the Router’s User Interface, and click Guest Network.
1. Click Guest Network button to enable the feature.
2. Customize a WiFi Name for 2.4GHz and 5GHz network respectively and a password for both of
them.
3. Click Save.

Tenda AC15 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, System, USB, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Bandwidth (first)	5 GHz
Bandwidth (second)	2.4 GHz
Mobile network connection	No
WLAN data transfer rates supported	600, 1300 Mbit/s
Antenna gain level (max)	3 dBi
Output current	2.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Routing protocols	IP
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS, BSMI, NCC, EAC, C-tick, IC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	76.6 mm
Width	226 mm
Height	179.5 mm
Weight	1210 g
