Tenda W300D User Manual

ADSL2/2+ Router

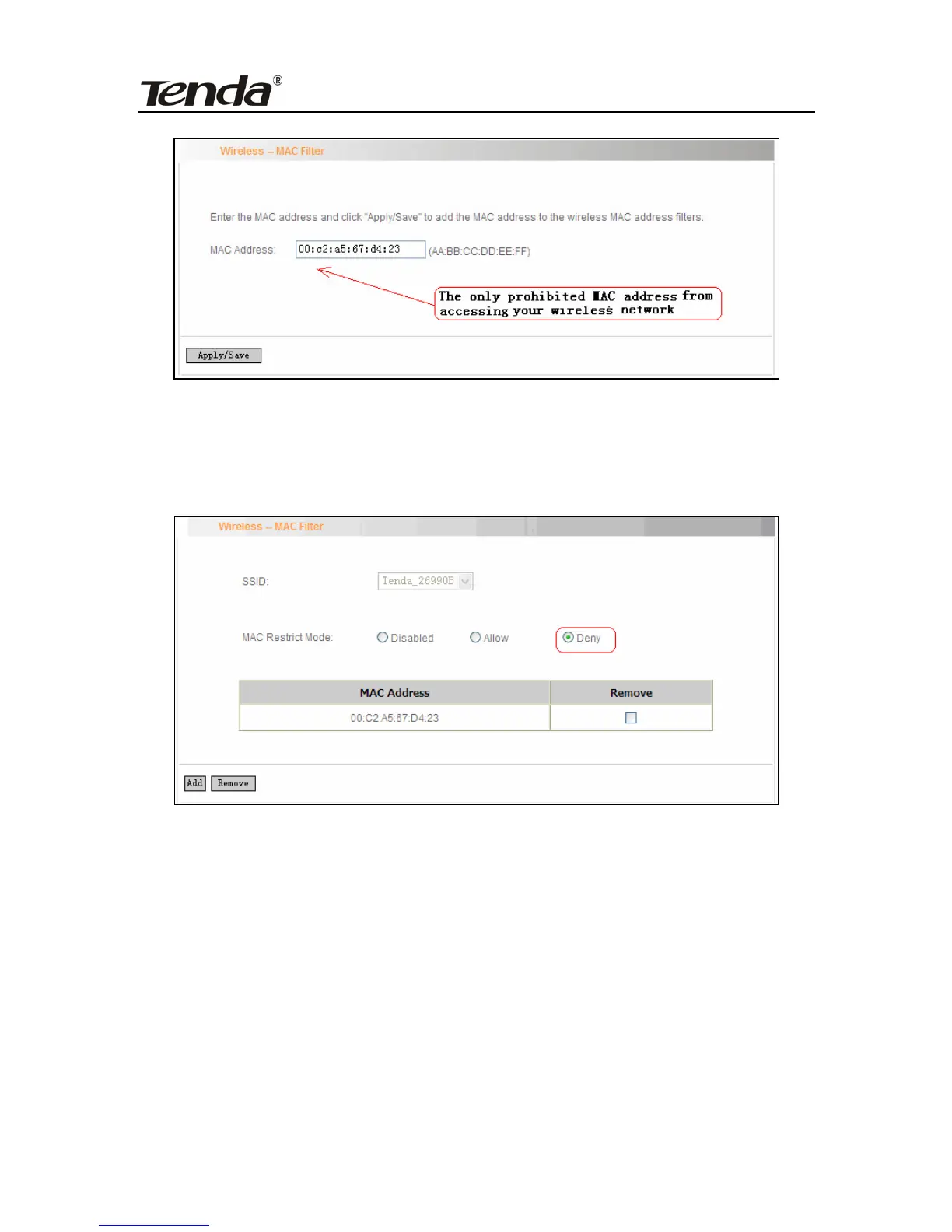

Then click the “Apply/Save” button on the above screen to save the
parameter.
2. Select “Deny” on the page below:
4.3.4 Wireless Bridge
Wireless Distribution System is used to extend the existing wireless
signal coverage. Wireless bridge includes 2 modes:
1. Access point (Once it is selected, the AP function will be enabled
while wireless bridge function will be reserved. Moreover, wireless base
station will establish bridge with the AP in the meantime. Namely, you
can establish communication with wireless base station through a
- 103 -

Tenda W300D Specifications

General

VPN support	PPPTP, L2TP, Ipsec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
Power requirements	9V DC
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Supported network protocols	IPoE, PPPoE, PPPoA, IPoA, DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Web-based management	-
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	9 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Product color	White
LED indicators	LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Depth	171.95 mm
Width	118.97 mm
Height	31 mm
Weight	- g
