Tenda W300D User Manual

ADSL2/2+ Router

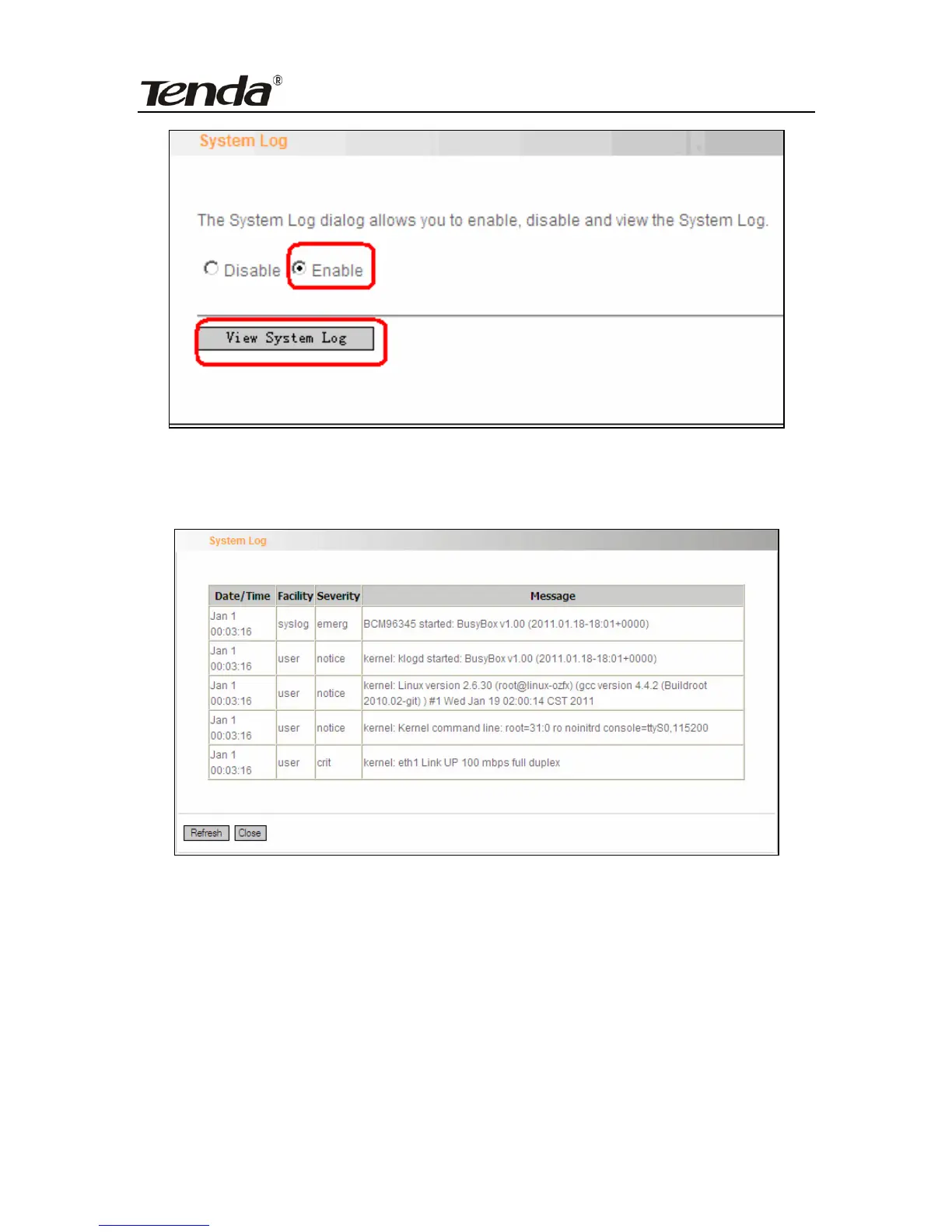

2. Click “View System Log” and you can check the logs on the
appearing screen.
4.5.2TR-069 client
TR-069 client is used to implement remote centralized management
over the W300D from the Internet (Note: to use this function, there must
be a remote centralized manager), the configuration steps are as
follows:
1. Click “TR-069 client” to enter the “TR-069 client – Configuration”
- 109 -

Tenda W300D Specifications

General

VPN support	PPPTP, L2TP, Ipsec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
Power requirements	9V DC
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Supported network protocols	IPoE, PPPoE, PPPoA, IPoA, DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Web-based management	-
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	9 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Product color	White
LED indicators	LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Depth	171.95 mm
Width	118.97 mm
Height	31 mm
Weight	- g
