Tenda W300D User Manual

ADSL2/2+ Router

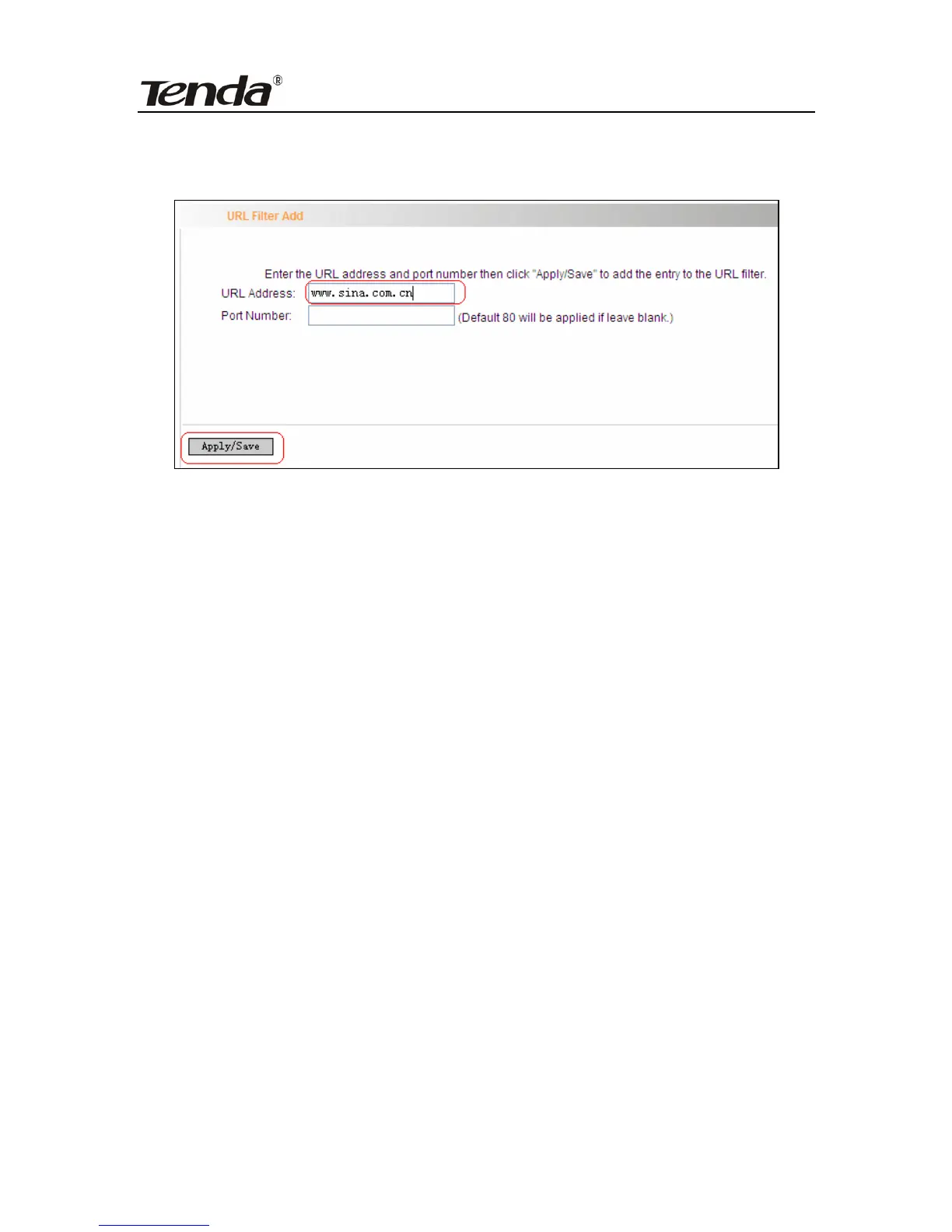

and then click the “Add” there to enter the page below to configure
needed parameters:
URL Address: Enter the domain name that rejects LAN PCs access.
Port Number: It indicates the port used by Web server, 80 by default.
Then click the “Apply/Save” button to save your settings. As a result, all
LAN PCs can not access
www.sina.com.cn.
Note: After you have added the URL filter rule, if you previously
accessed this URL, then you need to reboot the router and delete your
PC’s cache to activate the function. However, you can access the
deleted URL without rebooting the router after you delete a filter rule.
4.2.9 Time Restriction
This function can restrict PCs or other network devices that are
connected to the router’s LAN ports to a specific Internet access time.
- 76 -

Tenda W300D Specifications

General

VPN support	PPPTP, L2TP, Ipsec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
Power requirements	9V DC
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Supported network protocols	IPoE, PPPoE, PPPoA, IPoA, DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Web-based management	-
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	9 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Product color	White
LED indicators	LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Depth	171.95 mm
Width	118.97 mm
Height	31 mm
Weight	- g
