Texecom Premier Elite ComIP User Manual

Premier Elite ComIP Installation Manual
4 INS273-6

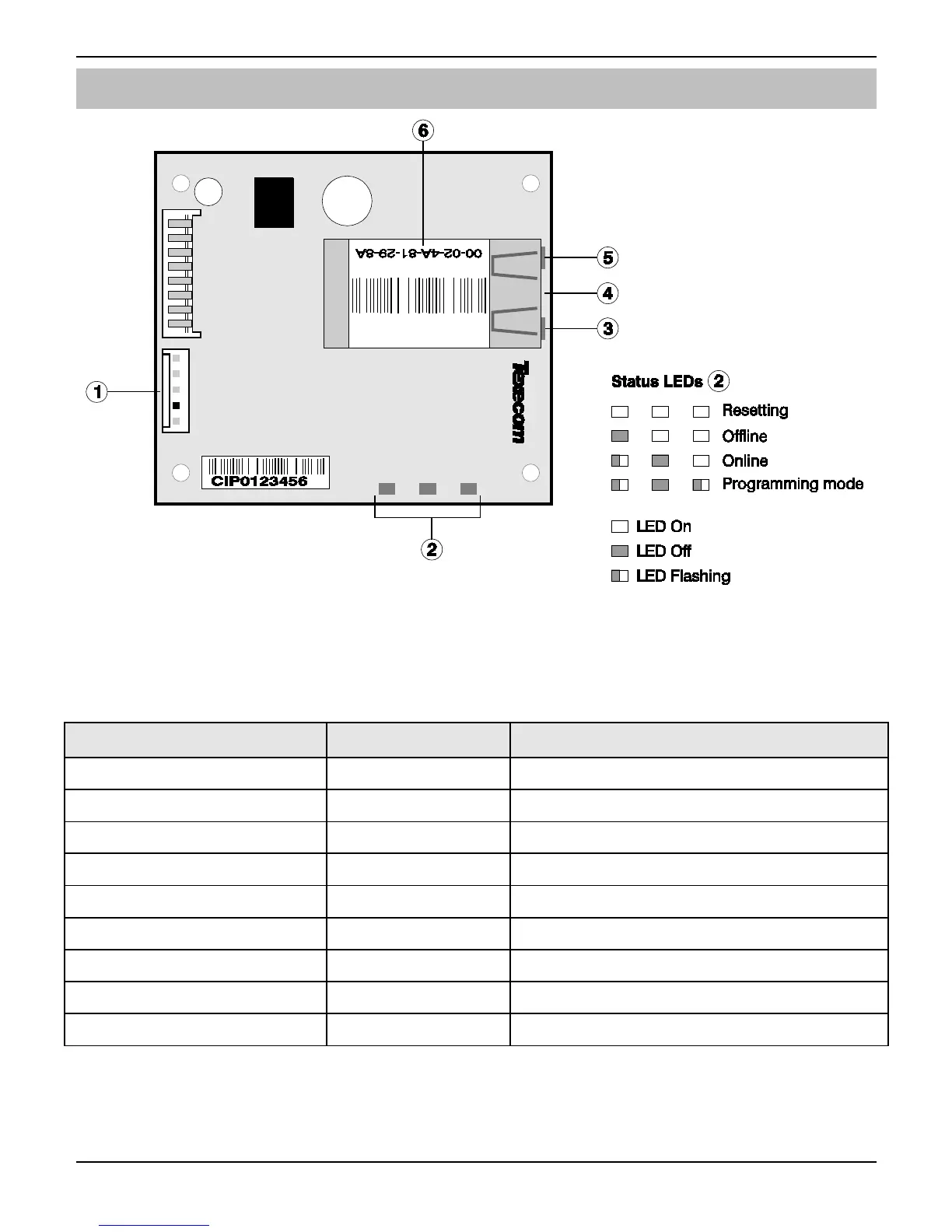

PCB Layout

5-way harness connection to control panel

ComIP Status LEDs

Network status LED (Left)

Network status LED (Right)

RJ45 network Connection

MAC address
Left LED Right LED Meaning
Off Off No Link
Off Solid Amber 100BASE-T Half Duplex Link
Off Blinking Amber 100BASE-T Half Duplex; Activity
Off Solid Green 100BASE-T Full Duplex Link
Off Blinking Green 100BASE-T Full Duplex; Activity
Solid Amber Off 10BASE-T Half Duplex Link
Blinking Amber Off 10BASE-T Half Duplex; Activity
Solid Green Off 10BASE-T Full Duplex Link
Blinking Green Off 10BASE-T Full Duplex; Activity

Texecom Premier Elite ComIP Specifications

General

Brand	Texecom
Model	Premier Elite ComIP
Category	Control Panel
Language	English
