MAINTENANCE
Lifting the Vehicle
To reduce the possibility of severe injury or death from a vehicle falling from a jack:
Always place chocks in front and behind the wheels not being raised.
Be sure the vehicle is on a firm and level surface.
Never get under a vehicle while it is supported by a jack.
Use jack stands and test the stability of the vehicle on the stands.
Use extreme care since the vehicle is very unstable during the lifting process

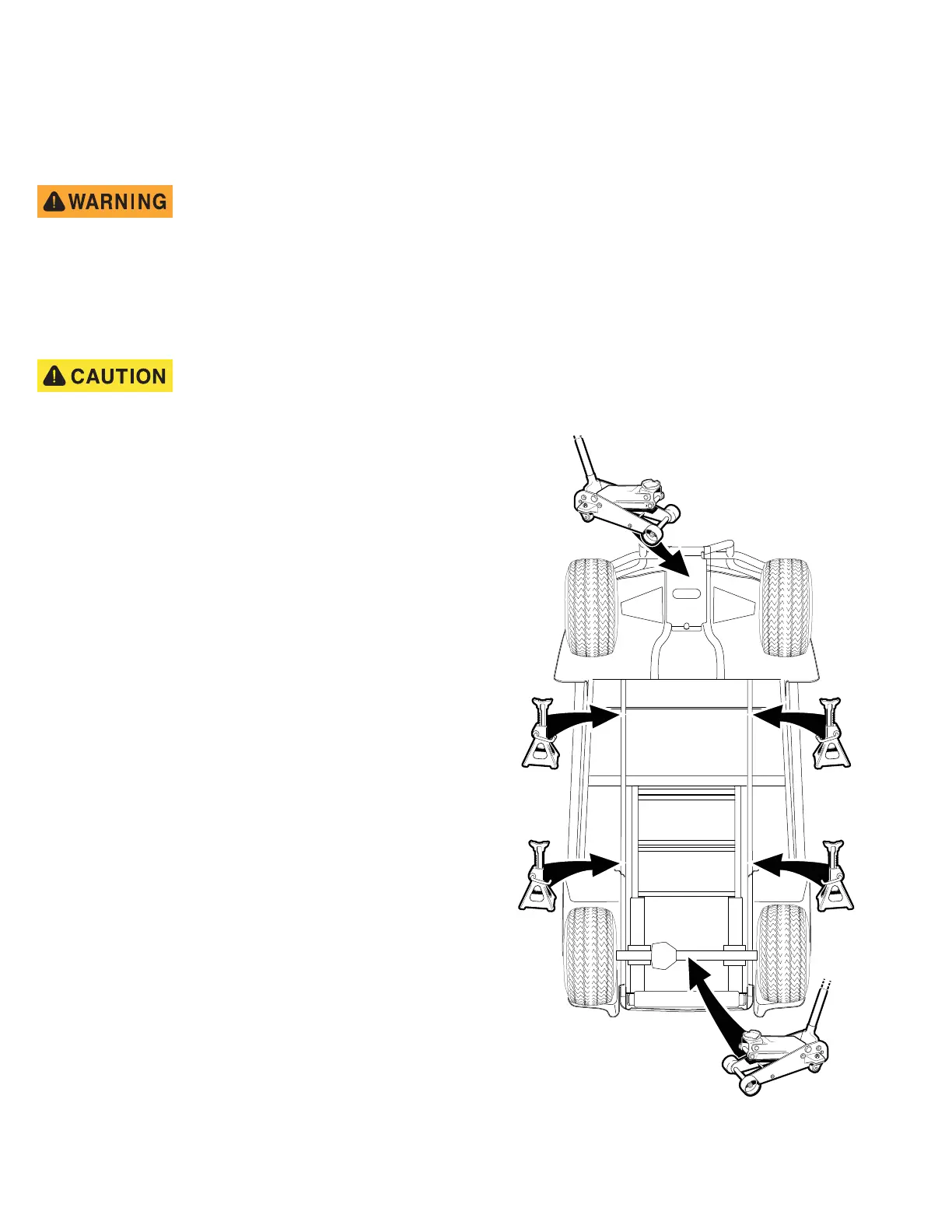

When lifting the vehicle, position the jack and jack stands at the areas indicated.
Remove payload from vehicle before lifting. No one should be in or on the vehicle while lifting.
Lift Entire Vehicle
1. Place wheel chocks in front and behind each front wheel.
2. Center jack under rear axle tube next to differential housing or under the
skid plate.
3. Raise vehicle and position jack stands under the frame where the leaf
spring mounting bracket is welded to the frame.
4. Lower the jack and test the stability of the vehicle on the two jack stands.
5. Place the jack under the center front of the car just behind the bumper.
6. Raise the vehicle and position the jack stands under the frame where the
instrument panel support is attached to the frame.
7. Lower the jack and test the stability of the vehicle on all four jack stands.
Lift Front of Vehicle
1. Place wheel chocks in front and behind rear wheels.
2. Place the jack under the center front of the car just behind the bumper.
3. Raise the vehicle with jack and position the jack stands under the frame
where the instrument panel support is attached to the frame.
4. Lower the jack and test the stability of the vehicle on jack stands.
5. The jack may be left under the center front of the frame while the front end
of the vehicle is on the jack stands.
TOOLS
• Floor Jack
• Jack Stands
• Wheel Chocks
To Next Page
