Thermo King CSR-40SL-126 User Manual

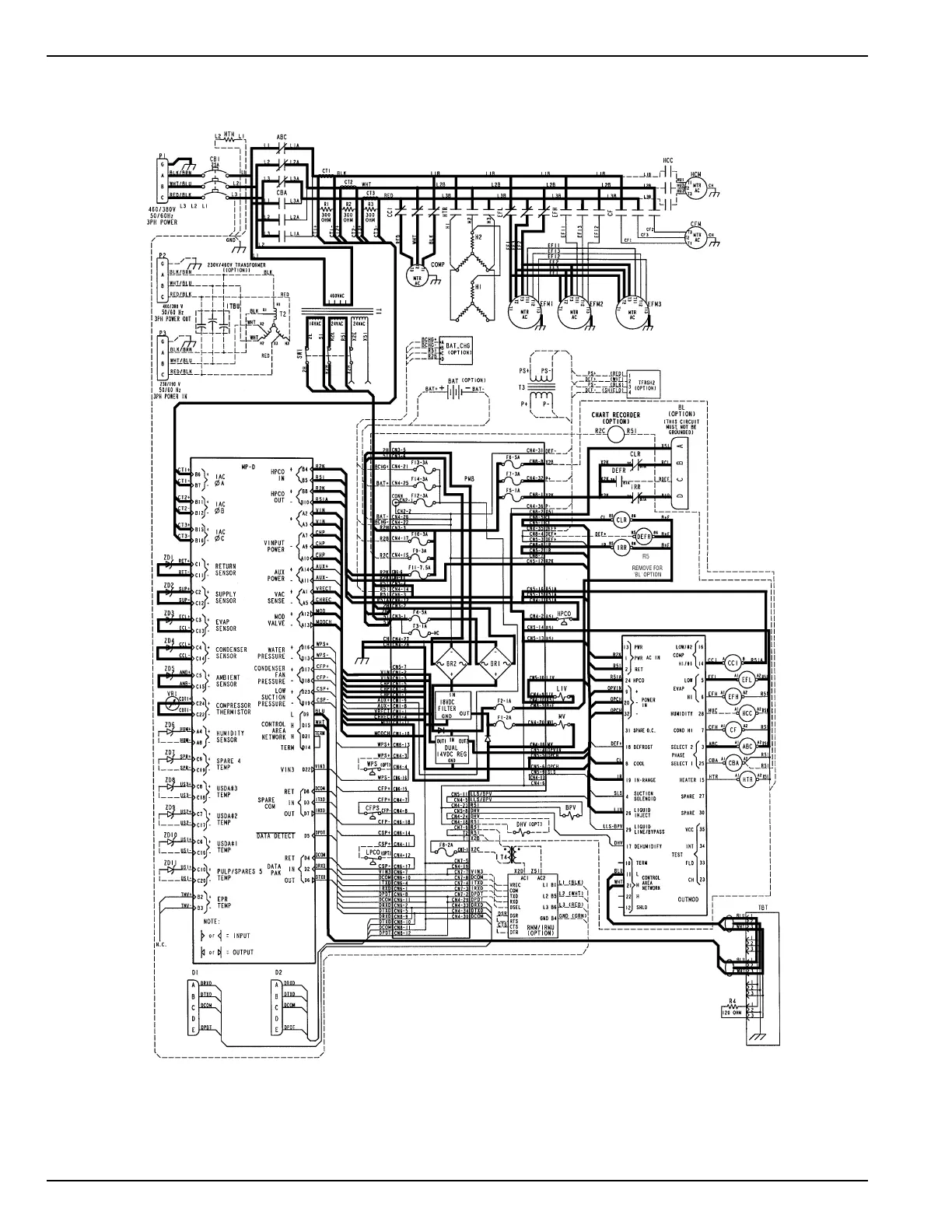

9-20 Schematic Circuit Tracings Electrical, Refrigeration and µP-D Menu Flow Diagrams
CSR-20 & CSR-40, September 1999
1
Typical model shown with three evaporator fans.
2
A complex algorithm will typically turn the condenser fan ON when the compressor discharge temperature is above
50 C (122 F) and increasing, or when the condenser temperature is above 35 C (95 F).
3
Evaporator fans operate on low speed when Economy Mode is set to ON in the Program menu of the µP-D controller
and the container temperature is In-range.
Modulation Mode
1
— Chill Load (Setpoint at -9.9 C [14.1 F] or Above); Condenser Fan OFF
2
; Economy Mode
ON
3
; Temperature In-range
