CSR-20 & CSR-40, September 1999
Unit Description Unit Illustrations 2-9

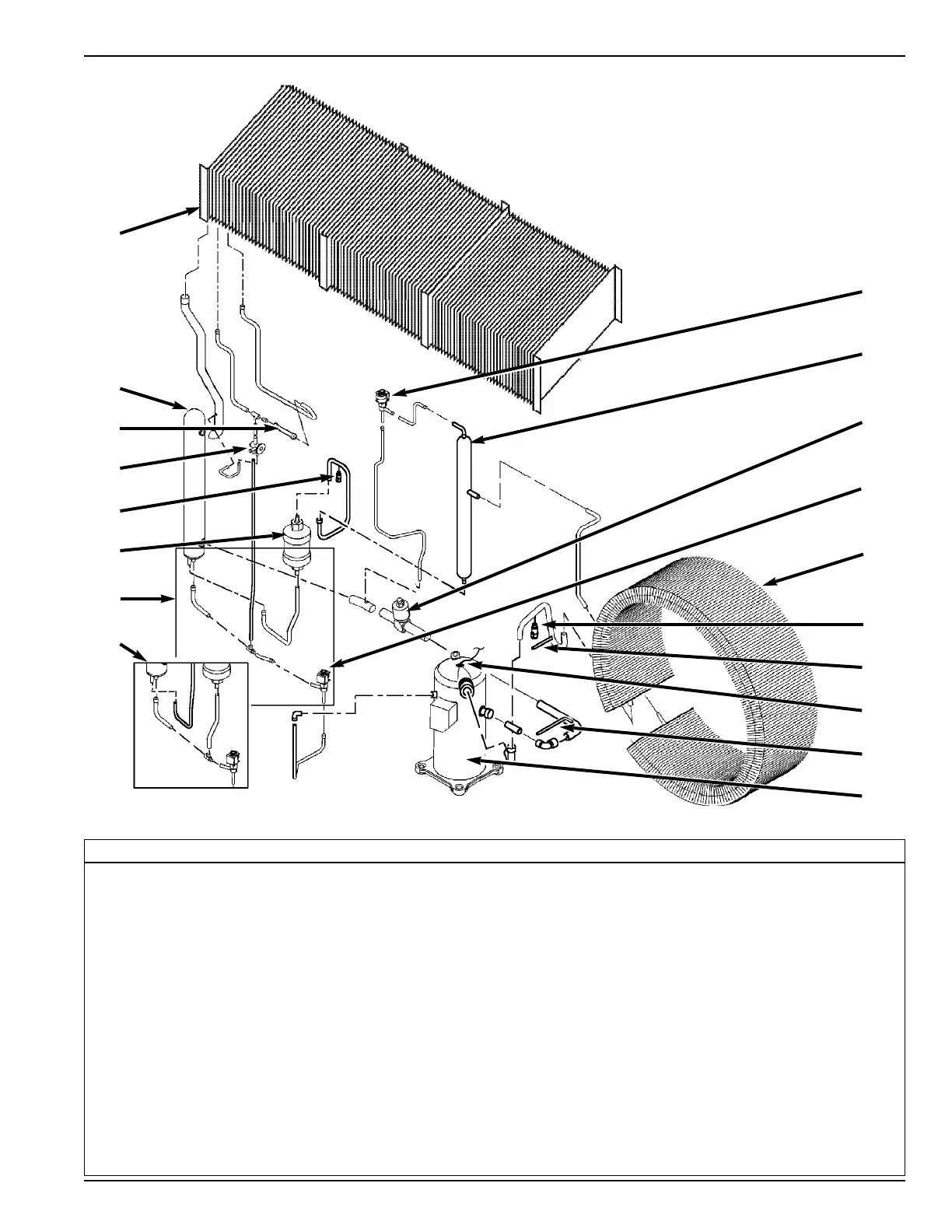

Standard Hermetic Refrigeration System
1. Evaporator Coil 16. Modulation Valve
2. Heat Exchanger 17 Receiver Tank
3. Tube (Standard) 18. Warm Gas Bypass Solenoid Valve
4. Expansion Valve
5. High Pressure Relief Valve
6. Filter Drier/In-line Filter (One-piece)
7. Liquid Line Piping on Units Built After 7/99
8. Liquid Line Piping on Units Built Before 7/99
9. Scroll Compressor
10. Suction Line Process Tube
11. Compressor Discharge Temperature Sensor
12. Discharge Line Process Tube
13. High Pressure Cutout Switch
14. Condenser Coil
15. Liquid Injection Solenoid Valve
1
2
3
4
5
6
7
8
18
17
16
15
14
13
12
11
10
9
To Next Page
General
