TOHATSU 115 User Manual

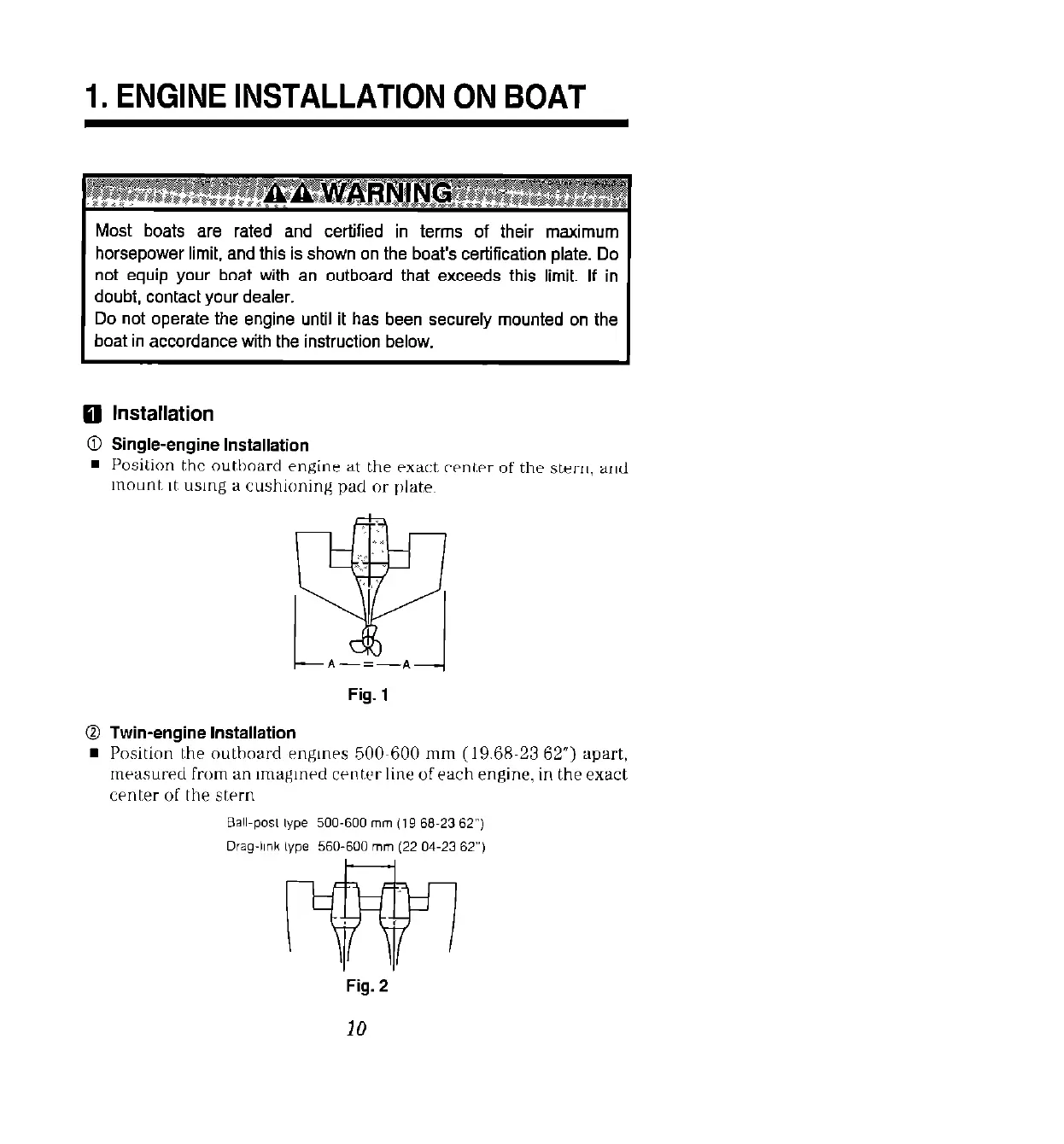

1. ENGINE INSTALLATION ON BOAT
Most boats are rated and certified in terms of their maximum
horsepower limit, and this is shown on the boat’s certification plate. Do
not equip your boat with an outboard that exceeds this limit. If in
doubt, contact your dealer.
Do not operate the engine until it has been securely mounted on the
boat in accordance with the instruction below.
m Installation
0 Single-engine Installation
n Position t,he out~lmard engine at the rxact, CP~I,W of the stern, and
mount, it, usmg a cushioning pad or plak
Fig. 1
0 Twin-engine Installation
n Position t,he outhoard mgm?s 500~600 mm (19.68-23 62”) apart,
rnrasurrd from an mlagmrd crnkr line ofeach engine, in the exact
cpntkr of the stkrn
Fig. 2

TOHATSU 115 Specifications

General

Steering	Remote
Trim and Tilt	Power Trim and Tilt
Horsepower	115 hp
Starting System	Electric
Fuel Induction System	Electronic Fuel Injection (EFI)
Fuel Type	Unleaded Gasoline
Full Throttle RPM Range	5, 000 - 6, 000 RPM
Gear Shift	Forward, Neutral, Reverse
Shaft Length	20" or 25"
Recommended Fuel	87 Octane
Oil Capacity	5.5 Liters (with filter)
