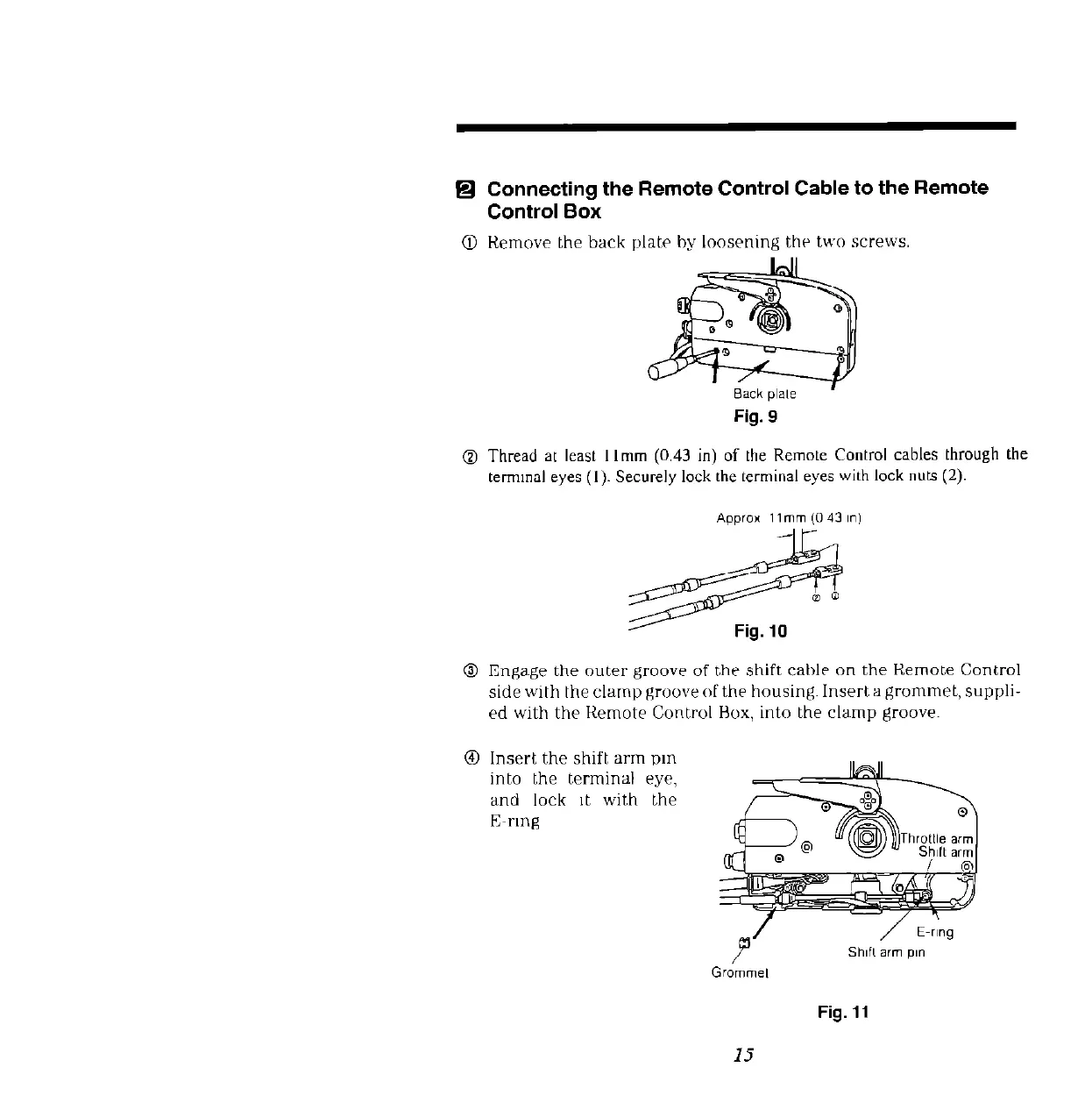

H Connecting the Remote Control Cable to the Remote
Control Box
0 Remove the back plat,e hy loosening thr t,wo screws.
Fig. 9
0 Thread at least I Imm (0.43 in) of the Remote Control cables through the
termmal eyes (I). Securely lock the terminal eyes with lock nutS (2).
@ Engage the outer groove of t,he shift cable on the Remote Control
side with the clamp groove of t,hr housing. Insert a grommet, suppli-
ed with the Remote Cont,rol Hex, into the clamp groove.
@ Insert the shift arm pm
into the terminal eye,
and lock It wit,h the
E~rlng
Fig. 11
15

TOHATSU 115 Specifications

General

Steering	Remote
Trim and Tilt	Power Trim and Tilt
Horsepower	115 hp
Starting System	Electric
Fuel Induction System	Electronic Fuel Injection (EFI)
Fuel Type	Unleaded Gasoline
Full Throttle RPM Range	5, 000 - 6, 000 RPM
Gear Shift	Forward, Neutral, Reverse
Shaft Length	20" or 25"
Recommended Fuel	87 Octane
Oil Capacity	5.5 Liters (with filter)
