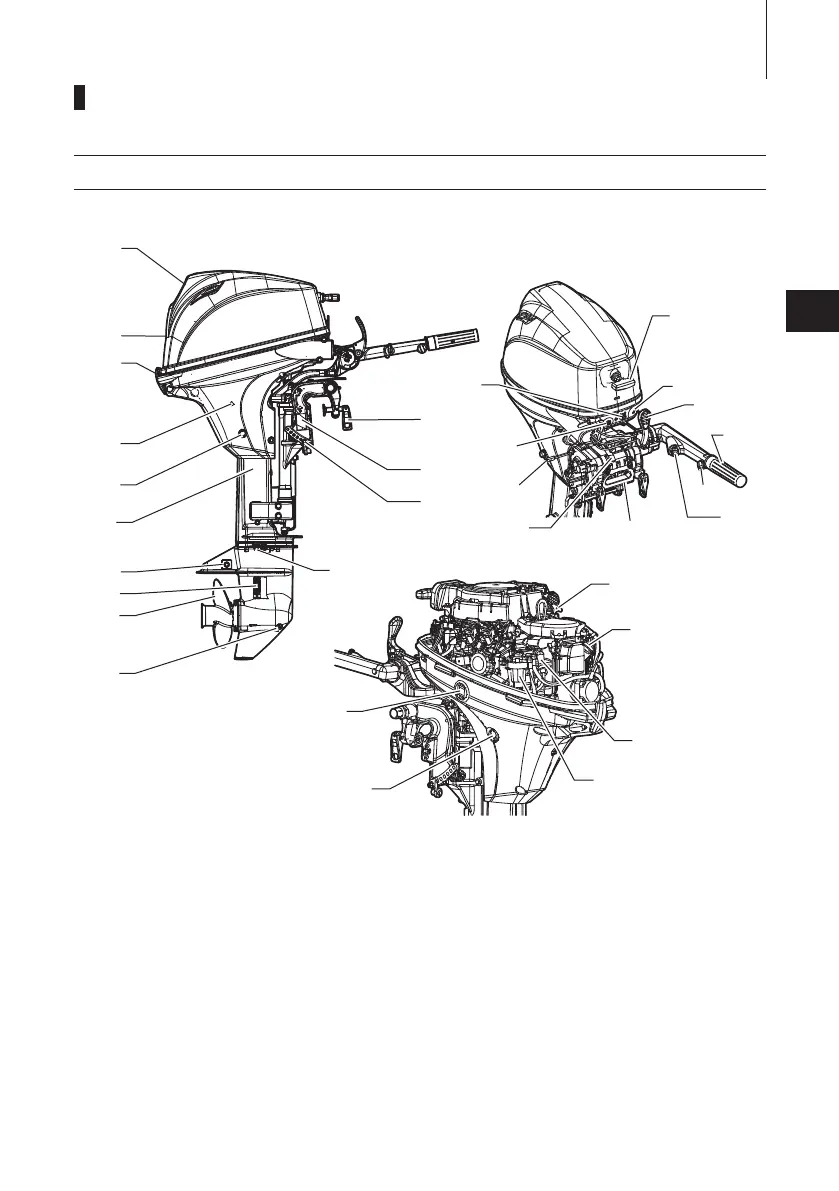

PARTS NAME
ENOM00303-0
MF, EF, EP, EFT, EPT
1
2
3
7
9
10
8
12
13
14
16
17
19
20
21
18
4
5
6
11
27
28
29
26
15
22
24
25
23
31
30
ENOF01202-1
1 Tilt Handle
2 Top Cowl
3 Bottom Cowl
4 Cooling Water Check Port
5 Oil Drain Bolt
6 Drive Shaft Housing
7 Anode
8 Water Inlet
9 Propeller
10 Oil Plug (Lower) (Fill)
11 Oil Plug (Upper) (Level)
12 Thrust Rod
13 Clamp Bracket
14 Clamp Screw
15 Stop Switch
*1
16 Throttle Friction Screw
*1
17 Throttle Grip
*1
18 Warning Lamp
19 Starter Switch
*2
20 Reverse Lock Lever
21 Starter Handle
22 Fuel Connector
23 Shift Lever
*1
24 Steering Friction Lever
25 Carrying Handle
26 Power Tilt Switch (EPT type
only)
27 Flushing Connector Cap
28 Fuel Filter
29 Spark Plug
30 Oil Filler Cap
31 Oil Level Gauge
*1: Tiller handle type only.
*2: Electrical starter type only.
