INSTALLATION22
5
EP/EFT/EPT type

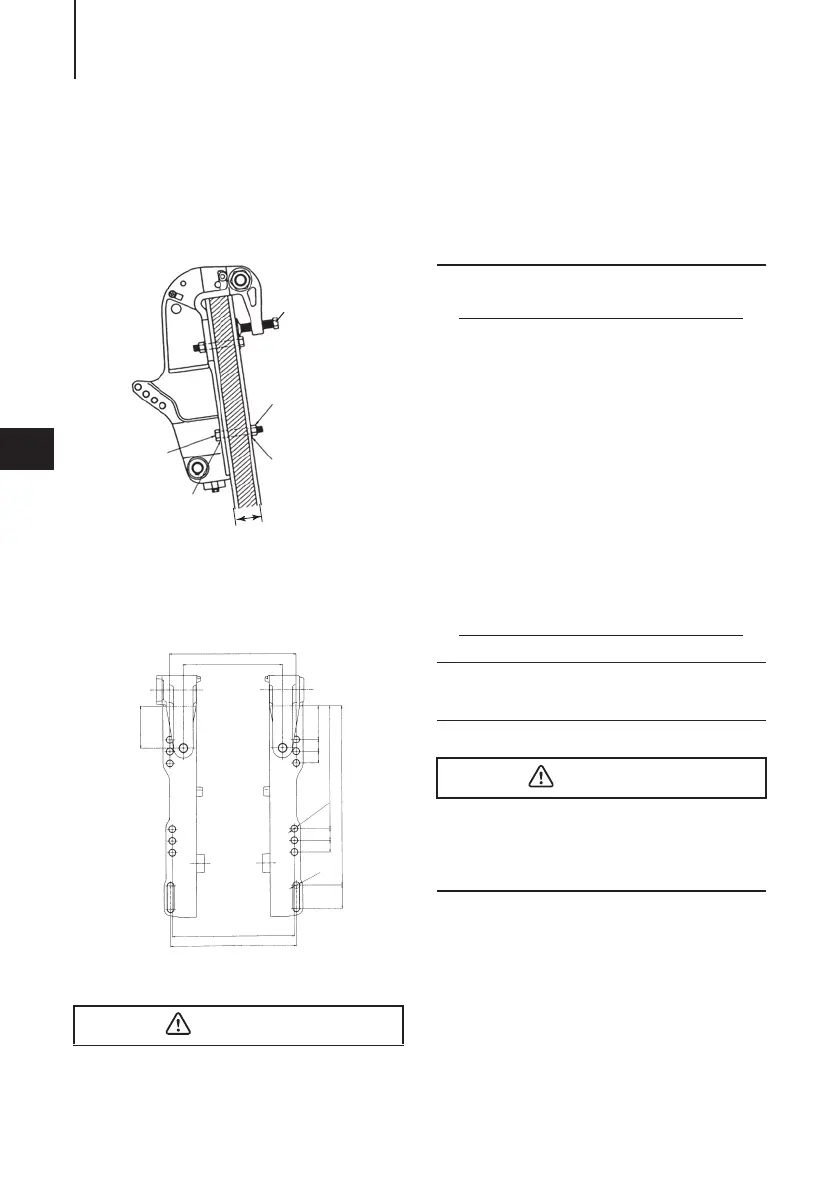

1. To attach the outboard motor to the
boat, use the bolts to secure the out-
board motor brackets on transom
board.
1. Clamp screw (EP/EFT)
2. Bolt (8 × 85)
3. Washer
4. Nut
a. 30 - 63 mm
View A
ENOW00008-A
z Mounting bolts should be installed with
the bolt head at inside surface of the
transom. Mounting bolts installed with the
threaded end at the inside surface of the
transom can cause personal injury.
z Tighten the bolts sufficiency, otherwise
falling down of outboard could be hap-
pened.
ENON00003-1
Notes
1. Apply sealing material, such as silicone
sealed between the bolts and the tran-
som board holes before tightening the
bolts.
2. Be sure to tighten the mounting bolt
nuts to the specified torque.
(30 N·m (3.0 kgf·m) 13 ft·lb)
3. For EP / EFT type, drill the holes in
transom board only at left and right of
lower side of clamp bracket, and
attach outboard motor with supplied
bolts.
For EPT type, drill the holes in transom
board at 4 points up and down, right
and left, and attach outboard motor
with supplied bolts.
ENOM00840-0
ENOW00100-B
Be careful not to loop the remote control
cables to a diameter of 406 mm (16 in) or
less. Otherwise, it affects the durability of
the cable.
CAUTION
4
1
2
3
3
a
ENOF00308-2
193
187
275
188
64
36
1818
1818
51
194
152
㱵
11
12-
㱵
10
ENOF00305-0
2. Remote control device
installation
CAUTION
