ENGINE OPERATION 45
7
2. Shift into neutral.
3. Raise the outboard motor to the tilt
up position.

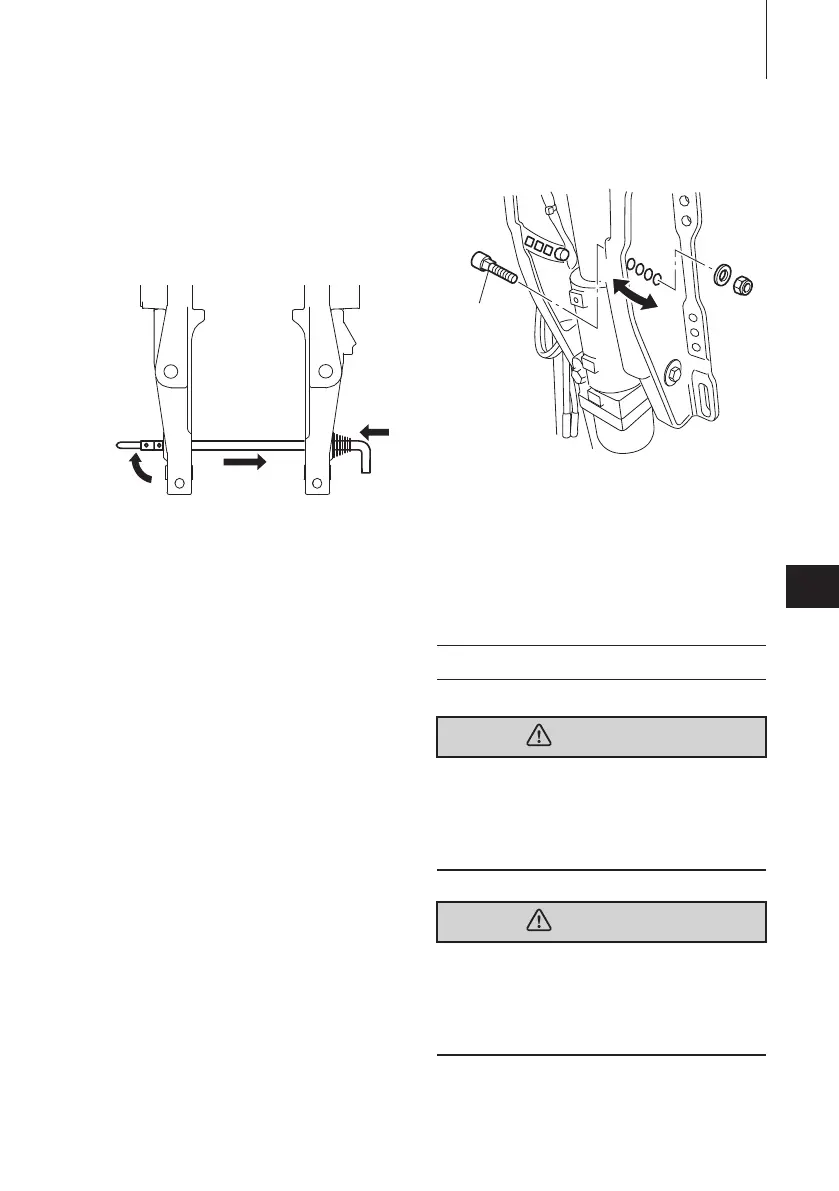

4. Change the thrust rod position as fol-
lowing picture.
1. Push in
2. Rise the stopper
3. Pull out
5. Reinstall the thrust rod securely.
6. Gentry lower the outboard.
Trim angle adjustment (Power tilt type)
The transom angle adjustment
1. Stop the engine
2. Operate the Power Tilt switch and
raise the outboard motor to the tilt
up position.
3. Lock the tilt with the Tilt stopper.
4. Change the trim lock pin position as
following picture.
1. Trim lock pin
2. Higher
3. Lower
5. Reinstall the trim lock pin securely.
6. Operate the Power Tilt switch and
lower the outboard.
ENOM00060-B
ENOW00055-0
Do not tilt up or down outboard motor when
swimmer(s) or passenger is near to prevent
them from being caught between outboard
motor body and clamp bracket in case the
outboard motor body falls.
ENOW00048-0
When tilting up or down, be careful not to
place your hand between the swivel bracket
and the stern bracket.
Be sure to tilt the outboard motor down
slowly.
3
2
1
ENOF01238-1
8. Tilt up and down
WARNING
WARNING
3
1
2
2
ENOF01426-0
