Tornado BR 18/1 MW User Manual

14
*Theoretical
Note:
1. Noise levels measured at a distance of 3.28 feet from machine and 5.25 feet above oor, when washing a
hard oor. Measurements recorded using a hand held meter.
2. Handle vibration does not exceed 2.5 m/s2, when operating on a smooth hard surface.
Technical Specications
99418 BR 18/1 MW
Specication U/M
Voltage V/Hz 120/60
Cleaning Width in/mm 18/457
Body Height in/mm 8.5/216
Handle Height in/mm 44/1118
Width in/mm 21.25/540
Length in/mm 15/381
Weight lb/kg 61/27.7
Motor Power 1 HP W/A 746/6.2
Brush Speed rpm 820
Solution Tank Gallon/Liter 1/3.79
Cleaning Capacity* sqft/hr/m
2
/hr 12000/1115
Noise Lever 69dB db(A) 69

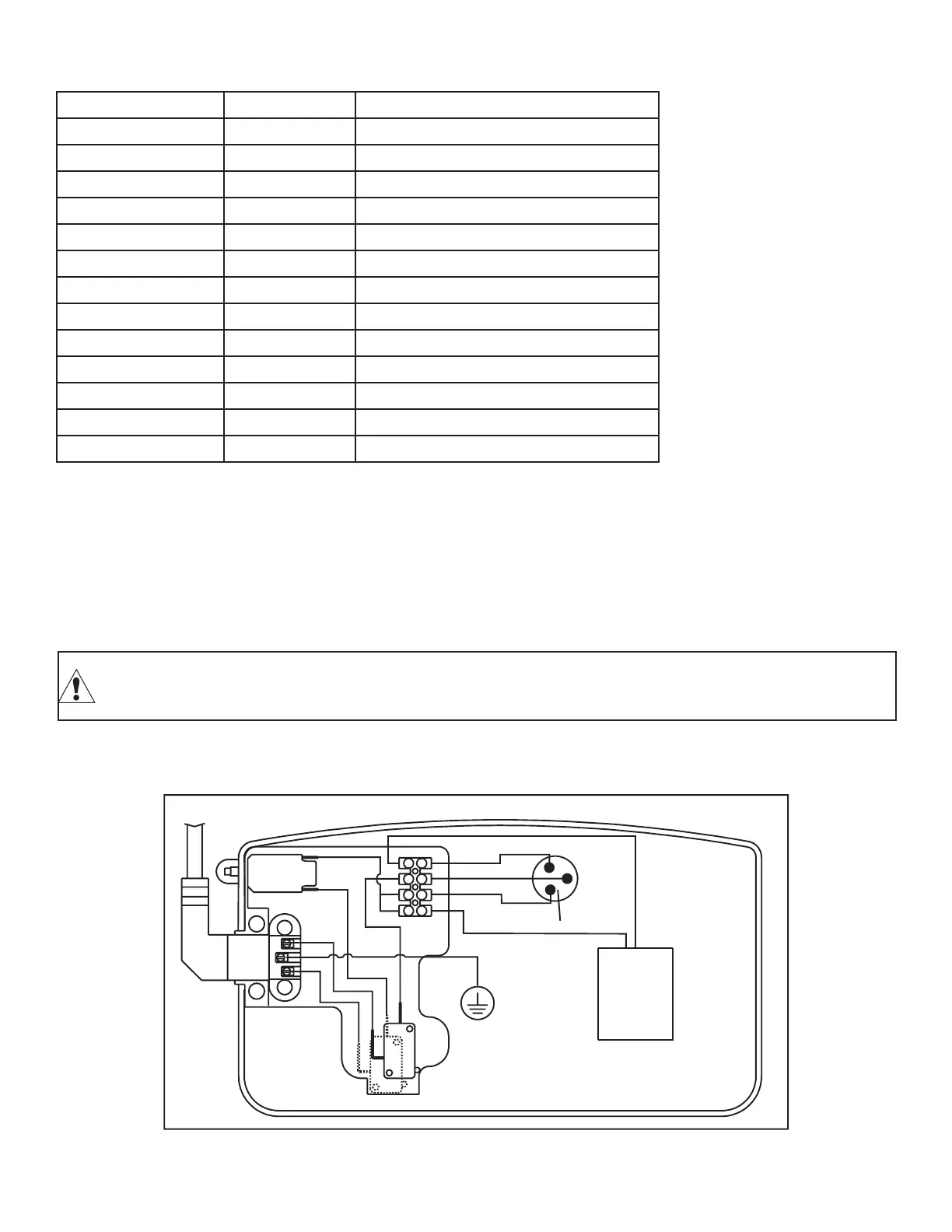

Electrical layout
Diagrams are made available in the cover (Power cord side) of the respective machine for service purpose.
Warning! Any service or attempt to service by persons other than authorized servicing agent will invalidate the
warranty.
CAPACITOR
928746
SC
BK
R
W
BR
BR
MOTOR
BR
BL
BL
BR/W
BL/BK
G/Y
N
RC
CBE
Abbreviations given in the diagram as listed:
Abbreviation /
Symbol
Abbreviation /
Symbol
CBE
BR
BL
W
BK
R
G/Y
SC
RC
N
Circuit Breaker
Brown
Blue
White
Black
Red
Green / Yellow
Starting coil
Running coil
Normal
Ground
Description Description

Tornado BR 18/1 MW Specifications

General

Brand	Tornado
Model	BR 18/1 MW
Category	Scrubber
Language	English
