17
Operation
Controls
Throttle Control Lever

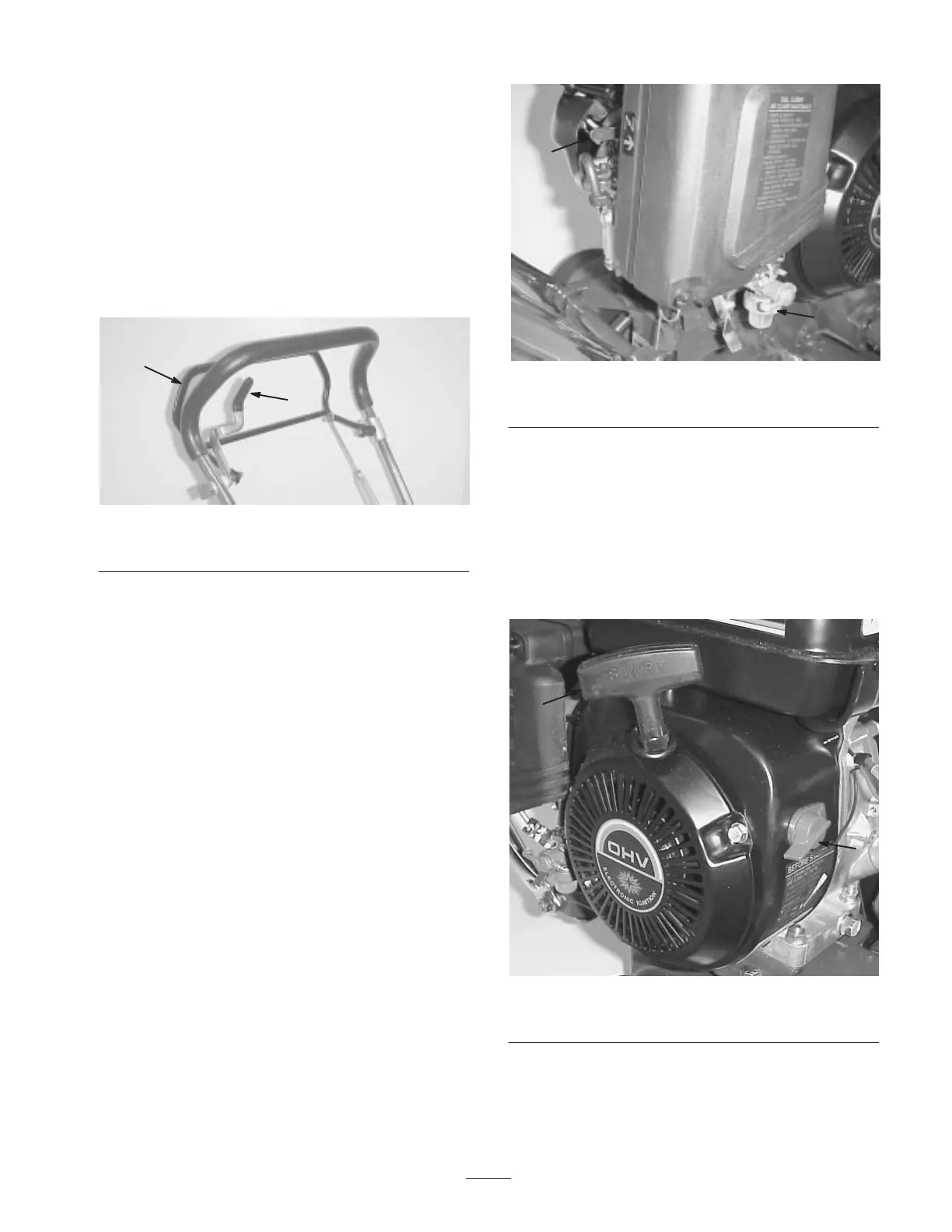

Throttle control lever (Fig. 19) connects to and operates
throttle linkage to carburetor. Control has two positions:
SLOW and FAST. Engine speed can be varied between
the two settings.
2
1
Figure 19
1. Throttle control lever 2. Clutch control bail
Clutch Control Bail
Clutch control bail (Fig. 19) controls traction and cutting
unit drive. Control has two positions: ENGAGE and
DISENGAGE. Move control to the right before engaging.
Choke Lever
Choke lever (Fig. 20) is located at rear of engine. Lever
has two positions: RUN and CHOKE. Move lever to
CHOKE position when starting a cold engine. After
engine starts move lever to RUN position.
Fuel Shut–off Valve
Fuel shut–off valve (Fig. 20) is located at right side of
engine. Valve has two positions: CLOSED and OPEN.
Move lever to closed position when storing machine.
Open valve before starting engine.
2
1
Figure 20
1. Fuel shut–off valve 2. Choke lever
Engine Stop Switch
Engine stop switch (Fig. 21) is located at front of engine.
Rotate to OFF to stop engine.
Recoil Starter
Pull recoil starter handle (Fig. 21) to start engine.
2
1
Figure 21
1. Engine stop switch 2. Recoil starter
