19
1

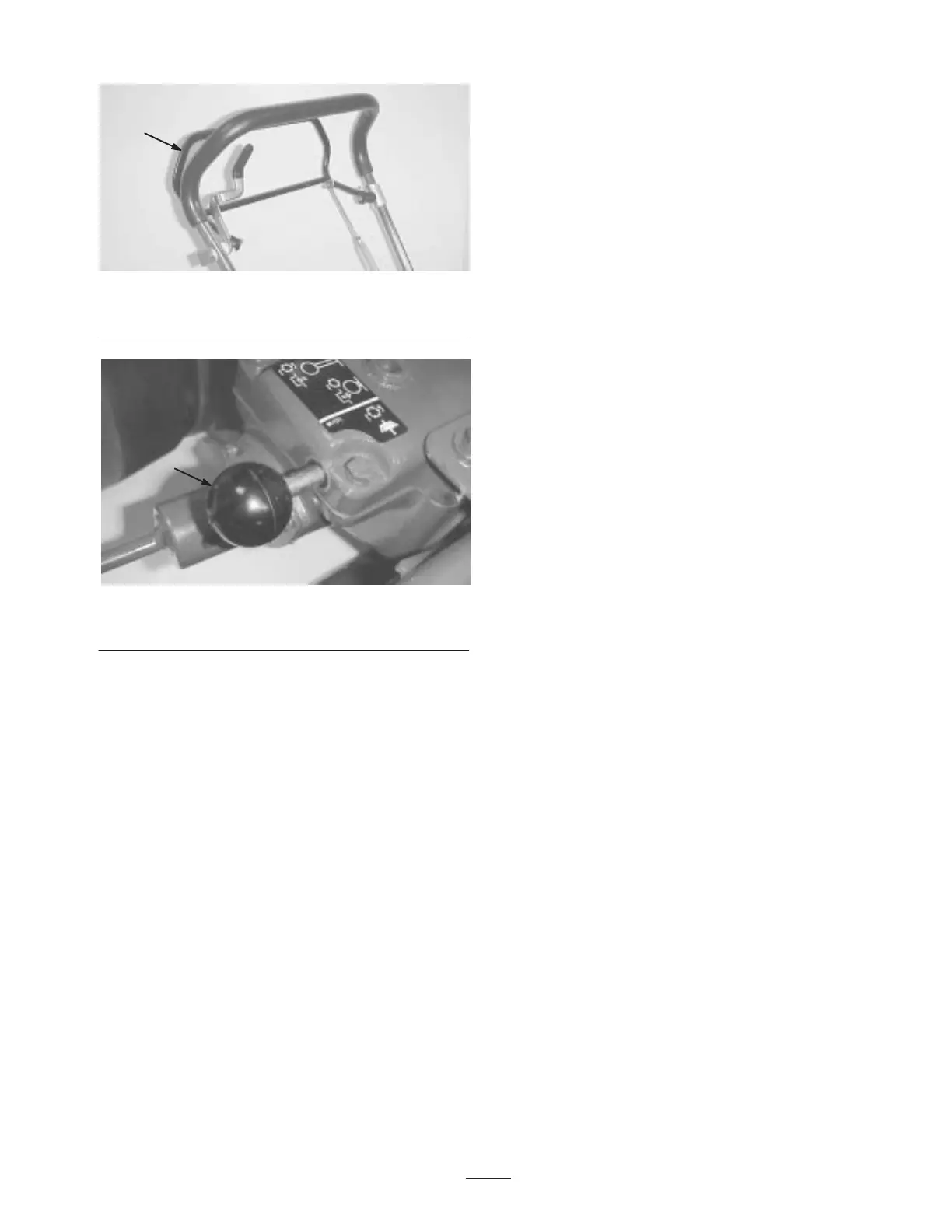

Figure 23
1. Traction clutch control bail
1
Figure 24
1. Reel drive control knob—Pull out to Engage
3. Raise the clutch control bail to handle, increase
throttle speed until the unit is traveling at the desired
ground speed, drive the mower out onto the green area,
drop the front of the mower down and commence
mowing operation.
After Mowing
1. Drive off green, release clutch control bail to
DISENGAGE, stop the engine and push the reel drive
control knob full in to DISENGAGE.
2. Empty the grass catcher of clippings, install grass
catcher and commence transport operation; refer to
Transport Operation.
3. Chock wheels if mower is left unattended on an
incline.
