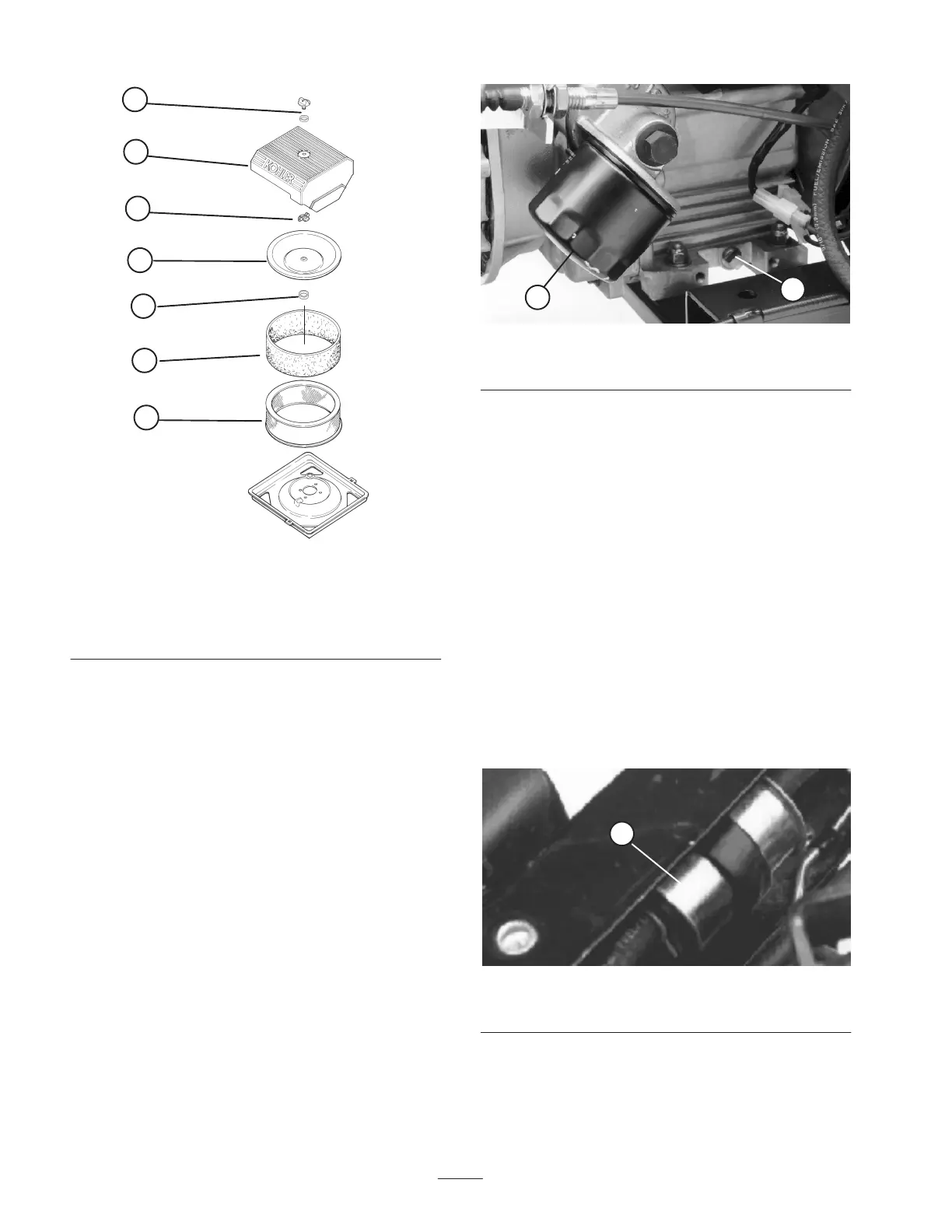

Figure 33
1. Knob & O–ring
2. Air cleaner cover
3. Wing nut
4. Inner cover
5. Breather seal
6. Foam pre–cleaner
7. Paper element
Note: With air cleaner disassembled, check air cleaner
components for damage. Replace if necessary.
1. Reinstall element with pre–cleaner, breather seal, inner
cover, wing nut, air cleaner cover, O–ring and knob.
2. Tighten knob 1/2 to 1 turn after knob contacts cover. Do
not overtighten.
Changing Engine Oil And Filter
Change oil and filter initially after the first 5 hours of
operation, thereafter, change oil and filter every 50 hours.
1. Raise bed and place safety support on extended lift
cylinder to hold up bed.
2. Remove drain plug and let oil flow into drain pan.
When oil stops, install drain plug.
3. Remove oil filter. Apply a light coat of clean oil to the
new filter seal before screwing it on. Screw filter on
until gasket contacts mounting plate, then tighten filter
and additional 1/2 turn. DO NOT OVER–TIGHTEN.
1
2
Figure 34
1. Engine oil drain plug 2. Engine oil filter
4. Add oil to crankcase, refer to Check Engine Oil.
Fuel System
Fuel Lines and Connections
Check lines and connections every 400 hours or yearly,
whichever comes first. Inspect for deterioration, damage, or
loose connections.
Fuel Filter
Replace filter canister after every 400 hours of operation.
1. Raise bed and place safety support on extended lift
cylinder to hold up bed.
2. Place a clean container under fuel filter.
3. Loosen R–clamp securing filter to frame.
1
Figure 35
1. Fuel filter
