43
3. Lift up on clutch pedal (Fig. 44) until it contacts frame.
4. Adjust clutch cable until ball joint end is aligned with
hole in clutch pedal pivot. Insert rod end into pivot hole.
5. While holding clutch pedal against frame, tighten jam
nuts securing cable to frame bracket.
6. Secure rod end to pedal pivot with nut previously
removed.
Adjusting Parking Brake
Check adjustment every 200 hours.
1. Remove rubber grip from parking brake lever (Fig. 48)
1
2

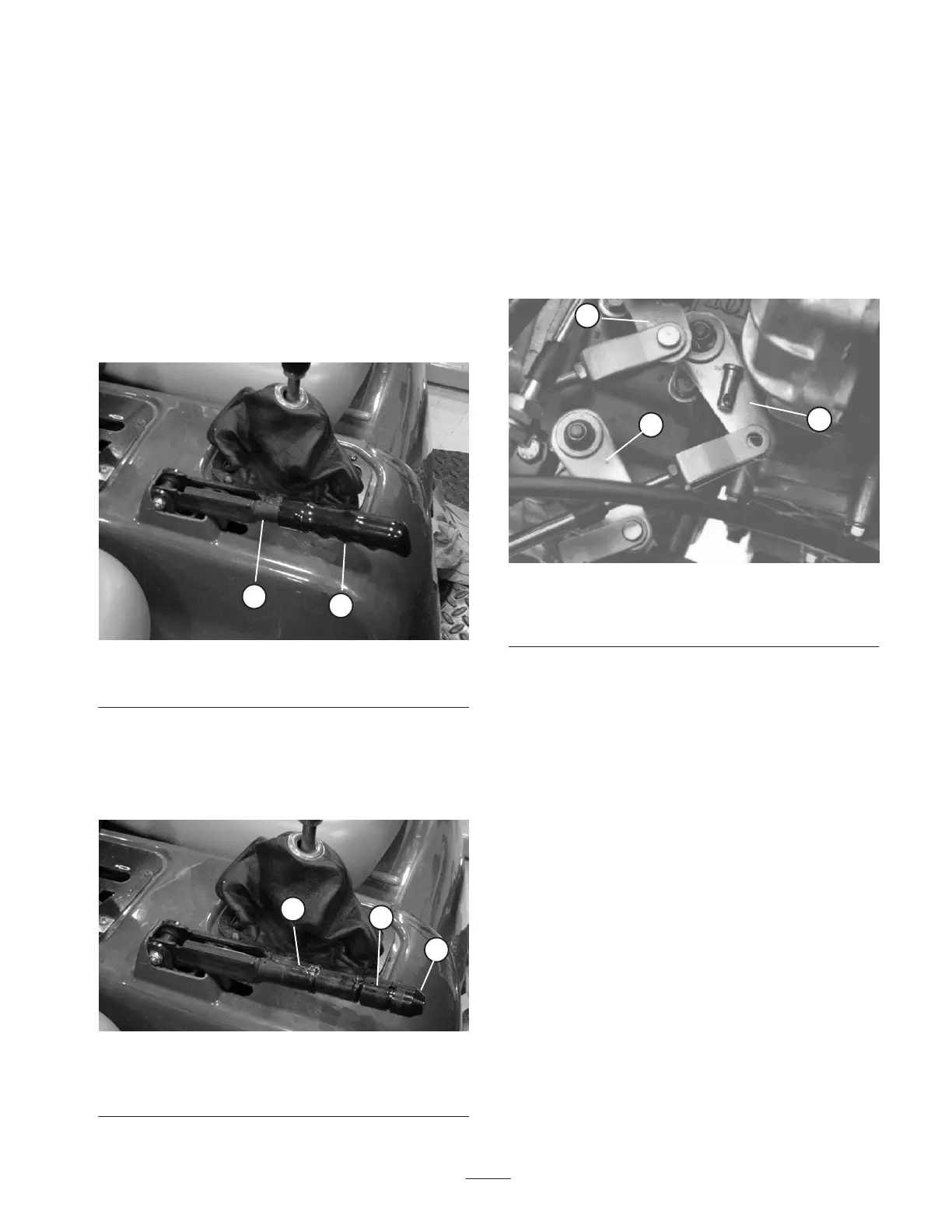

Figure 48
1. Parking brake lever 2. Grip
2. Loosen set screw securing knob to parking brake lever
(Fig. 49).
3. Rotate knob until a force of 30–40 lbs. is required to
actuate lever.
1
3
2
Figure 49
1. Parking brake lever
2. Knob
3. Set screw
4. Tighten set screw after adjustment has been attained.
5. Install rubber grip onto parking brake lever.
Adjusting Shift Cables
Check adjustment every 200 hours.
1. Move shift lever to Neutral position.
2. Remove clevis pins securing shift cables to transaxle
shift arms.
1
2
3
Figure 50
1. Shift arm (1st – Rev.)
2. Shift arm (2nd – 3rd)
3. Shift arm (High–low)
3. Loosen clevis jam nuts and adjust each clevis so cable
free play is equal forward and backward relative to hole
in transaxle shift arm (With transaxle lever free play
taken up in same direction).
4. Reinstall clevis pins and tighten jam nuts after
adjustments have been attained.
Adjusting High–low Cable
Check adjustment every 200 hours.
1. Remove clevis pin securing High–Low cable to
transaxle.
2. Loosen clevis jam nut and adjust clevis so clevis hole
aligns with hole in transaxle bracket.
3. Reinstall clevis pin and tighten jam nut after adjustment
has been attained.
