Toro 20334 User Manual

ReplacingtheBlade
ServiceInterval:Yearly
Important:Youwillneedatorquewrenchto
installthebladeproperly.Ifyoudonothavea
torquewrenchorareuncomfortableperforming
thisprocedure,contactanAuthorizedService
Dealer.
Examinethebladewheneveryourunoutoffuel.Ifthe
bladeisdamagedorcracked,replaceitimmediately.
Ifthebladeedgeisdullornicked,haveitsharpened
andbalanced,orreplaceit.
WARNING
Thebladeissharp;contactingthebladecan
resultinseriouspersonalinjury.
Weargloveswhenservicingtheblade.
1.RefertoPreparingforMaintenance(page22).
2.Tipthemachineontoitssidewiththeairlterup.
3.Useablockofwoodtoholdthebladesteady
(Figure32).

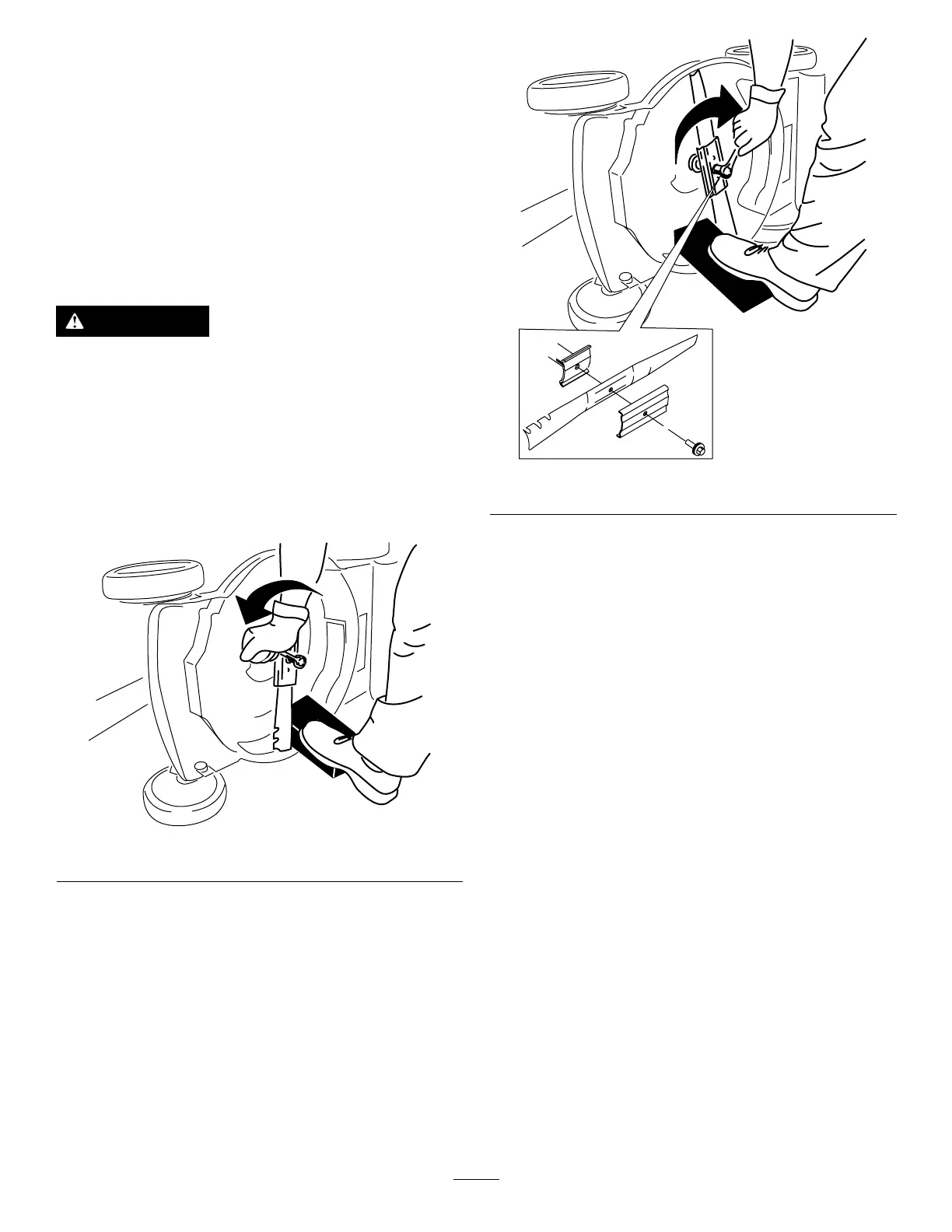

g231389
Figure32
4.Removetheblade,savingallmountinghardware
(Figure32).
5.Installthenewbladeandallmountinghardware
(Figure33).
g231390
Figure33
Important:Positionthecurvedendsofthe
bladetopointtowardthemachinehousing.
6.Useatorquewrenchtotightenthebladebolt
to82N∙m(60ft-lb).
Important:Abolttorquedto82N∙m(60
ft-lb)isverytight.Whileholdingtheblade
withablockofwood,putyourweight
behindtheratchetorwrenchandtightenthe
boltsecurely.Thisboltisverydifcultto
overtighten.
26

Toro 20334 Specifications

General

Brand	Toro
Model	20334
Category	Lawn Mower
Power Source	Gasoline
Engine	Briggs & Stratton
Engine Displacement	163 cc
Engine Type	4-Cycle
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge	Yes
Deck Material	Steel
Weight	80 lbs
Start Type	Recoil
Oil Capacity	20 oz
Cutting Width	22 inches
Drive System	Rear-Wheel Drive
Fuel Capacity	1.0 quart
Wheel Size	10 inches rear
Warranty	2-Year Full Warranty
Cutting Height	1.0 to 4.0 inches
