EngineMaintenance
ServicingtheAirCleaner
Note:Servicetheaircleanermorefrequently(every
fewhours)ifoperatingconditionsareextremelydusty
orsandy.
RemovingtheElements
1.Parkthemachineonalevelsurfaceand
disengagetheblade-controlswitch(PTO).
2.Engagetheparkingbrake,shutofftheengine,
removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Cleanaroundtheair-cleanercovertoprevent
dirtfromgettingintotheengineandcausing
damage.

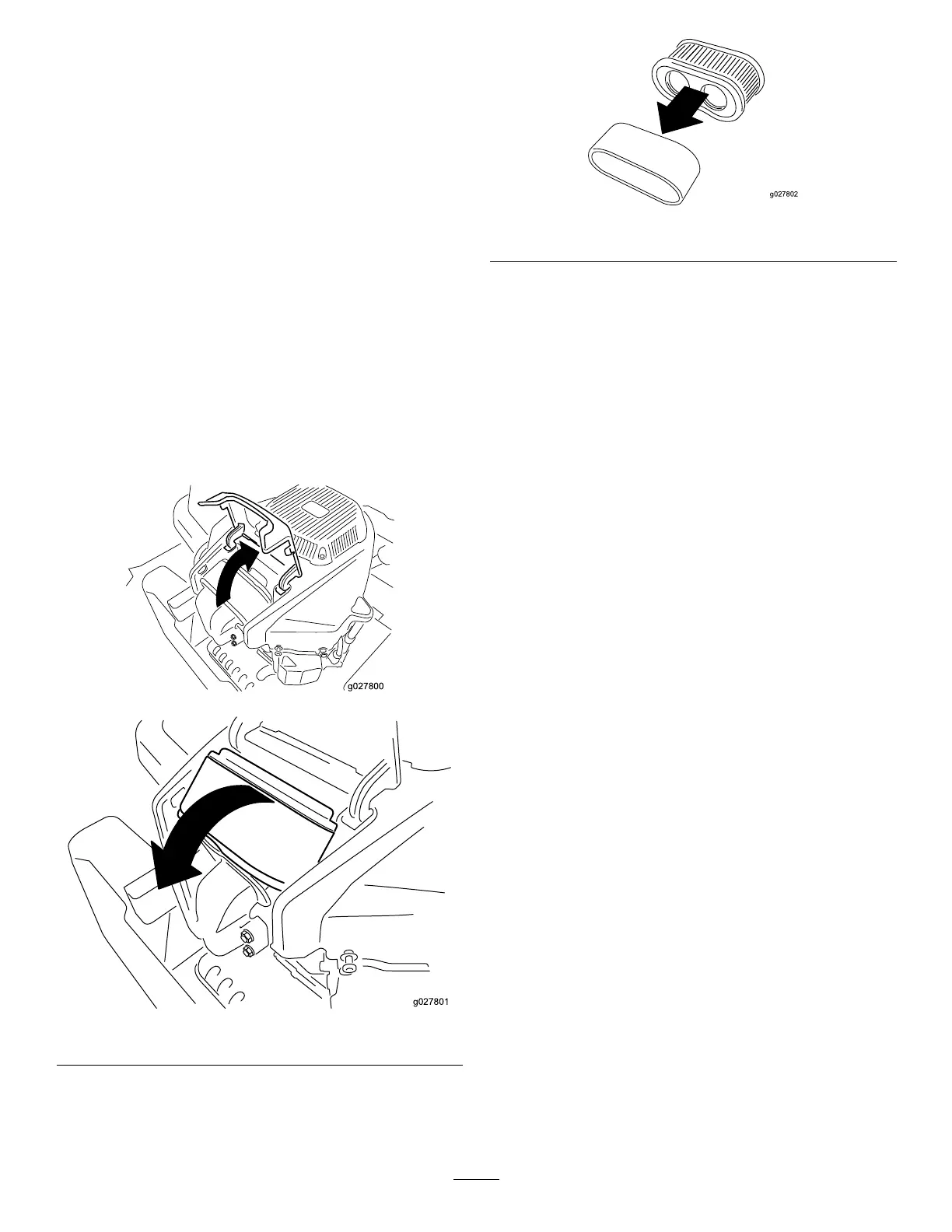

4.Liftthecoverandrotatetheair-cleanerassembly
outoftheengine(Figure26).
g027800
g027801
Figure26
5.Removethefoamelementfromthepaper
element(Figure27).
g027802
Figure27
ServicingtheFoamElement
ServiceInterval:Every25hours/Monthly(whichever
comesrst)—Cleantheaircleaner
foamelement(moreoftenindusty,
dirtyconditions).
Every100hours/Yearly(whichevercomes
rst)—Replacetheaircleanerfoamelement
(moreoftenindusty,dirtyconditions).
Washthefoamelementwithwaterandreplacethe
foamelementifitisdamaged.
ServicingthePaperElement
ServiceInterval:Every100hours/Yearly(whichever
comesrst)—Servicetheaircleaner
paperelement(moreoftenindusty,
dirtyconditions).
Every200hours/Every2years(whichever
comesrst)—Replacetheaircleanerpaper
element(moreoftenindusty,dirtyconditions).
1.Lightlytaptheelementonaatsurfaceto
removedustanddirt.
2.Inspecttheelementfortears,anoilylm,and
damagetotheseal.
Important:Donotcleanthepaperelement
withpressurizedairorliquids,suchas
solvent,gas,orkerosene.Replacethepaper
elementifitisdamagedorcannotbecleaned
thoroughly.
31

Questions and Answers:

Toro 74790 Specifications

General IconGeneral
Engine Displacement852cc
Start TypeElectric
Cutting Width60 inches
Cutting Height1.0 to 5.5 inches
Deck MaterialSteel
