Toro 74790 User Manual

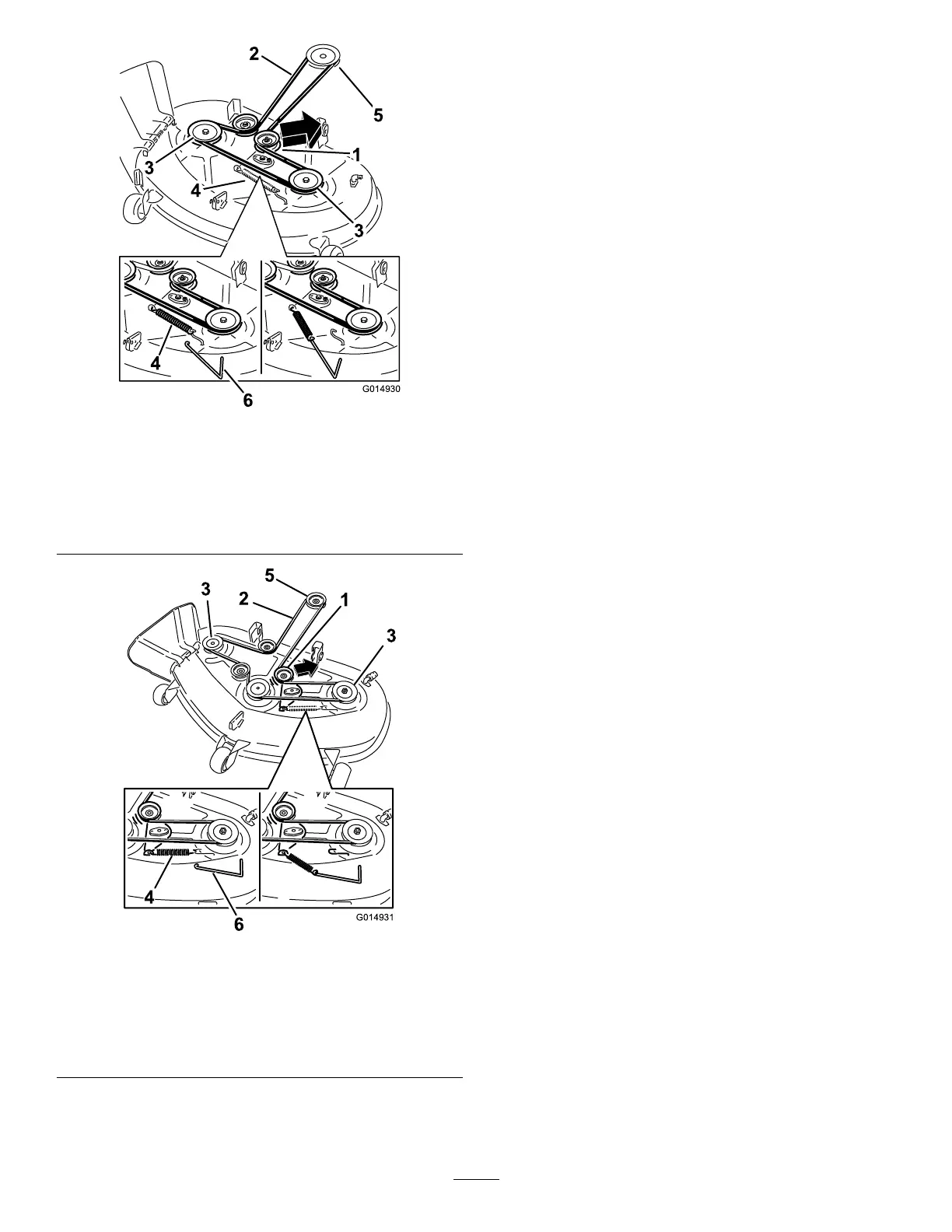

g014930
Figure58
MowerDeckswith2Blades
1.Idlerpulley
4.Spring
2.Mowerbelt
5.Enginepulley
3.Outsidepulley6.Spring-removaltool
g014931
Figure59
MowerDeckswith3Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
5.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure59).
6.Usingaspring-removaltool,(Toropartno.
92-5771),installtheidlerspringoverthedeck
hook,andplacetensionontheidlerpulleyand
mowerbelt((Figure58andFigure59).
InstallingtheMower
1.Parkthemachineonalevelsurfaceand
disengagetheblade-controlswitch.
2.Ensurethattheparkingbrakeisengaged,
shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Slidethemowerunderthemachine.
4.Lowertheheight-of-cutlevertothelowest
position.
5.Lifttherearofthemowerdeckandguidethe
hangerbracketsovertherearliftrod(Figure57).
6.Attachthefrontsupportrodtothemowerdeck
withtheclevispinandhairpincotter(Figure56).
7.Installthemowerbeltontotheenginepulley;
refertoReplacingtheMowerBelt.
