AdjustingtheAnti-Scalp
Rollers(60-inchMowerDecks
only)
Wheneveryouchangetheheight-of-cut,itisrecommended
toadjusttheheightoftheanti-scalprollers.
1.Disengagetheblade-controlswitch(PTO),movethe
motion-controlleverstotheneutral-lockedposition
andsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Removethenutandboltpositiontheanti-scalprollers
andinstallthenutandbolt.
4.Ensurethespacersandbushingsareinstalled(Figure
29).
g018324

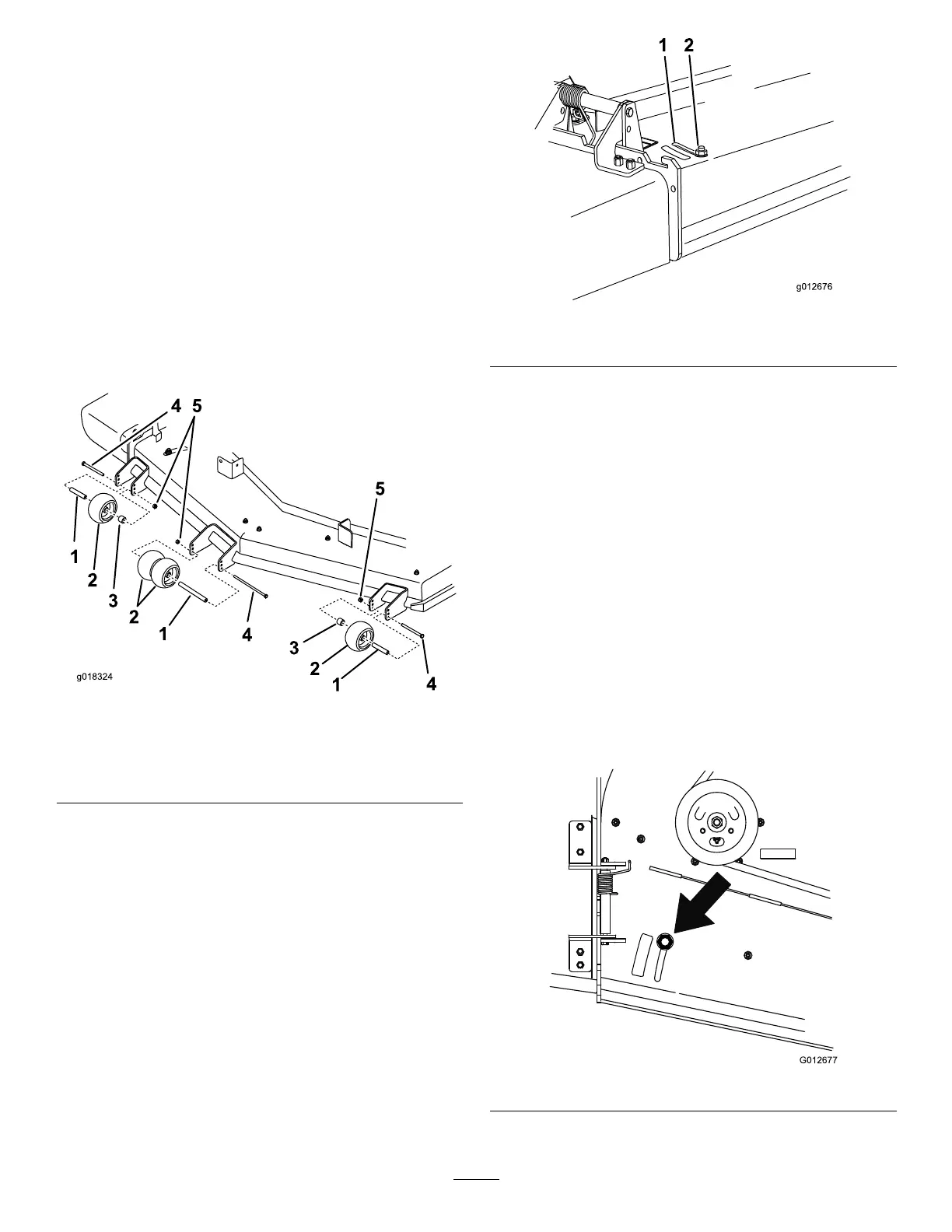

Figure29
1.Bushing4.Bolt
2.Anti-scalproller5.Nut
3.Spacer
AdjustingtheFlowBafe
Themower-dischargeowcanbeadjustedfordifferenttypes
ofmowingconditions.Positionthecamlockandbafeto
providethebestqualityofcut.
1.DisengagethePTO,movethemotion-controlleversto
theneutral-lockedposition,andsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Toadjustthebafe,loosenthenut(Figure30).
4.Adjustthebafeandnutintheslottothedesired
dischargeowandtightenthenut.
g012676
1 2
Figure30
1.Slot
2.Nut
PositioningtheFlowBafe
Thefollowingguresareonlyforrecommendeduse.
Adjustmentswillvarybygrasstype,moisturecontent,and
theheightofthegrass.
Note:Iftheenginepowerdrawsdown,andthemower
groundspeedisthesame,openupthebafe.
PositionA
Thisisthefull,rearposition(seeFigure31).Thesuggested
useforthispositionisasfollows:
•Inshort,lightgrassmowingconditions
•Indryconditions
•Smallergrassclippings
•Propelsgrassclippingsfartherawayfromthemower
G012677
Figure31
26
