AdjustingtheHandle
Height
Note:Themachineisshippedwiththehandle
adjustedtothelowestposition.Themachineis
normallyoperatedwiththehandletelescopedoutto
itsmaximumheight.
1.Loosenthe3carriageboltsandnutssecuring
eachsideofthehandleinthehandleclamps
(Figure24).

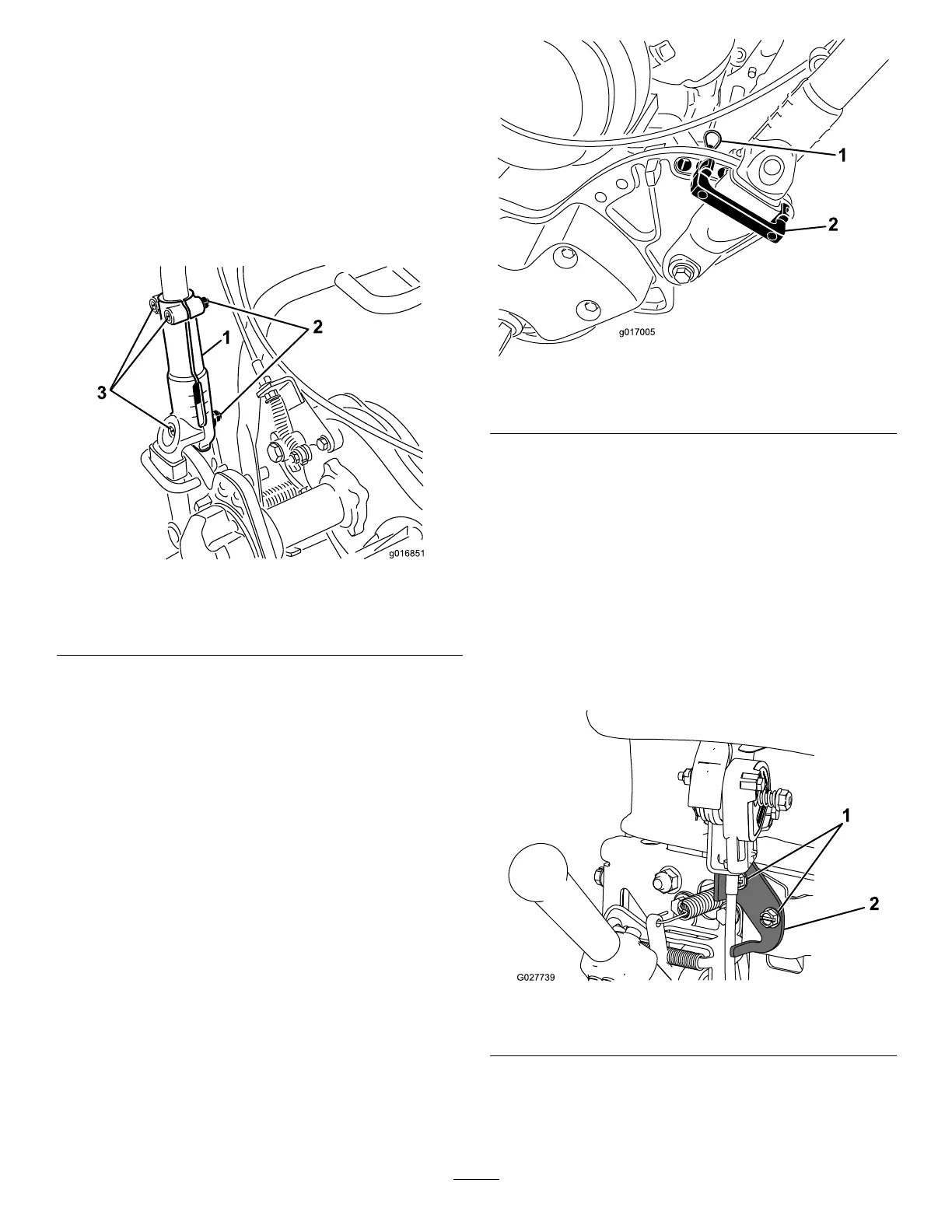

g016851
Figure24
1.Handleclamp
3.Carriagebolts
2.Nut
2.Pulluponthehandleslowlyandevenlyoneach
sideuntilitisinthedesiredoperatingposition.
3.Tightenthecarriageboltsandnutstolockthe
adjustment.
AdjustingtheHandleAngle
1.Removethehairpincottersfromthehandle
retainersoneachsideofthemachine(Figure
25).
g017005
Figure25
1.Hairpincotter2.Handleretainer
2.Whilesupportingthehandle,removethehairpin
cottersfromeachsideandpivotthehandleto
thedesiredoperatingposition(Figure25).
3.Installthehandleretainersandhairpincotters.
AdjustingtheThrottle
Control
1.Removetheconsolecover.
2.Loosenthe2fastenerssecuringthethrottle
control(Figure26).
g027739
Figure26
1.Fasteners2.Throttlecontrol
3.Adjustthethrottlecontroltothedesiredposition.
4.Tightenthethrottle-controlfasteners.
5.Installthepreviouslyremovedconsolecover.
