BrakeMaintenance
Adjustingthe
Service/ParkingBrake
Iftheservice/parkingbrakeslipswhenoperated,
adjustthecableasfollows:
1.Movetheservice/parkingbrakelevertotheOFF
position.
2.Removethecontrolpanel.
3.Toincreasethecabletension,loosentheupper
cablejamnutandtightenthelowercablejam
nut(Figure42)untilaforceof156N(35lb)
appliedtothebrake-leverhandleisrequiredto
releasetheparking-brakelatch.
Important:Donotoveradjustthebrake,as
thebrakebandmaydrag.

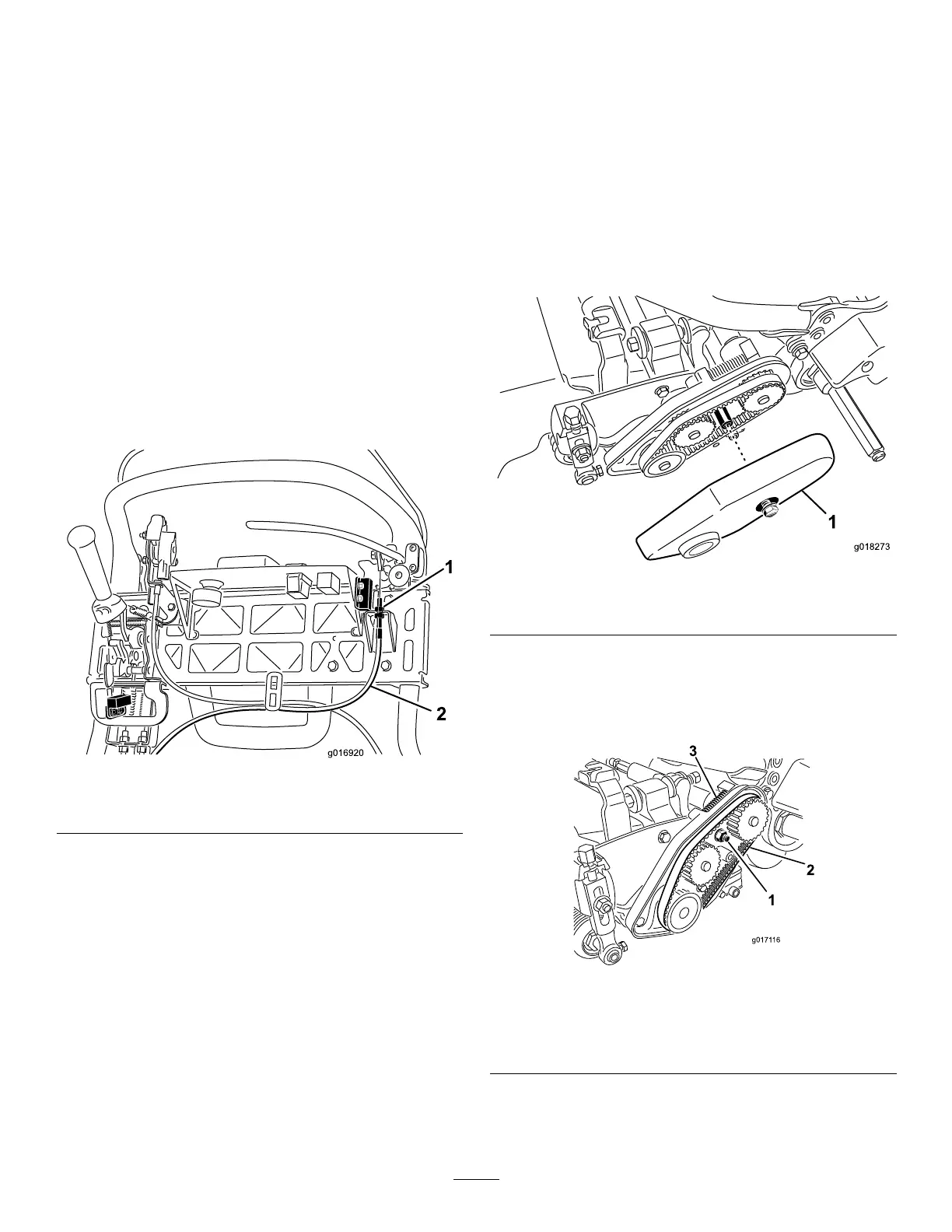

g016920
Figure42
1.Jamnuts
2.Service-brakecable
BeltMaintenance
InspectingtheReel-Drive
Belt
ServiceInterval:Every1,000hours
1.Shutofftheengineandremovethekey.
2.Loosentheangeboltthatsecuresthebelt
coverandremovethebeltcovertoexposethe
belt(Figure43).
g018273
Figure43
1.Beltcover
3.Performhefollowingstepstoadjustthebelt
tension:
A.Loosenthebearing-housingmountingnut
(Figure44).
g017116
Figure44
1.Bearing-housingmounting
nut
3.Compressionspring
2.Reel-drivebelt
B.Usinga16mm(5/8inch)wrench,rotatethe
bearinghousingtoensurethatitoperates
freely.
35
