the side panel co v er , release the 2 latc hes and pull
out on it.

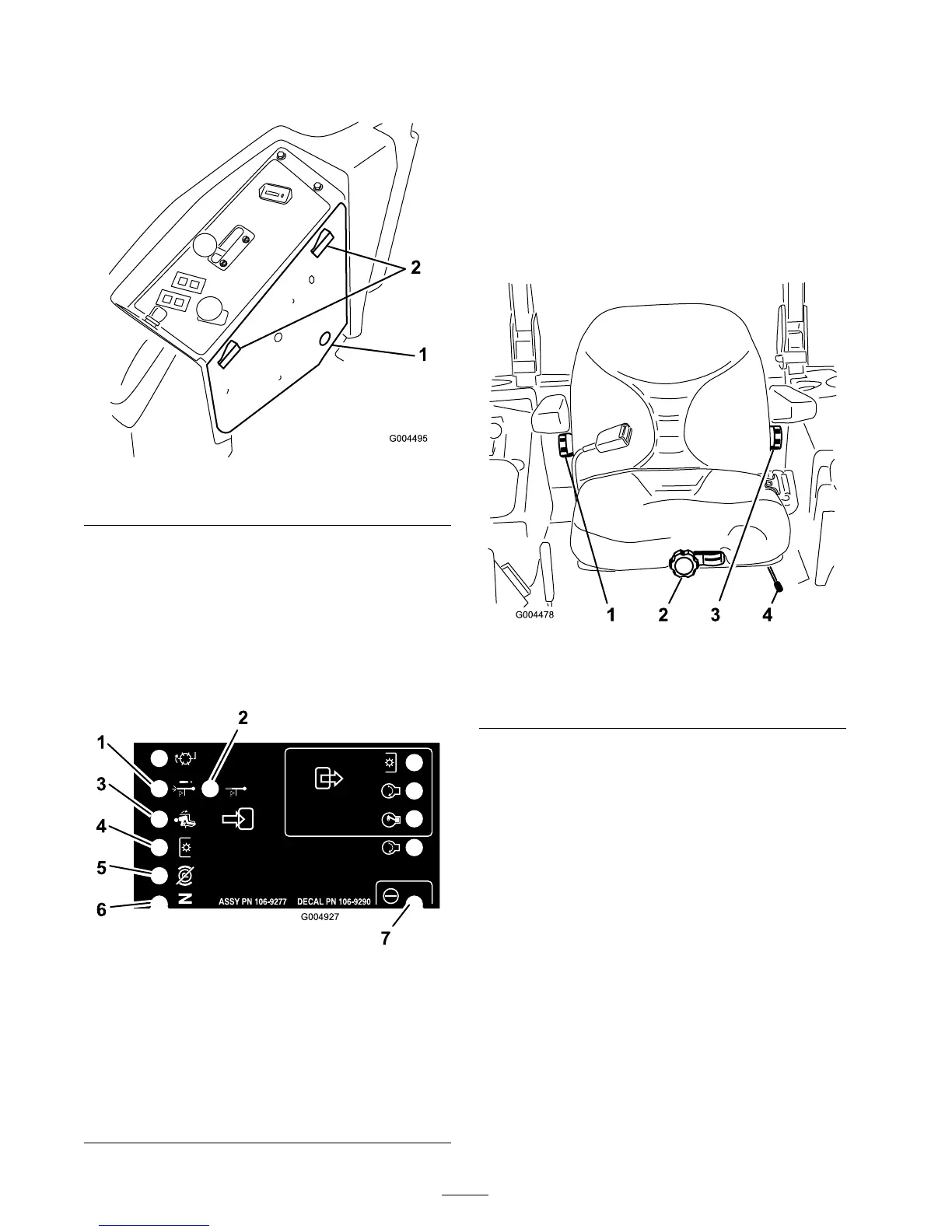

Figure 30
1. Side panel cover 2. Latches
On the face of the SCM are 11 LEDs that
illuminate to indicate v arious system conditions .
Sev en of these lights can be used b y the operator
for system diagnosis . R efer to Figure 31 for a
description of what eac h light means . F or details
on using the rest of the SCM functions , refer to the
Ser vice Manual , a v ailable through y our A uthorized
T oro Distributor .
Figure 31
1. High temperature shutdown—the engine temperature has
exceeded safe levels and the engine has been shut down.
Check the cooling system.
2. High temperature warning—the engine temperature is
approaching unsafe levels and the mower deck has been
shut down. Check the cooling system.
3. Operator is in the seat
4. The PTO is On
5. The parking brake is not engaged
6. Controls are in Neutral
7. The SCM is receiving power and is operational
Positioning the Seat
Changing the Seat Position
T he seat can mo v e forw ard and bac kw ard.
P osition the seat where y ou ha v e the best control
of the mac hine and are most comfor table .
1. T o adjust, mo v e the lev er sidew a ys to unloc k
the seat ( Figure 32 ).
Figure 32
1. Back rest knob 3. Lumbar support
adjustment knob
2. Seat suspension knob 4. Seat position adjustment
lever
2. Slide the seat to the desired position and
release lev er to loc k in position.
3. V erify that the seat has loc k ed into place b y
attempting to mo v e it bac k and for th.
Changing the Seat Suspension
T he seat can be adjusted to pro vide a smooth and
comfor table ride . P osition the seat where y ou are
most comfor table .
Without sitting on the seat, tur n the knob in
front either direction to pro vide the best comfor t
( Figure 32 ).
36
