Toro LC168F User Manual

24
Engine Service – Lower End

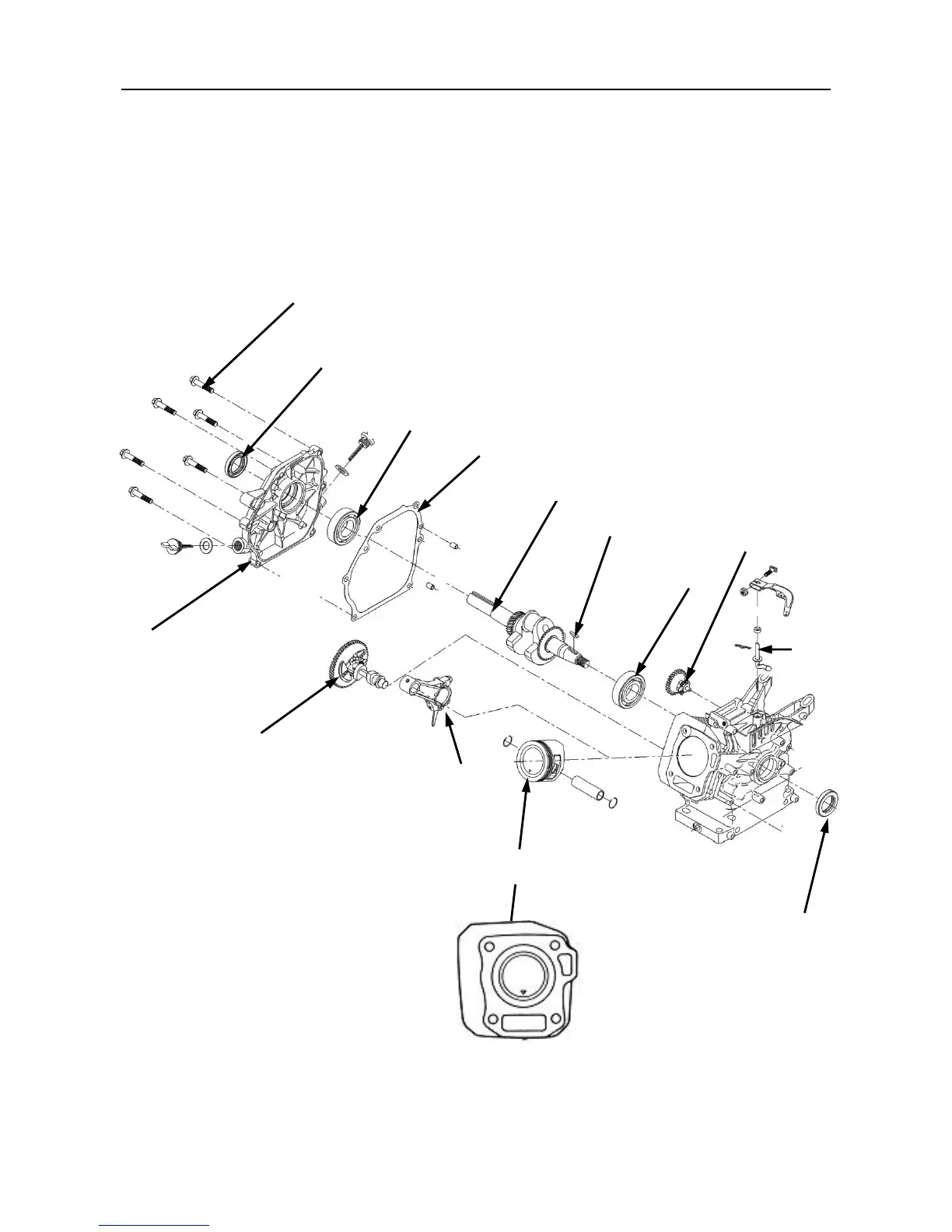

Crankcase Exploded View and Service Information
Oil drain bolt
25-30N·m
Connecting rod bolt (2)
10-12N ·
m
（ 1.2kg-
m）
Assembly:
Face the sprinkling oil spoon to
cam and align the connecting
rod to convex portion of the
cover in assembling.
Connecting rod cover
Assembly:
Insert until the bearing
contacts crankshaft, be
careful not to damage
oil sealing.
Crankshaft
Timing gear
Crankcase cover
Bolt
8×32
17.5 ft-lbs (24 Nm)
Seal
Bearing
Gasket
Crankshaft
Key
Bearing
Governor
Governor
Shaft
Crankcase Cover
Triangular Mark to Face Down
Piston Asm.
Camshaft
8.5 ft-lbs
(12 Nm)
Seal
NOTE: The only internal parts available for this engine are gaskets and seals.
