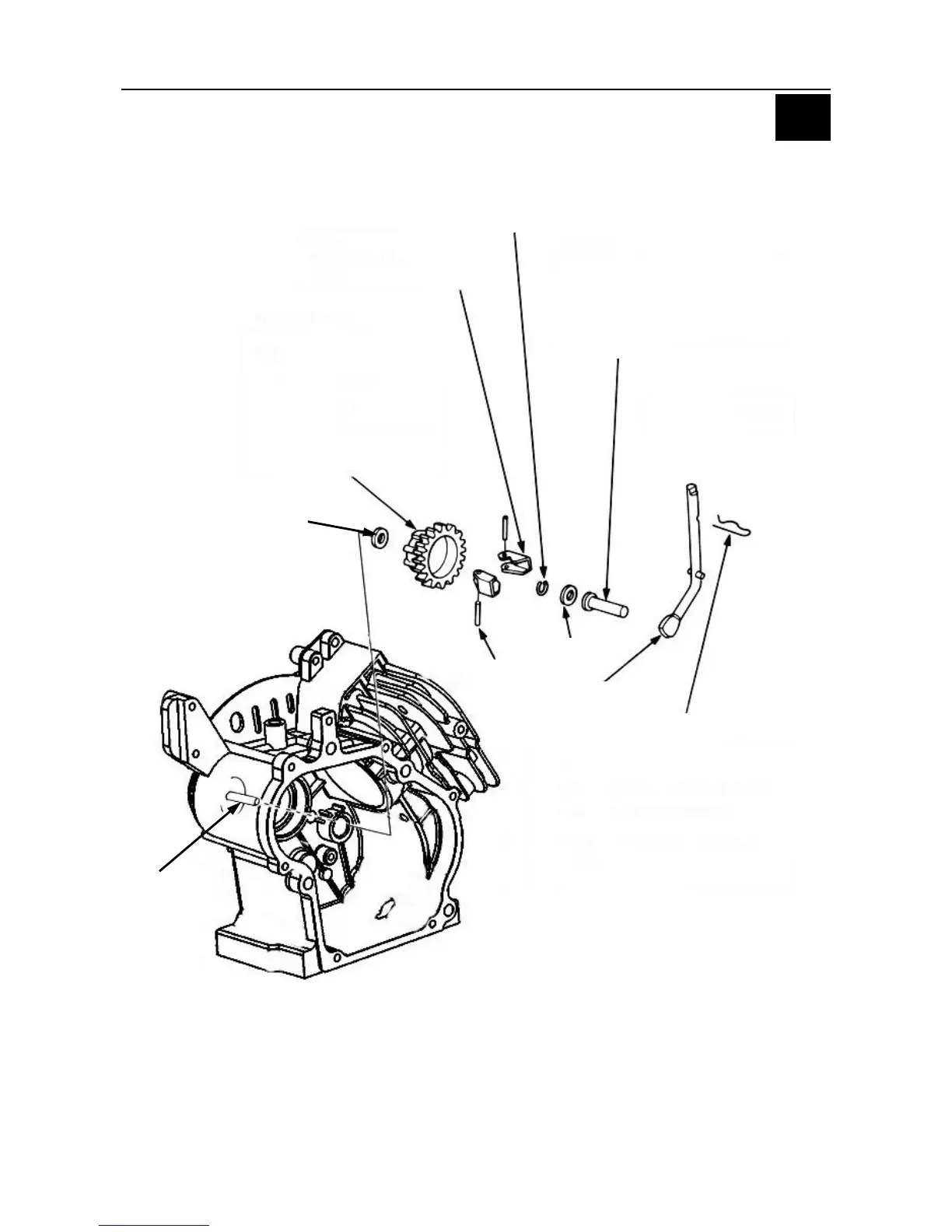

Governor Exploded View
Governor driving gear
Oil sealing
25×41.25×6mm
crankcase
Oil drain bolt
18N·m（1.8kg-m）
Connecting rod bolt (2)
12N·m（1.2kg-m）
Connecting rod cover
Assembly:
Insert until the bearing
contacts crankshaft, be
careful not to damage
oil sealing.
Crankshaft
Timing gear
Crankcase cover
Bolt
8×32
Ball bearing
6205 (2)
Shaft
Washer
Governor Gear
Weight
Clip
Slider
Governor
Shaft
Clip
Washer
Pin
3
NOTE: The only internal parts available for this engine are gaskets and seals.
