Toro LC1P92F User Manual

22

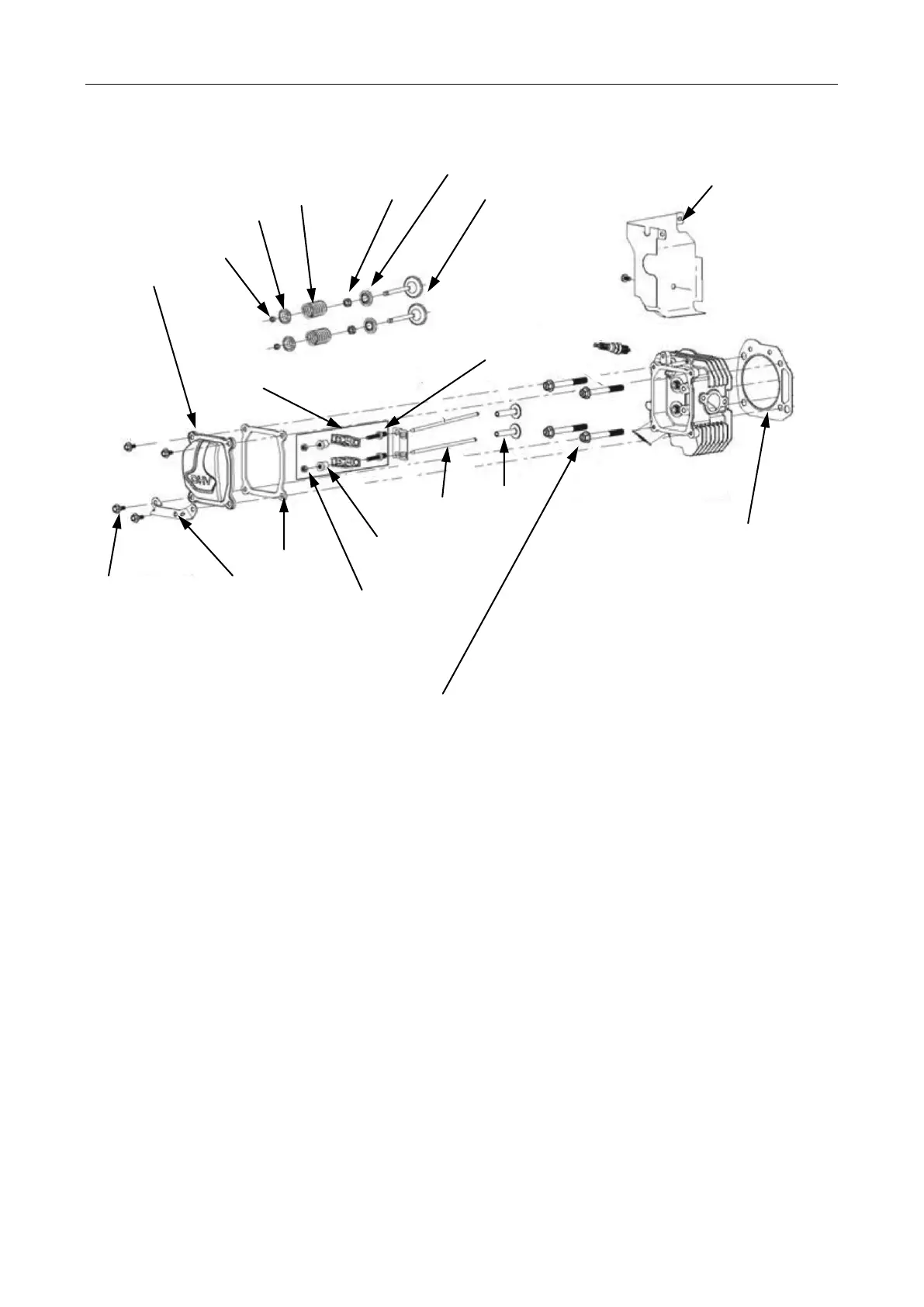

Cylinder Head Exploded View and Service Information
A Valve Cover
B Valve Cover Gasket
C Muffler Bracket
D Intake / Exhaust Valves
E Valve Seal
F Valve Spring
G Valve Spring Retainer
H Valve Keeper
I Rocker Arm Pivot
J Rocker Arm
K Push Rods
L Tappet
M Valve Spring Seat
B
A
7.5 ft-lbs
(10 Nm)
C
D
E
F
G
H
Lock Nut
11 ft-lbs (15 Nm)
I
J
Studs
23 ft-lbs (31 Nm)
K
L
Cylinder Head Gasket
Shield
Cylinder Head Bolt Torque Sequence:
1. Initially Torque the (4) Cylinder Head Bolts in a Crisscross Pattern to 10 ft-lbs (14 Nm).
2. Evenly Torque the (4) Cylinder Head Bolts in a Crisscross Pattern to 40 ft-lbs (54 Nm).
M
