Toro Powervac 51988 User Manual

11
Assembly
Assembly
Flat Head Screwdriver
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modication is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING:
To prevent accidental starting that could cause
serious personal injury, always disconnect the
engine spark plug wire from the spark plug
when assembling parts.
Tools Needed
The following tool (not included or drawn to scale) is
needed for assembly:
Unpacking
This product requires assembly.
 Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing
list are included.
WARNING:
Do not use this product if any parts on the Pack-
ing List are already assembled to your product
when you unpack it. Parts on this list are not as-
sembled to the product by the manufacturer and
require customer installation. Use of a product
that may have been improperly assembled could
result in serious personal injury.
 Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
 Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
 If any parts are damaged or missing, please call
1-866-574-9242 (US) or 1-866-574-9243 (Canada) for
assistance.
Packing List
Blower
Upper Blower Tube
Sweeper Nozzle
Upper and Lower Vacuum Tubes
Vacuum Tube Screws (2)
Vacuum Bag Assembly
Vacuum Bag Adaptor
2-Cycle Engine Lubricant
Operator’s Manual
Note: Read and remove all hang tags and store with your
Operator’s Manual.
WARNING:
If any parts are damaged or missing do not
operate this product until the parts are replaced.
Use of this product with damaged or missing
parts could result in serious personal injury.

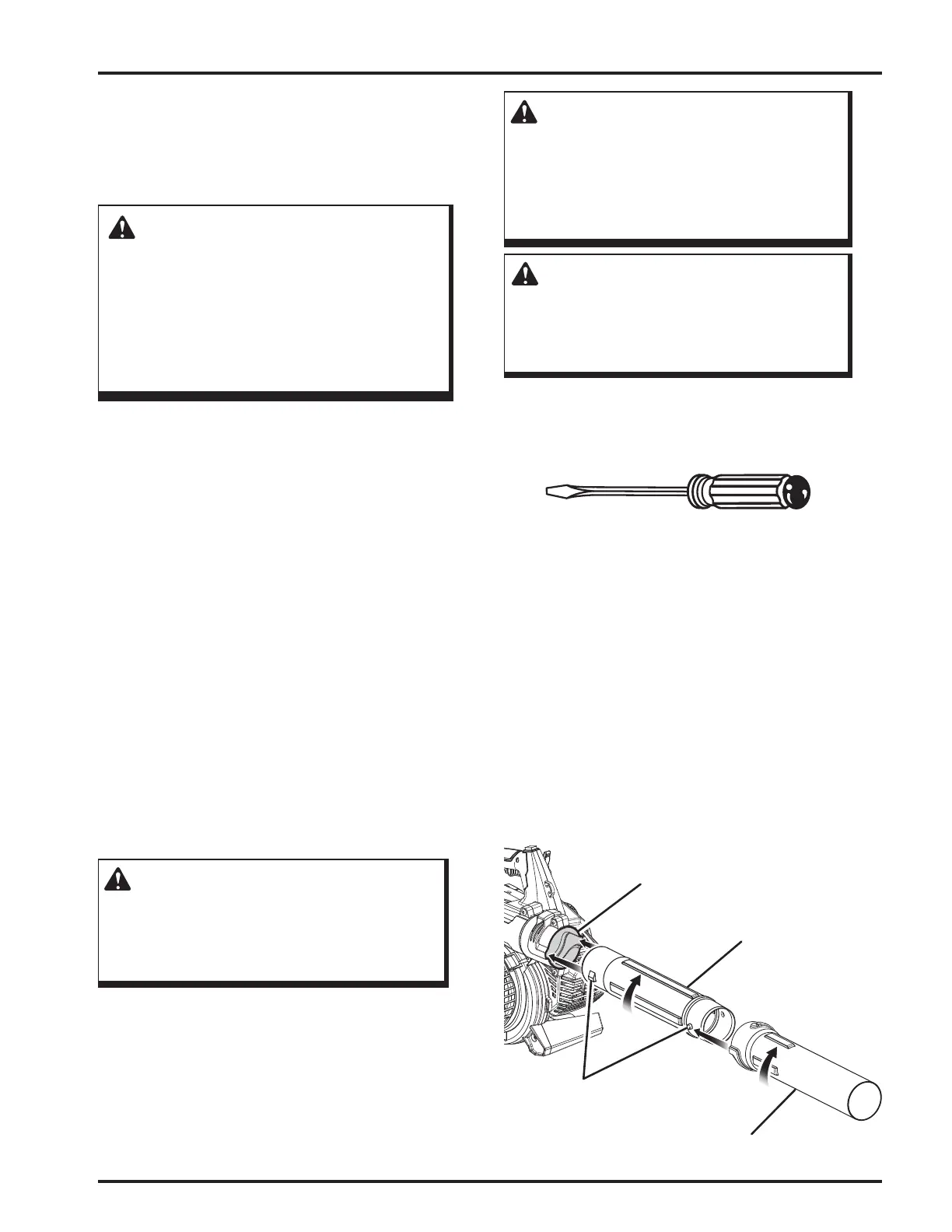

Figure 3
Sweeper
Nozzle
Upper
Blower Tube
Main Housing
Outlet
Raised
Locking Tab
Assembling and Disassembling the
Upper Blower Tube and Sweeper
Nozzle
See Figure 3 - 4.
1. Align raised tabs on main housing to the slots on upper
tube; slide together and tighten securely by twisting.
Check tightness after initial run and retighten if needed.
2. Secure the sweeper nozzle and upper blower tube
together by aligning the raised locking tab on the upper
blower tube with the raised slot on the sweeper nozzle.
3. To disassemble, raise the locking tab with a at head
screwdriver, rotate the tube and nozzle to unlock them
and remove from the main housing outlet.
