Toro Powervac 51988 User Manual

12

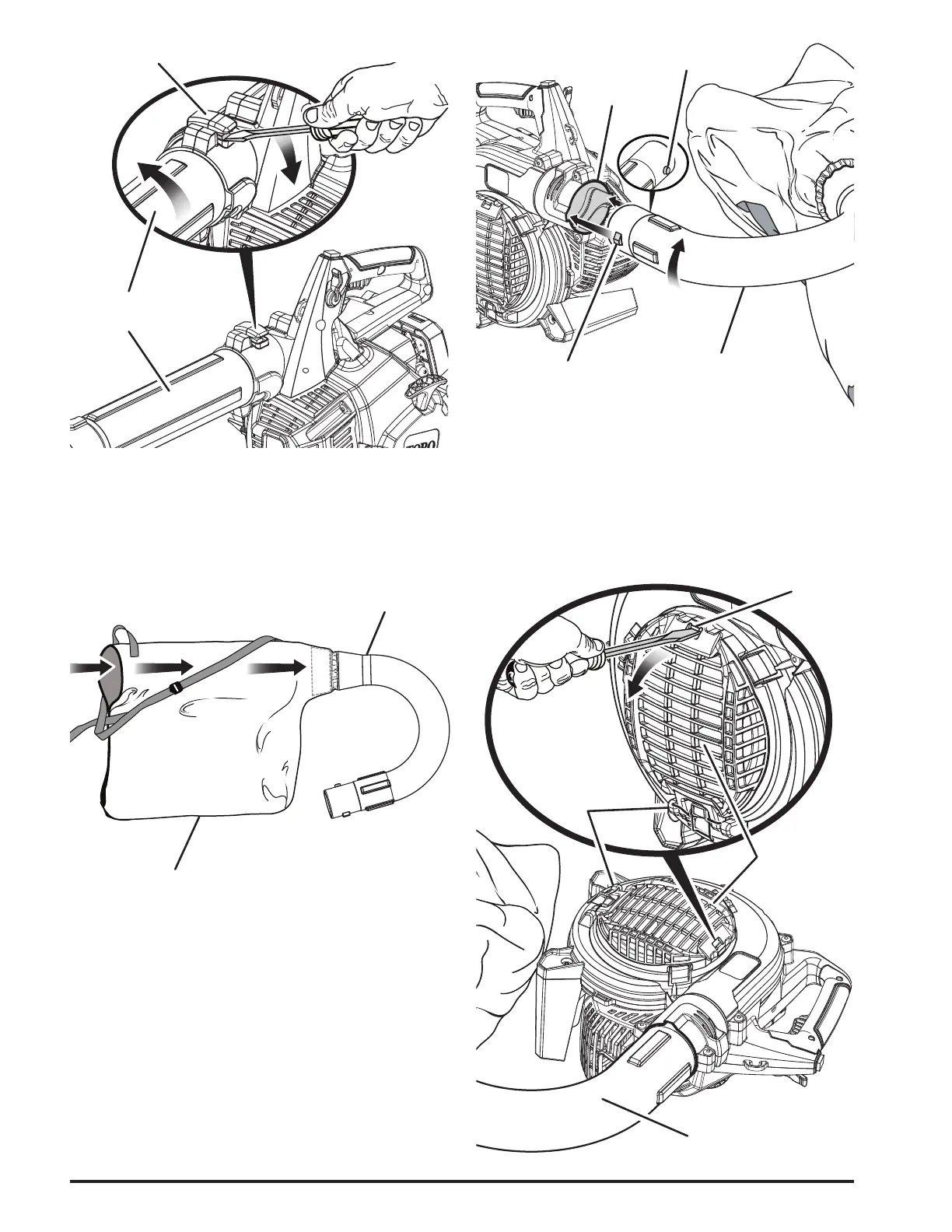

Installing the Vacuum Bag
See Figures 5 - 6.
1. Remove the sweeper nozzle and upper blower tube
from the main housing by twisting and removing from
main housing outlet.
2. Unzip the vacuum bag and place the adaptor inside
as shown. Push the vacuum bag adaptor through the
opening opposite the zipper. The wider end of the adap-
tor will remain on the inside of the vacuum bag when
installed properly.
3. Align the raised slots on the vacuum bag adaptor with
the raised locking tabs on the main housing outlet; push
the bag adaptor onto the housing. Twist to lock into
place.
4. Rotate the vacuum bag until the shoulder strap is up-
right.
5. Make sure the vacuum bag is zipped and closed before
starting the unit.
Assembly
To remove the vacuum bag:
1. Remove the vacuum bag by using a at head screw-
driver to lift the locking tab.
2. Rotate counterclockwise to unlock the adaptor and
remove.
Figure 5
Vacuum Bag Adaptor
Vacuum Bag
Figure 6
Vacuum Bag
Adaptor Installed
to housing
Raised
Locking
Tab
Main
Housing
Outlet
Figure 7
Vacuum
Inlet Door
Vacuum
Door
Hinge
Door Tab
Vacuum Bag
Assembly
Raised
Tab
Figure 4
®
Tab
Blower /
Vacuum Tube
