Toro TimeCutter MX 3450 User Manual

ProductOverview
g027889
3
2
1
4 5
10 9
7
6
8

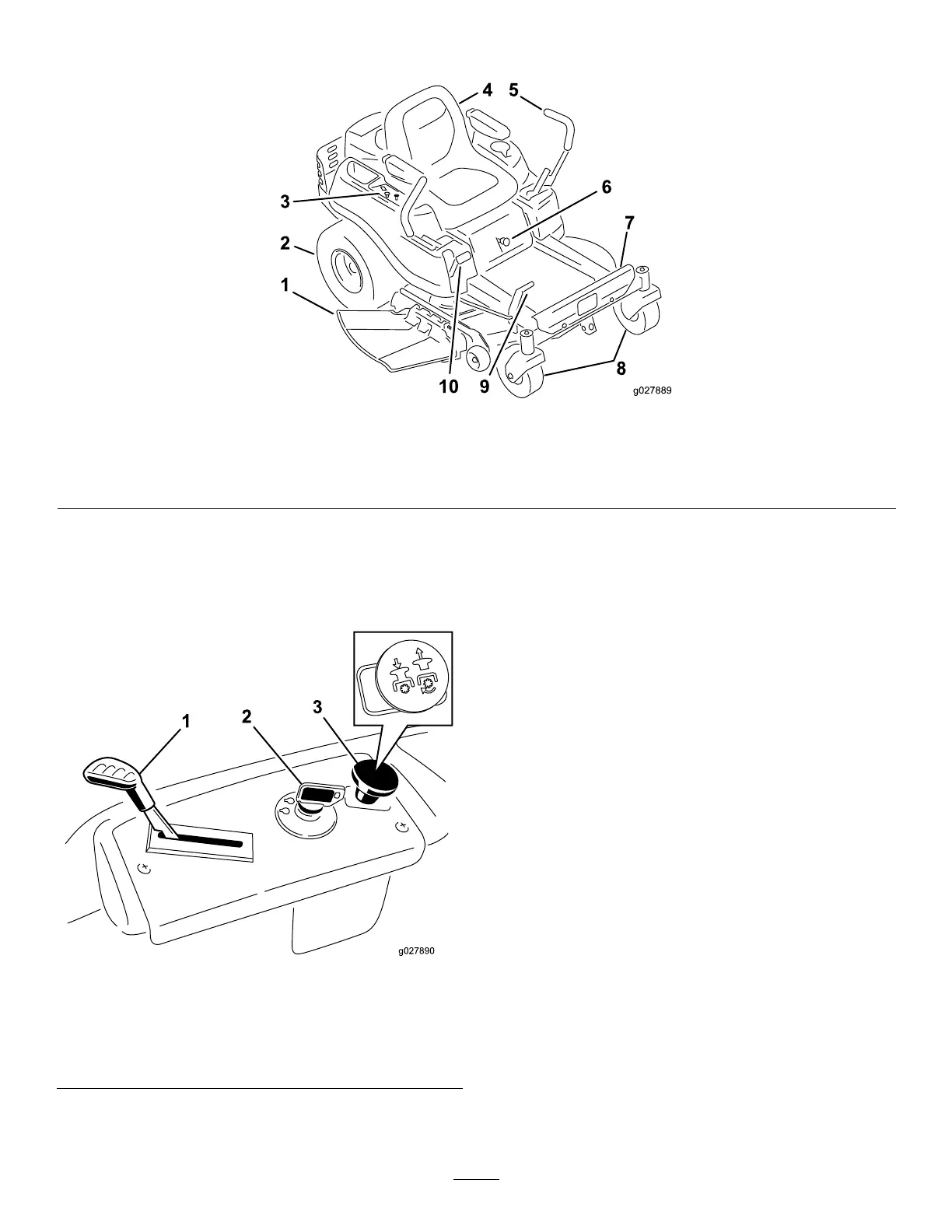

Figure4
1.Deector4.Operatorseat
7.Footrest
10.Heightofcutlever
2.Reardrivewheel5.Motioncontrollevers8.Frontcasterwheel
3.Controlpanel6.SmartSpeed™lever9.Lift-assistlever
Controls
BecomefamiliarwithallofthecontrolsinFigure4and
Figure5beforeyoustarttheengineandoperatethemachine.
Figure5
ControlPanel
1.Throttle3.Bladecontrolswitch
(powertake-off)
2.Ignitionswitch
IgnitionSwitch
Theignitionswitchhas3positions:OFF,RUN,andSTART.
ThekeywillturntoSTARTandmovebacktoRUNupon
release.TurningthekeytotheOFFpositionwillshutoff
theengine;however,alwaysremovethekeywhenleaving
themachinetopreventsomeonefromaccidentallystarting
theengine(Figure5).
Throttle/ChokeControl
Thethrottleandchokearecombinedinto1control
lever.Thethrottlecontrolstheenginespeedandhasa
continuous-variablesettingfromtheSLOWpositiontothe
FASTposition.Engagethechokebymovingtheleverpast
theFASTsettinguntilitstops(Figure5).
Blade-ControlSwitch(PowerTake-off)
Theblade-controlswitchengagesanddisengagespowerto
themowerblades(Figure5).
