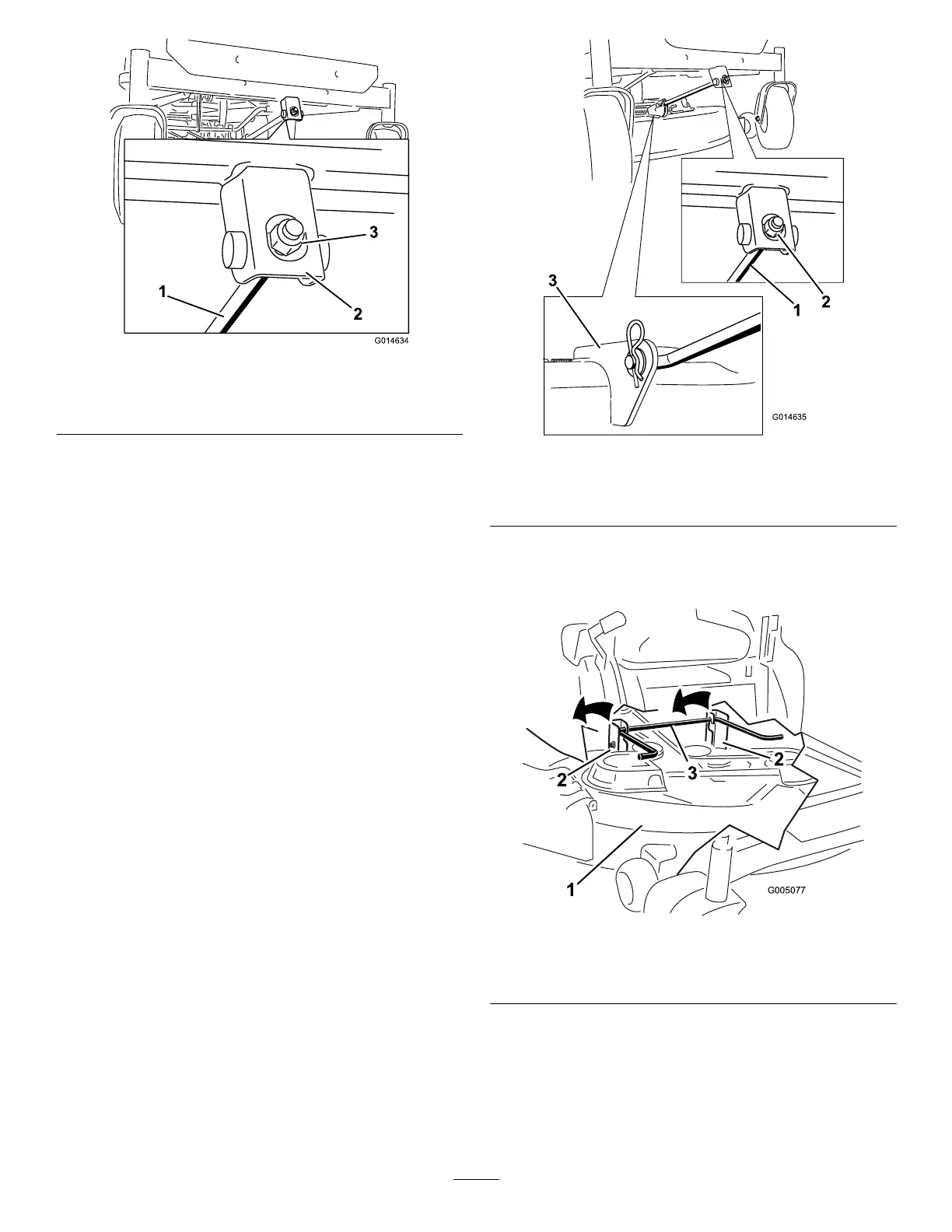

Figure55
1.Adjustingrod3.Locknut
2.Adjustingblock
7.Toraisethefrontofthemower,tightentheadjustment
nut.
8.Tolowerthefrontofthemower,loosentheadjustment
nut.
9.Afteradjustment,checkthefront-to-rearslopeagain.
Continueadjustingthenutuntilthefrontbladetipis
1.6-7.9mm(1/16-5/16inch)lowerthantherearblade
tip(Figure54).
10.Whenthefront-to-rearbladeslopeiscorrectcheckthe
side-to-sidelevelofthemoweragain;refertoLeveling
Side-to-Side(page38).
RemovingtheMower
1.Parkthemachineonalevelsurfaceanddisengagethe
blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK
position,shutofftheengine,removethekey,and
waitforallmovingpartstostopbeforeleavingthe
operatingposition.
3.Lowertheheight-of-cutlevertothelowestposition.
4.Removethehairpincotterfromthefrontsupportrod,
andremovetherodfromthedeckbracket(Figure56).
Note:Carefullylowerthefrontofthemowerdeck
totheground.
G014635
1
2
3
Figure56
1.Frontsupportrod3.Deckbracket
2.Lockingnut
5.Usingthemowerdeckhandles,liftthemowerdeckand
hangerbracketsclearoftherearliftrodandlowerthe
mowercarefullytotheground(Figure57).
2
2
3
G005077
1
2
2
3
Figure57
1.Mowerdeck
3.Rearliftrod
2.Hangerbracket
6.Slidethemowerdeckrearwardtoremovethemower
beltfromtheenginepulley.
7.Slidethemowerdeckoutfromunderneaththe
machine.
Note:Retainallpartsforfutureinstallation.
